Sinotruk 6x4 Heavy Duty Dump Truck Euro 2 With Overturning Body Platform

Categories Heavy Duty Dump Truck
Brand Name: HOWO
Model Number: 6X4
Certification: ISO CCC
Place of Origin: China
MOQ: One set
Price: Negotiable
Payment Terms: L/C, T/T
Supply Ability: 200 Set/Sets per Month
Delivery Time: 30-35 work days
Packaging Details: In nude
Capacity (Load): 21 - 30t
Condition: New
Transmission Type: Manual
Front overhang: 1500mm
Rear overhang: 1859mm
Wheel base: 3225+1500mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Sinotruk 6x4 Heavy Duty Dump Truck Euro 2 With Overturning Body Platform

Sinotruk 6x4 Heavy Duty Dump Truck Euro 2 With Overturning Body Platform


Heavy Duty Dump Truck Sinotruk 6x4 Dump Truck With The Overturning Body Platform


Heavy Duty Dump Truck Sinotruk 6x4 Dump Truck 10 wheels dump truck middle tipping is mainly used for transporting the stuff in bulk which can be scattered (such as sand, soil, minerals, etc.), mainly in mining, construction sites and so on. The 10 wheels 6X4 dump truck with 25-30 tons capacity can meet your needs. All kinds of cargo body structure can be designed and produced according to your request, make it have light curb weight , high rigidity , high loading capacity.


Product Overviews


Product Description of Diesel Forklift truck Sinotruk 6x4 Dump Truck

ModelZZ3257N3447A1 GCW40000kgs Driving Type 6×4
EngineEngine modelWD615.69, Euro II emission standard, 4 stroke injection diesel engine,
6 cylinder in-line with water cooling, turbo-charging & inter cooling, mechanical high pressure oil pump system
Maximum output336PS (247kW) at 2200 rpm
Maximum torque1350Nm at 1100-1600rpm
Bore126mm Stroke: 130mm
Displacement9.726L
Compression ratio17.5:1
Specific fuel consumption≤198g/kWh
Engine oil filling quantity23L
Air compressorsWABCO Twin cylinders air compressors;
Cooling system filling quantity
(long-term filling)
40L
ClutchSINOTRUK’s 430C diaphragm spring clutch, hydraulically operating with air assistance
TransmissionTransmission, model HW19710, 10 forward and 2 reverse
Ratio:14.28; 10.62; 7.87; 5.88; 4.38; 3.27; 2.43; 1.80; 1.34; 1.00; 13.91/3.18(R)
Propeller ShaftDouble universal joint propeller shaft with gear-shaped coupling flange
Front AxleNew HF9 series, with drum brake system
Steering with double T-cross section beam
Rear AxleHC16 pressed axle housing, single reduction and differential locks between axles; with drum brake system.
Ratio: 5.73
ChassisFrame:High-strength U-profile frame, all cold riveted cross members and reinforced subframe
Front suspension:semi-elliptic leaf springs with hydraulic telescopic double-action shock absorbers and stabilizer
Rear suspension:semi-elliptic leaf springs and bogie springs
Spare wheel carrier:with one spare wheel

Steering
ZF8098, hydraulic steering with power assistance
Ratio: 22.2-26.2:1
Braking SystemFront and rear drum brake, four-circuit protection valve
Service brakedual circuit compressed air brake
Parking Brakespring energy, compressed air operating on rear wheels
Auxiliary brakeengine exhaust brake
Wheel & TypesRims8.5-20,10 hole-steel
Types12.00R20, 12.00R22.5, 315/80R22.5, 12.00-20

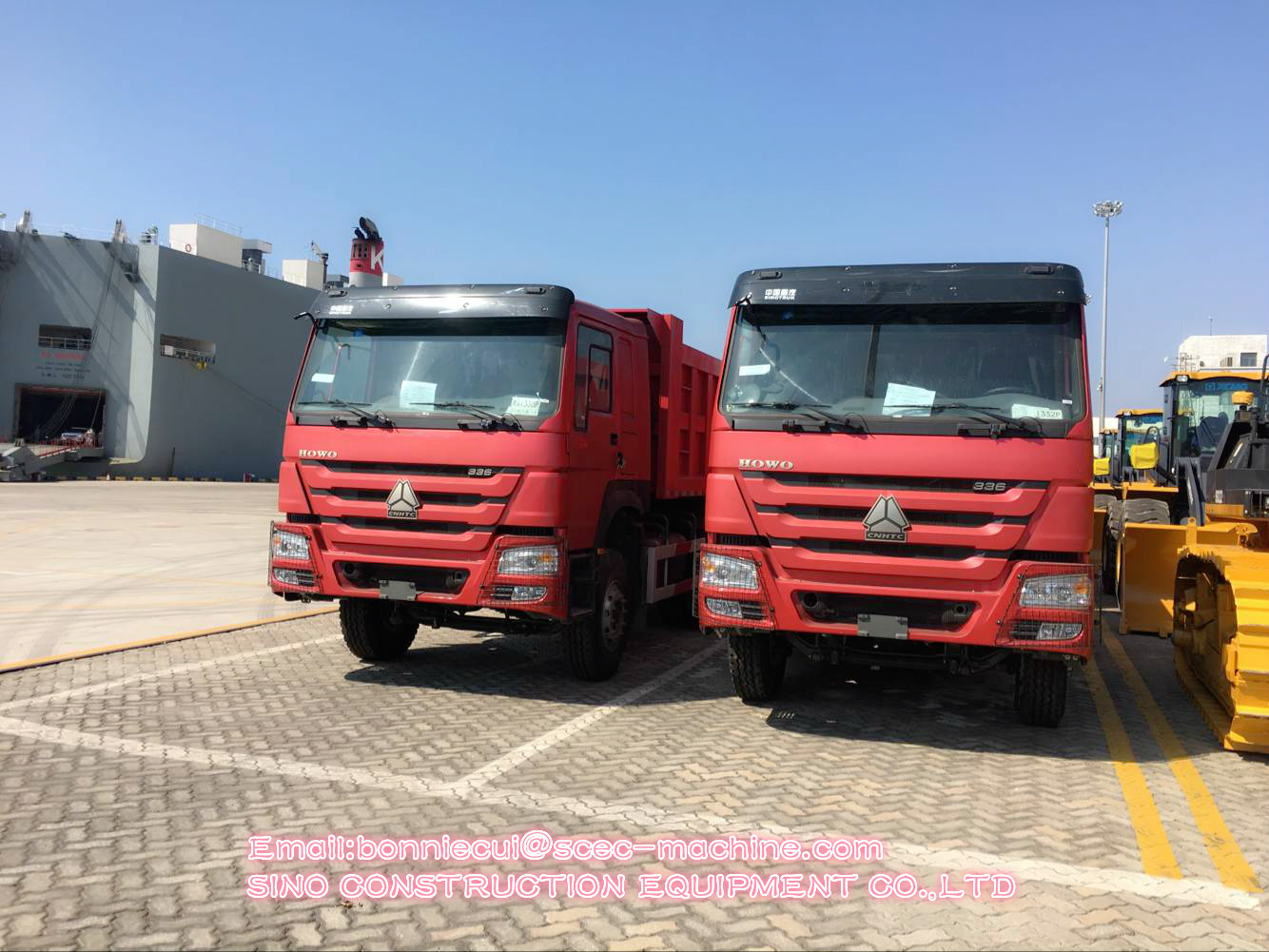

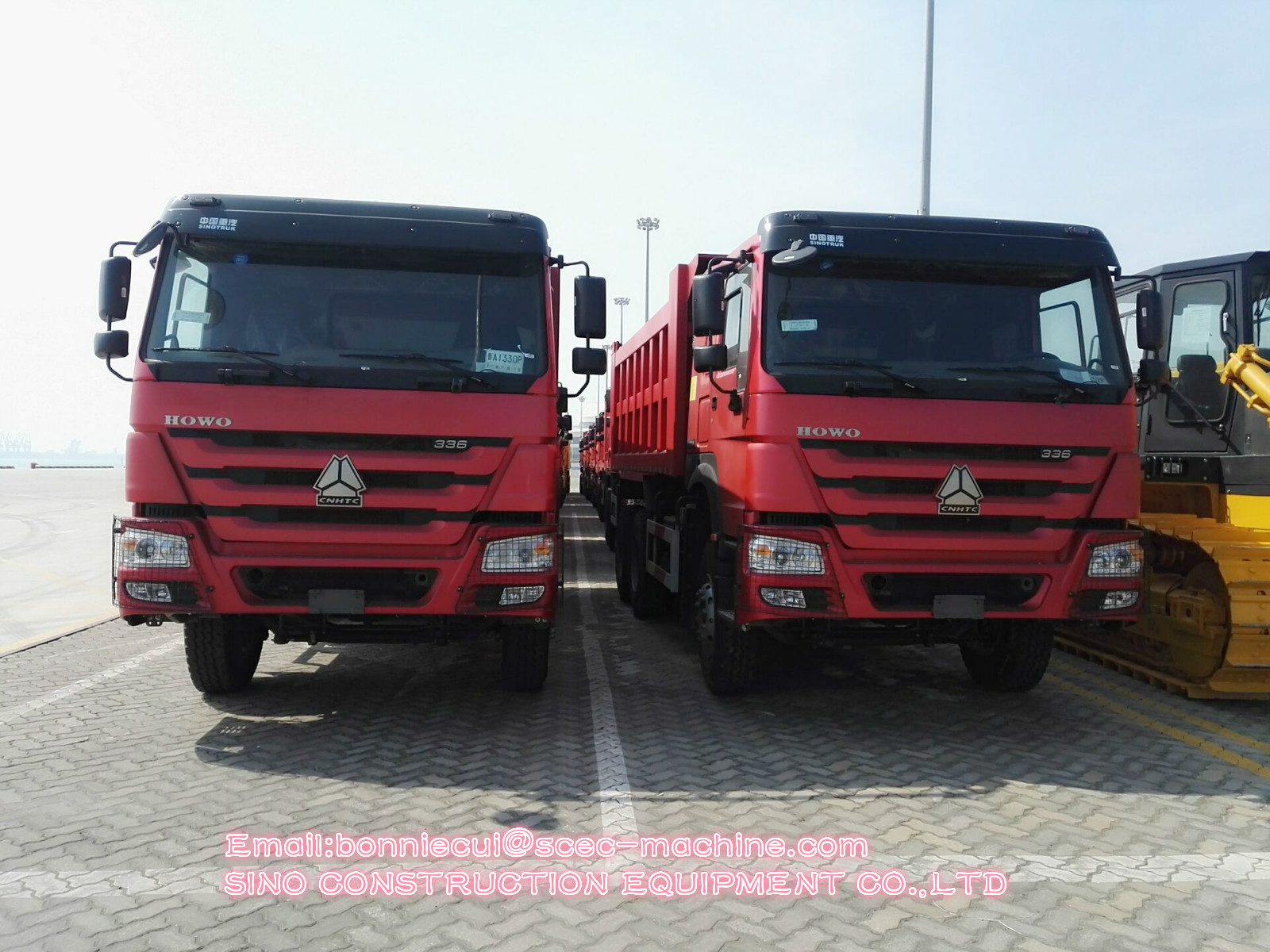

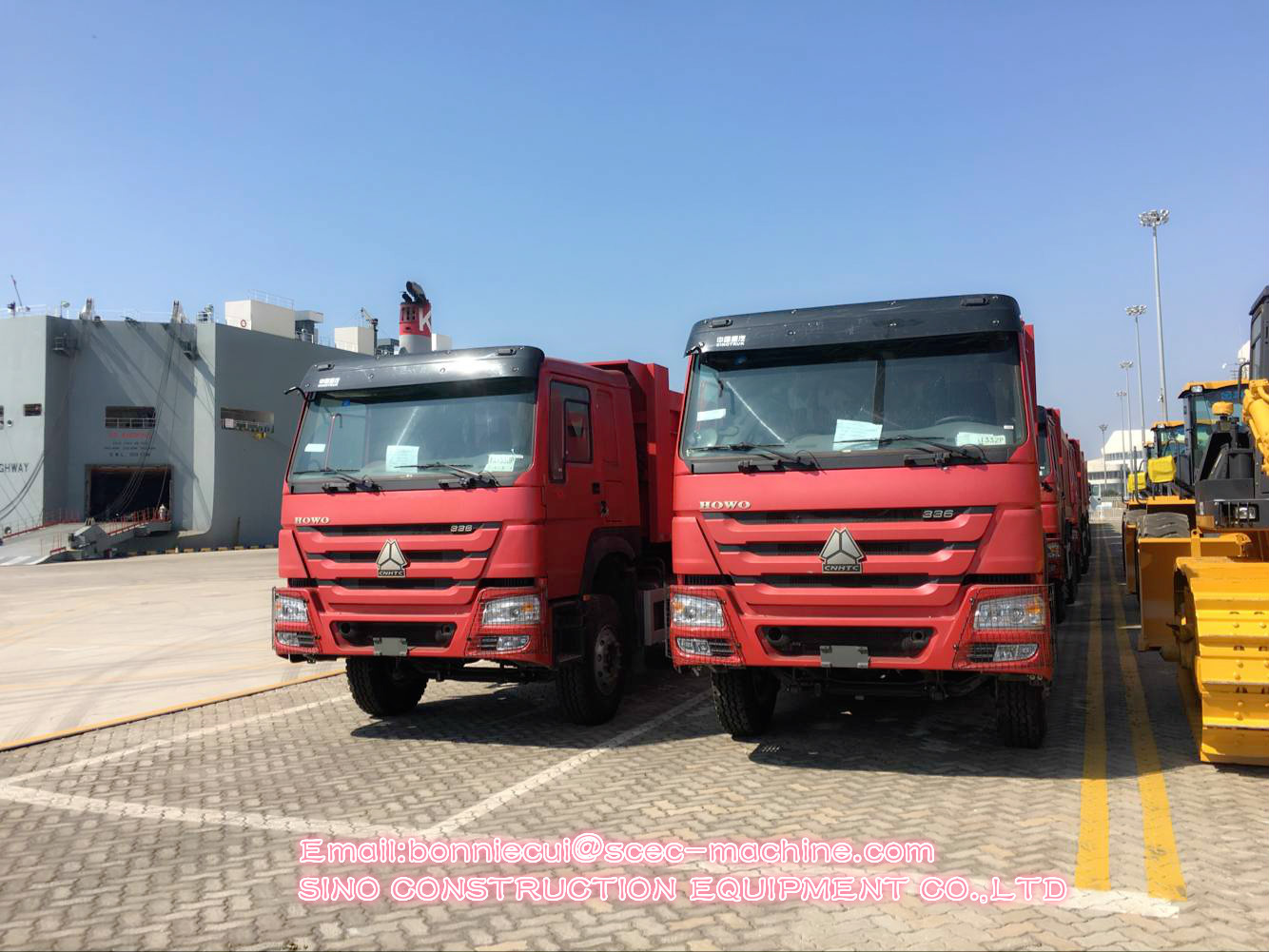

The photo of Diesel Forklift truck Sinotruk 6x4 Dump Truck


FAQ


1. How long it will take to deliver the products after I pay for it?
Above delivery time is 26 days.

2. What is the payment term?

Our Payment: T/T, L/C, etc.

3. How long is the warranty period of your equipment’s?
1 year.

4. What are your main products?

Counterbalanced electric forklift, electric pallet stacker, electric pallet truck, electric reach truck, electric tow tractor, order picker.


5. Can you customize the product?
Yes, we are a professional storage equipment company integrating design, production and sales, have a very professional team of designers and technical engineers, can customize the equipment according to your requirements.

6.How about the quality of your products?

We have a professional quality control department to monitor the whole production process; have CE,ISO9001 certification; provide online support at any time.
