length xwidth 1000*500 Hardness 85 High Density Polyurethane Board

High quality Resin tooling board used for mould on the CNC machine

We are manufacturer of Resin Wood/ CNC Tooling Boards are used to make sole mould pattern, Automobile Designs on the CNC machine. Our product is high quality with very competitive in China. If you are interesed in it, just feel free to contact us any time, we can send the free samples for you!

Resin tooling board
Physical performance	Testing standard	5166
Thermal expansivity (1/K)	ISO11359-1	44 x 10-6
Heat distortion temperature (℃)	(ISO 75)℃	110
Hardness(Shore D)	(ISO 868)Shore D	89
Compressive strength(N/mm2)	(ISO 604)Mpa	120
bending strength(N/mm2)	(ISO 178)Mpa	80
Density(g/cm3)	(ISO 1183)g/cm3	1.7
Color	Make as request	Pink/ Brown/ white/ yellow
Sheet size (mm)	Also can make the special size as the customer request	680×430×30/50/75/100
		690×440×30/50/75/100
		700×450×30/50/75/100
		700×500×30/50/75/100
		750×500×30/50/75/100
		1000×500×30/50/75/100
		1500×500×50/75/100

KEY PROPERTIES

1. Good styrene resistance

2. High compressive modulus

3. Good amine resistance

4. Very good compressive strength

5. Processing and No dust

6) Good abrasion resistance

7) Resistant to dry ice cleaning

USE

1. Checking fixtures for metal par

2. Models and molds for polyester applications

3. Models and molds for composites applications

4. Hammer tools

5. Vacuum forming tools

6. Foundry models

7. Foundry pattern plates and core boxes

8. Car fixture

Product Tags:

cnc Polyurethane Board

1000*500 Polyurethane tooling Board

length xwidth 1000*500 Hardness 85 High Density Polyurethane Board

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Yongzhou Lihong New Material Co.，Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Epoxy Tooling Board
Brand Name:	LH-tool®
Model Number:	LH5166
Certification:	ISO9001:2008 Standard
Place of Origin:	China
MOQ:	10 Sheets
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	3000 Sheets Month
Delivery Time:	15 Days

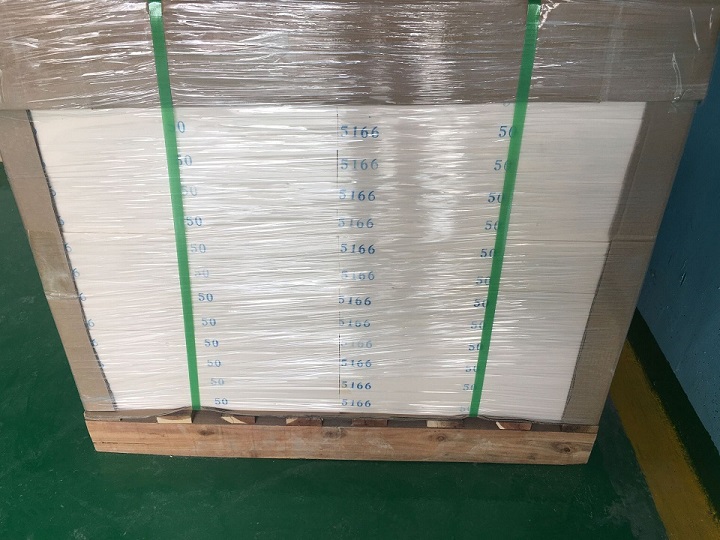

Packaging Details:	Standard Carton Packing
Materials:	Polyurethane
Color:	Beige
Size:	750500 1000500 1500*500^
Density:	1.70
Hardness:	85-90
Thickness:	35mm 50mm 75mm 100mm

Item No	Color	Density	Hardness	Coefficient of thermal expansion	Thermal deformation temperature	Dimension(mm)	Performance and application
		Density	Hardness	Coefficient of thermal expansion	Thermal deformation temperature
		(g/cm3)	(Shore D)	x 10-6 K-1	(°C)
LH-Tool®SB-0351	Apricot	0.35	30-40	45-50	60-70	1500x500x(50-200)	Fine surface structure Easy to form and process Low dust, styling and design models
LH-Tool®SB-0470	Apricot	0.47	40-50	60-65	60-70	1500x500x(50-200)	Very good surface structure Easy to process molding models Master model and data control model
LH-Tool®MB-0600	Brown	0.60	50-55	50-55	70-75	1500x500x(50-200)	Easy to form and process Low heat coefficient Good dimensional stability Master model, model
LH-Tool®MB-0670	Brown	0.67	60-65	50-55	75-80	1500x500x(50-200)	Easy to form and process Low heat coefficient Good dimensional stability, master model, model
LH-Tool®MB-651	Brown	0.70	65-70	40-45	75-80	1500x500x(50-200)	Very fine surface structure Good machinability Good dimensional stability Cubing and data models
LH-Tool®WB-0700	Light Green	0.70	75-78	35-45	140-150	1500x500x(50-200)	Very fine surface structure Easy to process Heat resistance up to 150°C Good dimensional stability Prepreg laying tool Vacuum forming die
LH-Tool®MB-460	Brown	0.77	68-73	30-35	75-85	1500x500x(50/75/100)	Stable size, good processing performance, main mold, fixture, sand casting ,Tire mould
LH-Tool®WB-0801	Light Gray	0.80	68-73	45-50	85-90	1500x500x(35/50/75/100)	Fine surface structure Good dimensional stability Good compressive and bending strength Master model, model Fixtures and jigs Vacuum forming tool
LH-Tool®MB-950	Brown	0.98	78-82	20-30	190-200	1500x500x(50/75/100)	Prepreg lay-up tooling, vacuum forming, core box mold, high temperature environment application
LH-Tool®MB-5100	Beige	1.0	75-80	30-35	75-85	1500x500x(50/75/100)	Low expansion coefficient, suitable for benchmark models, automotive fixtures, composite molds, hot pressing.
LH-Tool®MB-5120	Beige	1.20	80-82	35-40	75-85	1000x500x(50/75/100) 1500x500x(50/75/100)	Low expansion coefficient, suitable for benchmark models, automotive fixtures, composite molds, hot pressing.
LH-Tool®MB-5112	Green	1.20	80-85	30-35	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping die, metal forming die and gage
LH-tool®WB-1404	Olive Green	1.40	85-90	55-55	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, gage
LH-tool®WB-1460	Green	1.46	80-85	60-65	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	Stable size, high surface density, good toughness, suitable for sheet metal stamping inspection system mold, mold
LH-Tool®MB470	Dark Gray	1.70	85-90	45-50	100-125	750x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, gage
LH-Tool®MB470	Dark Gray	1.70	85-90	45-50	100-125	750x500x(50/75/100) 1000x500x(50/75/100)
LH-Tool®MB5166	Beige	1.67	85-90	45-50	75-85	750x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, test fixture
LH-Tool®MB5166	Beige	1.67	85-90	45-50	75-85	750x500x(50/75/100) 1000x500x(50/75/100)
LH-Tool®0500A/B	Brown	0.50	50-55	50-60	60-70	5kg/bag	Modeling paste, suitable for reference model, car master model, car fixture and so on
LH-Tool®5200A/B	Brown	0.7-0.8	60-70	45-50	70-75	10kg/bag	Modeling paste, suitable for reference model, car master model, car fixture and so on
