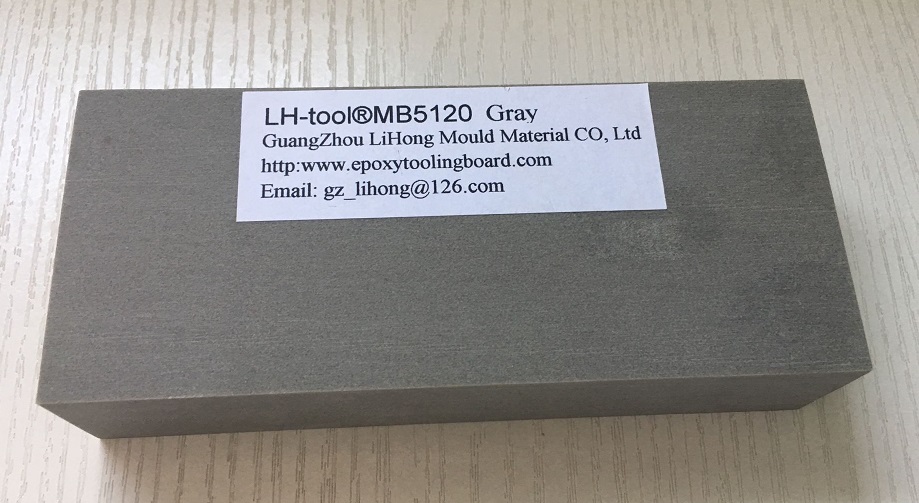

1.25 Medium Density Gray Epoxy Tooling Board Checking Fixtures For Metal

High quality Resin tooling board used for car mould pattern on the CNC machine

We are manufacturer of Resin Wood/ CNC Tooling Boards are used to make sole mould pattern, Automobile Designs on the CNC machine. Our product is high quality with very competitive in China. If you are interesed in it, just feel free to contact us any time, we can send the free samples for you!

Resin tooling board
Physical performance	Testing standard	A-620B
Thermal expansivity (1/K)	11359-1	43 x 10-6
Heat distortion temperature (℃)	(ISO 75)℃	80
Hardness(Shore D)	(ISO 868)Shore D	84
Compressive strength(N/mm2)	(ISO 604)Mpa	68
bending strength(N/mm2)	(ISO 178)Mpa	46
Density(g/cm3)	(ISO 1183)g/cm3	1.25
Color	Make as request	grey
Sheet size (mm)	Also can make the special size as the customer request	680×430×30/50/75/100
		690×440×30/50/75/100
		700×450×30/50/75/100
		700×500×30/50/75/100
		750×500×30/50/75/100
		1000×500×30/50/75/100
		1500×500×50/75/100

Introduction

Lihong Tooling boards take the place of wood and metal in models, patterns, molds, jigs and fixtures.
They are lighter and more economical than steel and aluminum. They also do not suffer from the grain and poor dimensional stability of wood.
Tooling boards can be bonded together to form larger blanks and large blocks from which models or tools can be CNC-machined. The boards are easily mechanically workable with low dust formation.
Tooling boards are useful for creating durable, reusable tools, prototypes, models and patterns with a CNC machine for use in the motor sport and automotive industries. Selecting the most fit for purpose tooling board will reduce residual particles for easy cleanup, have excellent dimensional stability and maintain tolerances even when exposed to temperature and humidity extremes.
Modeling board,tooling borad,epoxy tooling boards and polyurethane tooling baords are heavily used in the automotive industry as well as other industries where prototyping and modeling work is required.
LihongTooling board,modeling board, epoxy resin board,PU board, polyurethane tooling board ,which is smiliar to Renshape, NECUMER,RAMPF (RAKU-TOOL),AXSON (LAB),HUNTSMAN etc.
We are also specialists in dimensional checking fixtures to control the manufacturing process of all types of parts of the industrial sector, more particularly the automotive sector. All our production process - design, manufacture and certification - is done in-house, to control it perfectly.
Polyurethane tooling boards,epoxy tooling boards or urethane tooling boards are for compression molding, thermoforming, vacuum forming, rotational molding, industrial blow molding, resin transfer molding, carpet & metal stamping and more.
Our full range of in-house capabilities including patterns, models, cast tooling, finishing, CNC machining as well as design and engineering provide our customers with a complete, one-stop solution for their tooling needs.

Description

Density:(g/cm³):	～ISO1183-1:2012	1.25
Hardness(Shore D):	～ISO868:2003	80-85
Compressive Strength(N/mm²):	～ISO604:2002	70-80
Temperature Resistance(°C):	～ISO075-1-2013	80-85
Coefficient of Thermal Expansion:	～ISO11359-1-2014	50-55
Flexural Strength(N/mm²):	～ISO178-2010	90-100
Dimension(mm)		(LW)150050050/75/100 (LW)75050050/75/100

KEY PROPERTIES

1. Easy to mill

2.Low wear of milling fools

3.Very good amine resistance

4.Very good abrasion resisance

USE

1.Foundry models

2..Hammer foolls

3.Checking fixtures for metal

Product Tags:

foam board for model making

cnc tooling board

1.25 Medium Density Gray Epoxy Tooling Board Checking Fixtures For Metal

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Yongzhou Lihong New Material Co.，Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Epoxy Tooling Board
Brand Name:	LH-tool®
Model Number:	MB5120
Certification:	ISO9001:2008 Standard
Place of Origin:	China
MOQ:	10 Sheets
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	3000 Sheets Month
Delivery Time:	15 Days
Packaging Details:	Standard Carton Packing
Materials:	Polyurethane
Color:	Gray
Size:	750500 1000500
Density:	1.25
Hardness:	80-85
Thickness:	35mm 50mm 75mm 100mm

Item No	Color	Density	Hardness	Coefficient of thermal expansion	Thermal deformation temperature	Dimension(mm)	Performance and application
		Density	Hardness	Coefficient of thermal expansion	Thermal deformation temperature
		(g/cm3)	(Shore D)	x 10-6 K-1	(°C)
LH-Tool®SB-0351	Apricot	0.35	30-40	45-50	60-70	1500x500x(50-200)	Fine surface structure Easy to form and process Low dust, styling and design models
LH-Tool®SB-0470	Apricot	0.47	40-50	60-65	60-70	1500x500x(50-200)	Very good surface structure Easy to process molding models Master model and data control model
LH-Tool®MB-0600	Brown	0.60	50-55	50-55	70-75	1500x500x(50-200)	Easy to form and process Low heat coefficient Good dimensional stability Master model, model
LH-Tool®MB-0670	Brown	0.67	60-65	50-55	75-80	1500x500x(50-200)	Easy to form and process Low heat coefficient Good dimensional stability, master model, model
LH-Tool®MB-651	Brown	0.70	65-70	40-45	75-80	1500x500x(50-200)	Very fine surface structure Good machinability Good dimensional stability Cubing and data models
LH-Tool®WB-0700	Light Green	0.70	75-78	35-45	140-150	1500x500x(50-200)	Very fine surface structure Easy to process Heat resistance up to 150°C Good dimensional stability Prepreg laying tool Vacuum forming die
LH-Tool®MB-460	Brown	0.77	68-73	30-35	75-85	1500x500x(50/75/100)	Stable size, good processing performance, main mold, fixture, sand casting ,Tire mould
LH-Tool®WB-0801	Light Gray	0.80	68-73	45-50	85-90	1500x500x(35/50/75/100)	Fine surface structure Good dimensional stability Good compressive and bending strength Master model, model Fixtures and jigs Vacuum forming tool
LH-Tool®MB-950	Brown	0.98	78-82	20-30	190-200	1500x500x(50/75/100)	Prepreg lay-up tooling, vacuum forming, core box mold, high temperature environment application
LH-Tool®MB-5100	Beige	1.0	75-80	30-35	75-85	1500x500x(50/75/100)	Low expansion coefficient, suitable for benchmark models, automotive fixtures, composite molds, hot pressing.
LH-Tool®MB-5120	Beige	1.20	80-82	35-40	75-85	1000x500x(50/75/100) 1500x500x(50/75/100)	Low expansion coefficient, suitable for benchmark models, automotive fixtures, composite molds, hot pressing.
LH-Tool®MB-5112	Green	1.20	80-85	30-35	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping die, metal forming die and gage
LH-tool®WB-1404	Olive Green	1.40	85-90	55-55	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, gage
LH-tool®WB-1460	Green	1.46	80-85	60-65	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	Stable size, high surface density, good toughness, suitable for sheet metal stamping inspection system mold, mold
LH-Tool®MB470	Dark Gray	1.70	85-90	45-50	100-125	750x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, gage
LH-Tool®MB470	Dark Gray	1.70	85-90	45-50	100-125	750x500x(50/75/100) 1000x500x(50/75/100)
LH-Tool®MB5166	Beige	1.67	85-90	45-50	75-85	750x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, test fixture
LH-Tool®MB5166	Beige	1.67	85-90	45-50	75-85	750x500x(50/75/100) 1000x500x(50/75/100)
LH-Tool®0500A/B	Brown	0.50	50-55	50-60	60-70	5kg/bag	Modeling paste, suitable for reference model, car master model, car fixture and so on
LH-Tool®5200A/B	Brown	0.7-0.8	60-70	45-50	70-75	10kg/bag	Modeling paste, suitable for reference model, car master model, car fixture and so on
