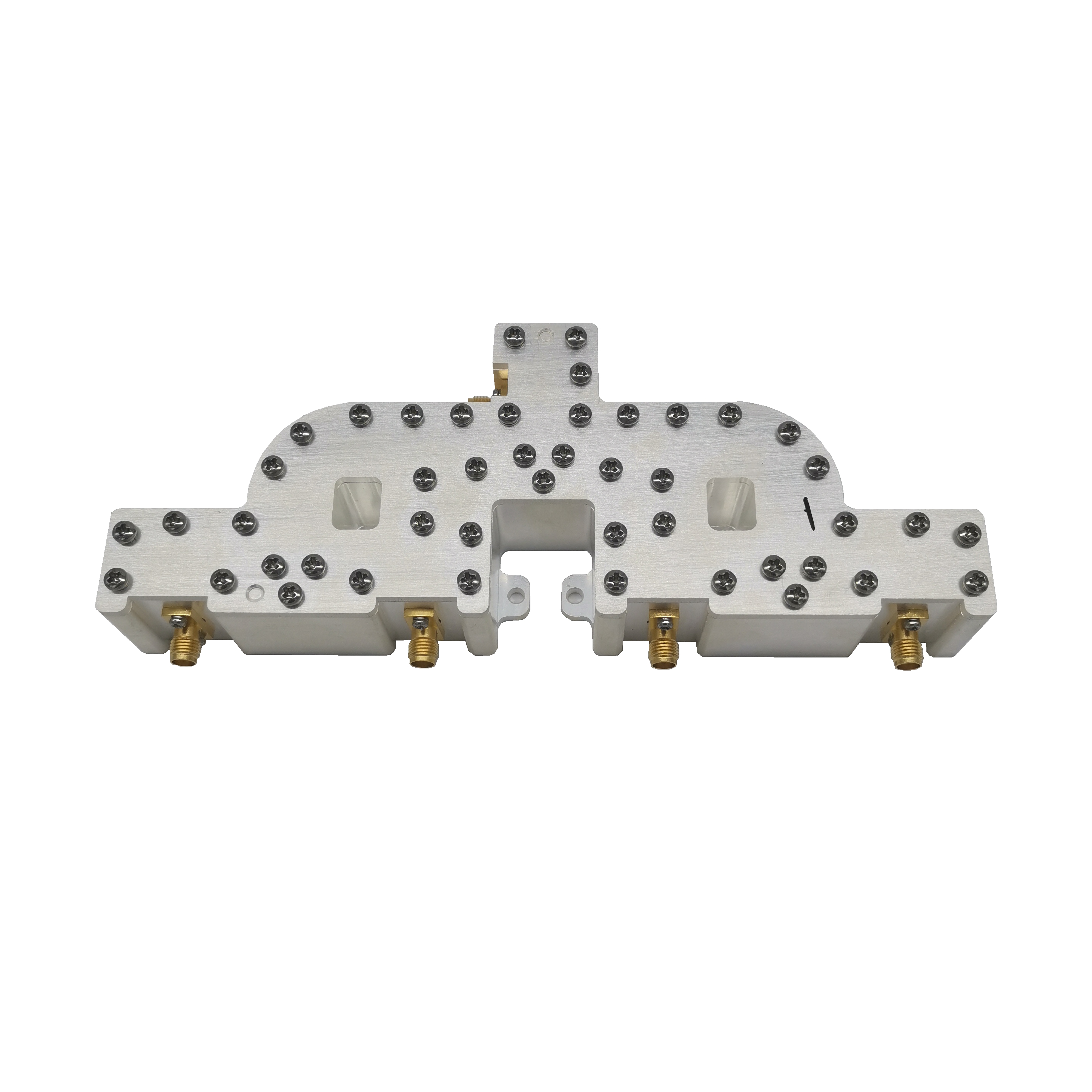

| Categories | Waveguide Power Divider |
|---|---|
| Brand Name: | Sinoscite |
| Model Number: | SNSD221 |
| Certification: | ISO 9001:2015 |
| Place of Origin: | Sichuan, China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 Piece per month |
| Delivery Time: | Less than 4weeks |
| Packaging Details: | Standard exporting carton , each product individually wrapped, high density foam protection professional packing. |
| Operating frequency: | 8.5-10.5GHz |
| VSWR: | ≤1.3 |
| Insertion Loss: | ≤0.4dB |
| Material: | Aluminum material, silver-plating |
| Place of Origin | Sichuan, China |
| Brand Name | Sinoscite |
| Material | Aluminum material, silver-plating |
| Applications | Power distribution and synthesis, microwave measurement,etc |
| Features | low insertion loss, high power capacity, excellent isolation |
| Working bandwidth | 8.5-10.5GHz |
| VSWR | <1.3 |
| Insertion loss | <0.4dB |
|
