| Categories | Waveguide Power Divider |
|---|---|
| Brand Name: | Sinoscite |
| Model Number: | SNSD221 |
| Place of Origin: | Sichuan, China |
| MOQ: | 1 Piece |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 2000 Piece per month |
| Delivery Time: | Less than 4weeks |
| Packaging Details: | Standard exporting carton , each product individually wrapped, high density foam protection professional packing. |
| Certification: | ISO 9001:2015 |
| operating frequency: | 26.3-40GHz |
| relative bandwidth: | 41% |
| VSWR: | <1.2 |
| Insertion Loss: | <0.2dB |
| model: | BJ320 |
| product name: | power divider |
Factory Design LowInsertion Loss Power Divider Customizable 0.5 - 40GHz
1 About waveguide power divider:
Waveguide Power divider is a kind ofsignificant microwave passive components, which are widely used in microwave equipment, such as phased array radar , antenna feed system and power amplifier. Power divider a passive device commonly used in microwave systems for power distribution or synthesis in reverse. It can also be used as a modulator, diplexer, and mode converter. It is widely used in microwave systems.
2 Product Description:
1.Working bandwidth:30.7~36GHz;
2.V.S.W.R:<1.2;
3.Insertion loss:<0.2dB
4.Output isolation:>19dB
5.Amplitude error:±0.15dB
6.Phase error:±1.6°
7.Size(mm):190*83*46
3 Parameter Sheet
| model | Working Freq.(GHz) | VSWR | Insertion Loss (dB) | Size(mm) | |
| DHE-32 | 2 .6 | 3.95 | 1.2 | 0.2 | 130*302*115 |
| DHE-70 | 5.38 | 8.17 | 1.2 | 0.2 | 130*185*69 |
| DHE-84 | 6.57 | 9.99 | 1.2 | 0.2 | 87*131*48 |
| DHE-120 | 9.84 | 15 | 1.2 | 0.2 | 70*101*38 |
| DHE-180 | 14.5 | 22 | 1.2 | 0.2 | 57*85*31 |
| DHE-260 | 21.7 | 33 | 1.2 | 0.25 | 41*57*22 |
| DHE-320 | 26.3 | 40 | 1.2 | 0.25 | 37*53*20 |
| DHE-400 | 32.9 | 50.1 | 1.3 | 0.25 | 49*73*28 |
| DHE-500 | 39.2 | 59.6 | 1.3 | 0.25 | 49*73*28 |
4 Company's service
1. Professional skills support.
2. OEM services is available.
3. 24 hours you can contact our salesman and engineer.
4. We will try our best to provide support whatever you need and we can do.
5.We have sufficient goods,competitive price,good quality and one year warranty of our goods.
6.W e are a leading manufacturer and exporter in China. We have good service, fast delivery and Express, accept T/T ,Western Union payment terms.
7.OEM & ODM services are offered, for OEM, we can design the packing box and LOGO mark as your require.
8.We have a lot of orders from the United States, Europe and other places every year. Our products are very popular in domestic and foreign.

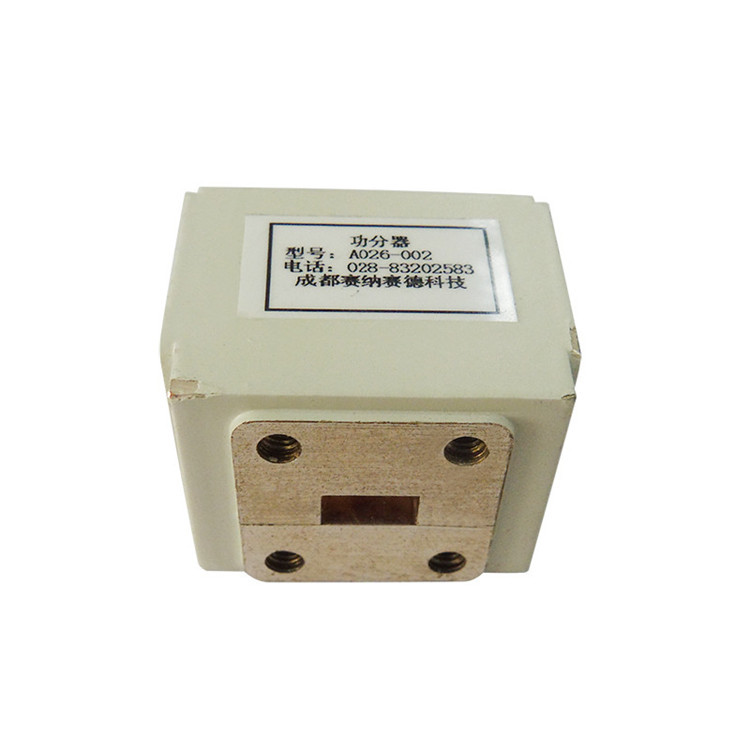

picture show
|
