| Brand Name: | HEIYAN |
| Model Number: | Q12130 |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 15-20days |
| Packaging Details: | Q12130 Beveller Piping Line And Fittings Any Parts Beveling Machine on pallet or wooden case ,as your required |
| Knife wheel diameter: | 1000mm |
| Motor power: | 7.5KW,n=960rpm |
| Bevel type: | single V, double V, U, etc. |
| Knife bracket difference forward speed: | 0,0.1,0.25 mm/r |
| Electric rapid retracting speed: | 175mm/min, manual adjustment 0.18mm/r |
| Effective movement: | 285mm |
| Company Info. |
| SHEAN (CANGZHOU) CORP LTD |
| View Contact Details |
| Product List |

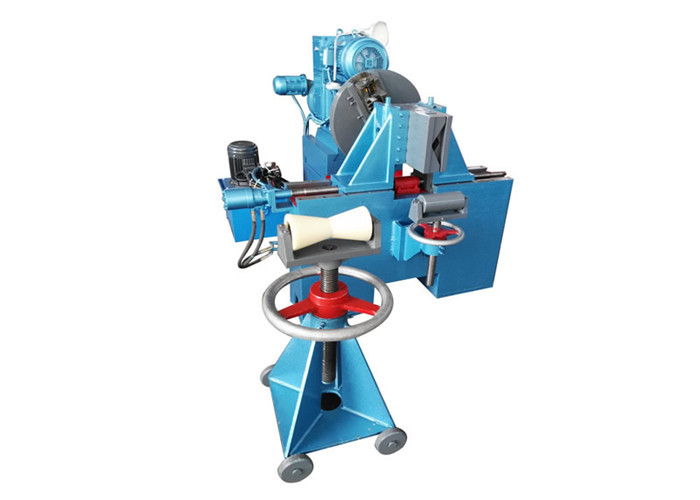

Q12130 Beveller Piping Line And Fittings Any Parts Beveling Machine
Bevel shape: U, x, v and double v
Cutting direction: Radial automatic differential cutting feed or
axial semi-automatic motor cutting feed(inlet frequency); Radial nc
motor cutting feed or axial nc motor cutting feed
Retracting direction: Radial automatic motor retracting or axial
automatic motor retracting(inlet frequency); Radial nc motor
retracting or axial nc motor retracting
Driven by: Motor
Clamping system: Work piece is clamped by hydraulic cylinder &
centering automatically
Bracket system: Screw lifting adjustable
Rev of the principal axis: Stepless speed control & variable
frequency
Axial displacement: 80mm(principle axis) 100mm(machine head);
150mm(principal axis), 300mm (machine head)
Bevel angle of tool rest: 0° ~45°
Widthwise displacement: ± 50mm; ± 100mm
Control system: PLC controlling; CNC controlling
Automatic aligning: At the end of beveling machine conveying system
equipped with lifting device could be provided if necessary to
adjust automatically the center elevation of the elbow, so as to
bevel the elbows with different diameter
Conveying system: End beveling vf conveying systems driven by motor
are equipped at front and rear sides of the beveling machine if
necessary.
Pipe Dia applicable: | DN50-400 (φ60-426mm) | DN100-600(φ114-610 ) | DN200-800 (φ219-813 mm) |
Pipe wall thickness applicable: | 4-90mm | 6-180mm | 6-180mm |
Beveling speed: | ≤ 5min /pipe bevel (dn200 sch40) | ≤ 5min /pipe bevel (dn200 sch40) | ≤ 5min /pipe bevel (dn200 sch40) |
Bevel angle of tool rest: | 0° ~45° | 0° ~45° | 0° ~45° |

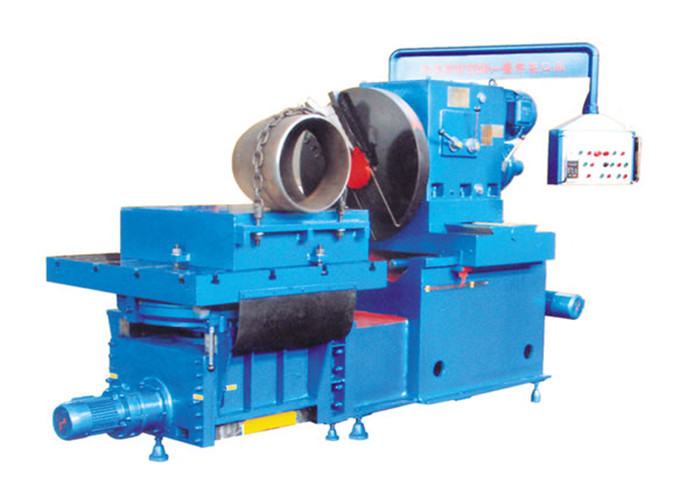

Fixed-Type High Speed Numerical Control Eblow Beveling Machine
CNC Elbow BEVELING MACHINE(PLC)
Performance features
On-line performance: Good(designed as per the on-line equipment of
the production line)
Beveling speed: ≤ 5min /pipe bevel (dn200 sch40)
Bevel cutting: Cutting a pipe with other equipment such as band saw
and then machining each bevel.
Bevel quality: Very good
Application: For machining the u or v shape bevels for numbers of
pipe-fittings with heavy wall thickness
Technical parameters
Elbow diameter applicable: Dn50-400(Φ 57-426)/ dn100-600(Φ
114-610)/ dn200-800(Φ 219-813);
Elbow wall thickness applicable: 4-90mm; 6-180mm
Materials applicable: Carbon steel, alloy steel, stainless steel
and cryogenic steel, ect.
|
|
Q1245 Table Type Pipe Bevel Machine , Electric Pipe Beveler Cutter Diameter 450mm
Q121300 Compact Pipe Beveling Machine Butt Welding Chamfering Machine
U Bevel Type Automatic Beveling Machine , Tube Beveling Machine Driven By Motor
U / Single V Bevel Type Pipe Beveling Machine Convenience To Operate
Stainless Steel Pipe Beveling Machine 1140mm Center Height High Efficiency
Q121620 Pipe Beveling Equipment , Automatic Beveling Machine 985mm Effective Movement
Butt Welding Pipe Beveling Machine Φ159mm - Φ800mm Processing Range OD Of Pipe
Q1245 Hydraulic Electric Pipeline Bevel Machine For Pipe End Processing
Q1280-I And II Electric Pipe Beveling Machine 50 - 400mm/r Frequency Control Axial Movement Speed
