| Categories | Pipe Beveling Machine |
|---|---|
| Brand Name: | HEIYAN |
| Model Number: | Q1245 |
| Certification: | ISO9001 |
| Place of Origin: | CHINA |
| MOQ: | 1set |
| Price: | Negotiable |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 15-20days |
| Packaging Details: | Q1245 Hydraulic Electric Beveling Stationary High Speed Pipe End Bevelling Machine on pallet or wooden case ,as your required |
| Motor power: | 7.5KW,n=960rpm |
| Knife bracket difference forward speed: | 0,0.1,0.25 mm/r |
| Processing range od of pipe: | Φ159mm--Φ800mm |
| Bevel type: | single V, double V, U, etc. |
| Frequency control axial movement speed: | 50~400mm/r |
| Electric rapid retracting speed: | 175mm/min, manual adjustment 0.18mm/r |
| Company Info. |
| SHEAN (CANGZHOU) CORP LTD |
| View Contact Details |
| Product List |

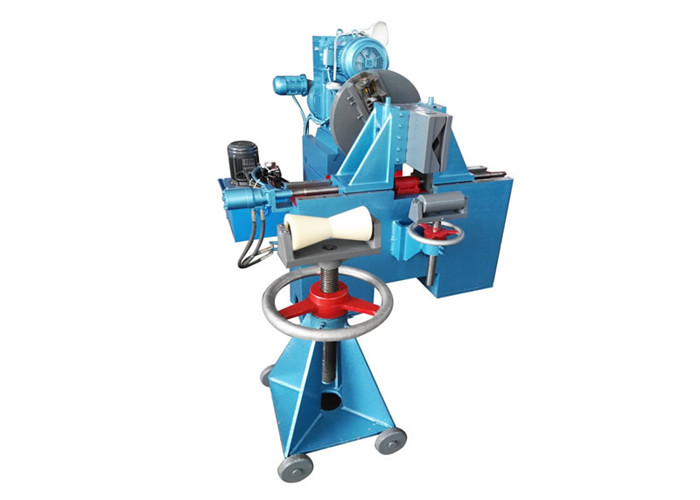

Q1245 Hydraulic Electric Beveling Stationary High Speed Pipe End Bevelling Machine
Machine function:
Electric Beveller suitable for diameter 50-426mm, wall thickness seamless pipe endbeveling of 6-100mm
Chamfering machine is special equipment for pipe end processing,
can chamfer for pipe end outer/inner circle and flat end
processing.
Unique structural design, make compact appearance and easy to operate. The device is powerful, fast cutting, high efficiency.
New design machine clip cutter, accurate positioning fixture, and
excellent quality hydraulic locking device to ensure the beveling
quality.
The device uses hydraulic system adopt high quality hydraulic
valve, effective control slide fast forward, working forward,
return fast, safe and reliable operation.
Cutting equipment feed rate and cutting speed can be adjusted according to the size of the pipe diameter and wall thickness.
Main technical parameter:
1, Motor power:N=5.5KW , n=960rpm
2, Cutterhead speed:n=54-206rpm 6positions
3, Processing range:Pipe diameter 30-426mm Pipe wall thickness
6-100mm
4, Angle kinfe frame regulation range:Between 0-35o
5, Differential speed automatic feeding spdde:0,0.17mm/r
6, Axial movement speed manual:18.8mm/r Axial movement of
stroke:250mm
7, Styles can be machined groove:Single V, double V, U and other
forms
8, Cutter diameter:450mm
9, Machine Center High:H=1000mm
|
|
