Welding Use Cast Iron Bed Plates 3000 X 2000mm HT200-300 High Hardness

Categories Cast Iron Bed Plates
Brand Name: OEM
Certification: CO, FORM-E
Place of Origin: China
MOQ: 1
Payment Terms: Western Union, T/T
Supply Ability: 10/monthd
Delivery Time: 20days
Packaging Details: wooden
Material: HT250
Name: Welding Use Cast Iron T Slost Plate With Hole 3000 X 2000 MM HT 200-300
Type: Hollow type
Flatness: 1 grade
size: as clients request
surface finish: hand scrap
Price: Negotiable
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

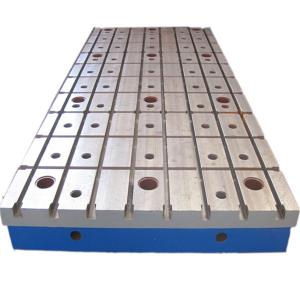

Welding Use Cast Iron Bed Plates 3000 X 2000mm HT200-300 High Hardness

Welding Use Cast Iron T Slost Plate With Hole 3000 X 2000 MM HT200-300


Machine t slot cast iron surface bed table plate

The cast iron surface plates are manufactured according to GB4986-85 standard to ensure the high quality. Cast iron inspection surface plate with T-slot:

Material
HT200-300
Standard
GB/T22095-2008
Specification
100x200-3000x8000mm or customized
Surface
flat (accessories are available according to your requirement, like V, T, straight-shaped slots and tapped holes, long holes, grid lines, etc)
Hardness of the working surface
HB160-240
Surface treatment
hand-scraped, finish-milling or ground finish
Foundry process
sand casting or centrifugal casting
Molding type
resin sand molding
Painting
primer and face paint
Surface coating
pickling oil and plastic-lined or covered with anticorrosion paint
Surface flatness
Master, Working, Reference
Precision grade
1-3
Working temperature
(20±5)℃
Packaging
wooden box

Notice for use

1: To the best uniform use of the flat plate throughout, to avoid local grinding concave.
2: Keep the plate clean, prevent be wroned by iron scrap, sand ...
3: Put down workpieces on the plate gently, prevent the flat surface be impacted, once the plate surface hit the workpiece or other objects,repair impact and the convex part immediately.
4: Do not do any hammer work on the surface plate .
5: After use, should be clean it. If long time no use should not be coated with anti rust oil to prevent corrosion.
