Durable HT250 T Slot Base Plate Good Wear Resistance With Water Channel

Categories Cast Iron Bed Plates
Brand Name: OEM
Certification: CO, FORM-E
Place of Origin: China
MOQ: 1
Payment Terms: Western Union, T/T
Supply Ability: 10/monthd
Delivery Time: 20days
Packaging Details: wooden
Price: Negotiable
Material: HT250
Name: Durable HT250 T Slot Base Plate Good Wear Resistance With Water Channel
Type: Hollow type
Flatness: 1 grade
size: as clients request
surface finish: hand scrap
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

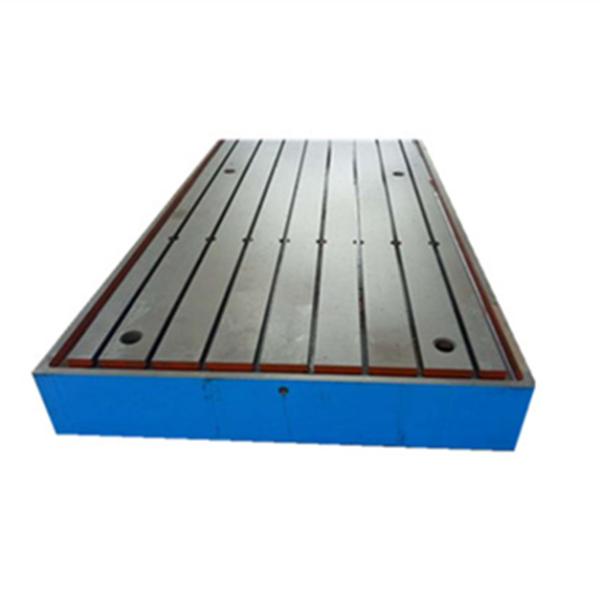

Durable HT250 T Slot Base Plate Good Wear Resistance With Water Channel

Durable HT250 T Slot Base Plate Good Wear Resistance With Water Channel


Features

  • Close grained, stress relieved cast iron

  • Precisely finished by planing and hand scraping

  • Deep cross ribbed construction maintaining rigidity & accuracy

  • Accuracy to standard DIN876/1, GB/T22095-2008

  • Includes lifting handles & cover for protection

  • T-slots made according to DIN650.


Materials and Processing:


(1) The material of our surface plate/table is cast iron HT200-350


(2) Working surface hardness is HB170-240


(3) Low inaccuracy error and good in grinding resistance.


Usage:

Cast Iron Surface Plates provide a precision reference for spotting, tool making, inspection of parts, checking accuracy of other surfaces and for many types of gauging and marking out operations


Precision: According to the national standards measurement examination regulations execution,

respectively is 1,2,3, fine polish.

specification(Lx W)mmprecision grade
0123
flatness tolerance (um)
200X2003.571427
300X200481530
300X300481530
300X400481632
400X4004.58.51734
400X5004.591835
400X6005101937
500X5005101937
500X6005101939
500X8005.5112143
600X8005.5112244
600X900611.52346
1000X750612.52550
1000X1000713.52754
1000X12007142958
1000X15008163263
1000X2000918.53774
1500X200010204080
1500X25001122.54590
1500X3000132550100
2000X200011224488
2000X3000132753106
2000X4000163264127
2000X5000193775150
2000X60004386172
2000X70004997194
2000X800054.5109218
2500X300028.557114
2500X40003367133
2500X50003977154
2500X60004488176
2500X70005099198
2500X800055110221
3000X300030.561122
3000X40003570140
3000X50004080160
3000X60004590.5181
3000X700051101203
3000X800056112.5225
4000X40003978156
4000X50004387174
4000X60004896.5193
4000X700053107213.5
4000X800059117235
