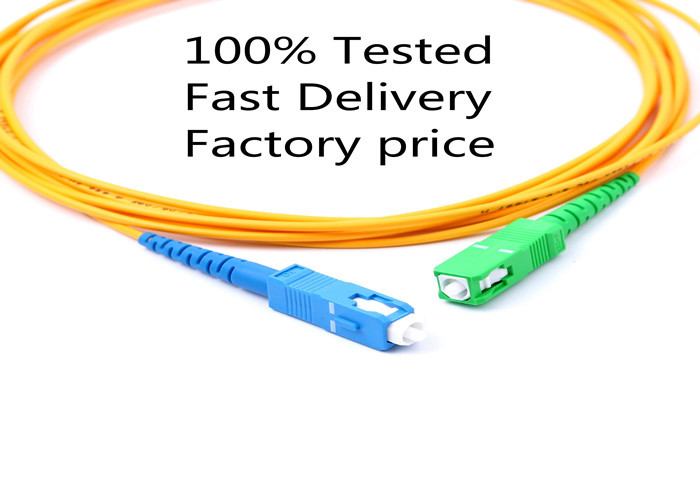

Yellow 3.0mm SC To SC Single Mode Fiber Optic Patch Cord

Indoor High-Reliability Yellow Jacket Fiber Optic Simplex Single Mode Patch Cord SC-SC

1.Fiber Patch Cord Basic Introduction:

An SC/UPC to SC /UPC fiber optic patch cord is used to connect fiber optic equipment to equipment or patch panel to equipment, UPC stands for Ultra Physical Contact and represents one of the best ways of polishing for fiber ferrules, assuring a return attenuation greater than 50dB for single-mode connections.

Backed by Lifetime Warranty, our SC-SC Multimode Fiber Patch cable is guaranteed to provide long-lasting dependability and top-quality performance.

2.Fiber Optic Patch Cord SC To SC

• Free SC to SC SX SM adapter sample
• Good protection with dust cap
• SC connects with LC,FC,ST,MPO,MU, E2000, can be available
• Polishing Options:PC/UPC/APC
• Feature Connector with Ceramic Ferrules
• Low insertion loss & High return loss
• Connectors compliant with Telcordia GR-326-core
• Mechanical performance compliant with IEC 61754-4
• Factory-terminated and Tested
• Price-Competitive with America standard quality

3. Single Mode SC To SC Patch Cord Application:

• Building interconnections (campus LAN)
• Connector end in optical distribution boxes and termination boxes
• Cross-connect in the outdoor closet
• Fiber patch panels within communications closets
• Links between Internet electronic equipment (SFP module, Switch, OLT, ONU, etc.), Cable TV optical equipment (Transmitter, EDFA, Node, etc.)

4.Specification&Technology Parameters

* For Device with connector.IL is 0.3dB higher,RL is 5dB lower,ER is 2dB lower.
* The default connector key is aligned to the slow axis.

5. Fiber patch cord SC Specification& Technology Parameter​:

* EX:OFC-D-LA-LA-09-1-1.0

6. More connectors are available
