ABEC 3 Cast Iron Housing UCT300 Take Up Bearing Units

Categories	Cast Iron Pillow Blocks
Brand Name:	SGC
Model Number:	UCT300
Place of Origin:	Fuzhou, China
MOQ:	100 PCS
Price:	Get the latest price
Payment Terms:	D/P, L/C, T/T, Western Union
Supply Ability:	100000PCS per month
Delivery Time:	45 days upon receipt of official order
Packaging Details:	1*1 Plastic Bag+Individual Box+Outer Carton+Pallet
Ball Bearing Insert:	GCr15 Chrome Steel
Hardness:	HRC58-62
Precision Rates:	ABEC-1, ABEC-3
Vibration:	Z1, Z1V1, Z2V2
Clearance:	C0, C2, C3
Shaft Dia:	25mm ~ 140mm, 7/8" ~ 4" Inch
Mounting Block:	High Grade Cast Iron
Type:	T Type
Color of Block:	Green
Oil Nipple:	Brass
Package:	1*1 Plastic Bag+Individual Box+Outer Carton
Service:	OEM or Customized Drawings is Available
Sample:	Free

Contact Now

Add to Cart

Company Info.

Fuzhou Zoomland Import and Export Trade Co.,Ltd

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

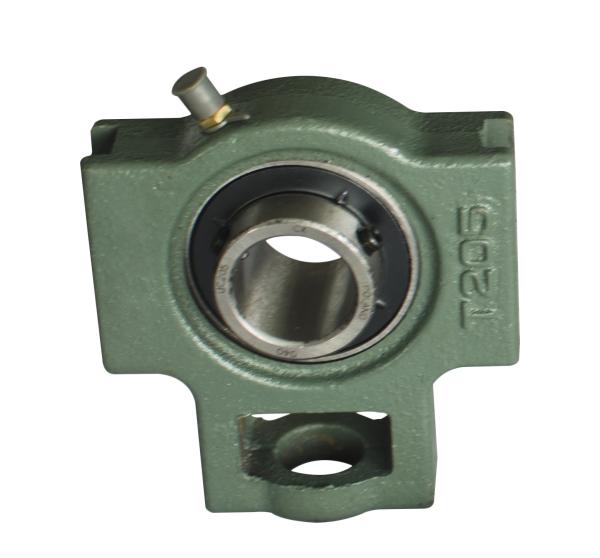

ABEC 3 Cast Iron Housing UCT300 Take Up Bearing Units

Take Up Bearing Units with Durable Ball Bearing Insert Hardness Treatment UCT300

Set Screw Type-Metric, Inch

Standard duty pillow & mounting blocks that feature a cast iron housing with both set screw or locking collar design.
The dual seal construction ball bearing inserts are available for these mounting and pillow blocks.

Features:

• Cast Iron Housing
• Solid Base
• Dual Seal Type

Applications:

The bearing units can operate satisfactorily under hard working conditions, especially for machines operated in dusty or muddy surroundings, widely used used in agricultural machinery, construction machinery, textile machinery, foodstuff processing machinery, and conveying devices, etc..

Unit No.	Shaft Dia d		Boundary Dimensions(mm)															Bearing No.	Housing
																			Housing No.	Mass (kg)

	(in)	(mm)	o	g	p	q	s	b	k	e	a	w	j	l	h	Bi	n
UCT305-14	7/8.		16	12	62	36	26	65	12	80	89	122	36	26	76	38	15	UC305-14	T305	1.05
UCT305-15	15/16																	UC305-15
UCT305-16	1																	UC305-16
UCT305		25																UC305
UCT306-18	1-1/8.		18	14	70	41	28	74	16	90	100	137	41	28	85	43	17	UC306-18	T306	1.24
UCT306-19	1-3/16.																	UC306-19
UCT306		30																UC306
UCT307-20	1-1/4.		20	15	75	45	30	80	16	100	111	150	45	32	94	48	19	UC307-20	T307	1.69
UCT307-21	1-5/16.																	UC307-21
UCT307-22	1-3/8.																	UC307-22
UCT307-23	1-7/16.																	UC307-23
UCT307		35																UC307
UCT308-24	1-1/2.		22	17	83	50	32	89	18	112	124	162	50	34	100	52	19	UC308-24	T308	2.04
UCT308-25	1-9/16.																	UC308-25
UCT308		40																UC308
UCT309-26	1-5/8.		24	18	90	55	34	97	18	125	138	178	55	38	110	57	22	UC309-26	T309	2.72
UCT309-27	1-11/16.																	UC309-27
UCT309-28	1-3/4.																	UC309-28
UCT309		45																UC309
UCT310-30	1-7/8.		27	20	98	61	37	106	20	140	151	191	61	40	117	61	22	UC310-30	T310	3.35
UCT310-31	1-15/16																	UC310-31
UCT310		50																UC310
UCT311-32	2		29	21	105	66	39	115	22	150	163	207	66	44	127	66	25	UC311-32	T311	4.33
UCT311-34	2-1/8.																	UC311-34
UCT311-35	2-3/16.																	UC311-35
UCT311		55																UC311
UCT312-36	2-1/4.		31	23	113	71	41	123	22	160	178	220	71	46	135	71	26	UC312-36	T312	5
UCT312-38	2-3/8.																	UC312-38
UCT312-39	2-7/16.																	UC312-39
UCT312		60																UC312
UCT313-40	2-1/2.		32	25	116	71	43	134	26	170	190	238	80	50	146	75	30	UC313-40	T313	6
UCT313		65																UC313
UCT314-44	2-3/4.		36	25	130	85	46	140	26	180	202	252	90	52	155	78	33	UC314-44	T314	7.05
UCT314		70																UC314
UCT315-48	3		36	25	132	85	46	150	26	192	216	262	90	55	160	82	32	UC315-48	T315	9.28
UCT315		75																UC315
UCT316-50	3-1/8.		42	28	150	98	53	160	30	204	230	282	102	60	174	86	34	UC316-50	T316	10.03
UCT316		80																UC316
UCT317-52	3-1/4.		42	30	152	98	53	170	32	214	240	298	102	64	183	96	40	UC317-52	T317	13.3
UCT317		85																UC317
UCT318-56
