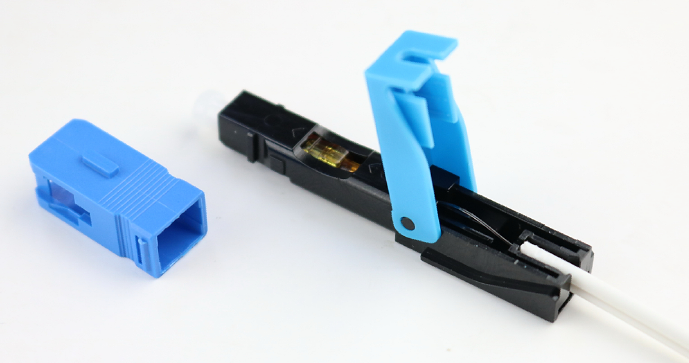

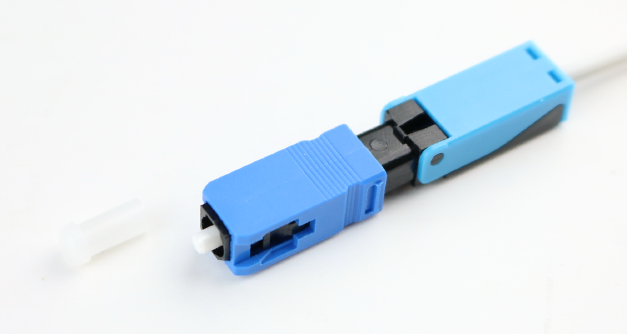

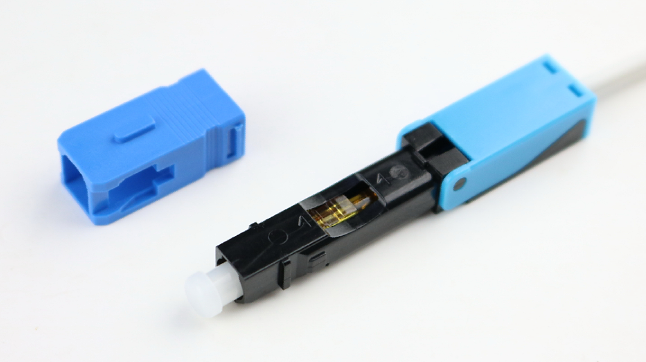

Alligator clip, push-pull ring, SM, 50mm, for drop cable, vertical input, SC/UPC field installable connector

FAOC2103-2-USC 50mm Fiber Optic Fast Connectors

Field Quick Assembly SC/UPC

Description

Quick Assembly Connector with unique mechanical splice V-groove technology, can provide a fast, easy and stable termination of fibers in the field. Both SC single-mode and multi-mode connector options are available for 2.0x1.6mm, 3.1x2.0mm flat, and 3mm round drop cable applications allowing the installer to terminate and make the connection in 3 minutes in the field.

This connector system doesn’t need any requirements such as epoxy, adhesive or costly curing ovens. Field installable SC connector features that the installer can easily recognize the installation status by simple termination tools.

The cable clamping method offers stable cable retention and installer convenience. It reduces connection defect rate by allowing re-assembling several times in the field without additional tools.

Features

* Compatible with factory-assembled conventional standard SC connectors

* Easy and Quick assembly (within 2 minutes) without special tools

* No need for electric power, polishing, epoxy, or adhesive on site

* Reliable assembly with assembly guide jig

* Available splice inspection with a visible light source or optical power meter on site

* Available to re-assembly process after Termination more than 5 times

Specifications

Accessories

Name	Model No.	Description	Picture
Drop Cable Holder	DCH18-10 (282)	Also referred to as a guide jig or fixed-length cutting template, used for fixed-length cleave
User Manual	Front	For SC/UPC or SC/APC Connector (Custom version is available)
	Rear

Notes:

1. Standard Configuration: 2pcs Drop Cable Holder, and 1pcs User Manual for 100pcs Connector, if you need more, please contact our sales representative.

2. The width of the Drop Cable Holder is 16.3mm, compliant with Sumitomo brand fiber cleaver standard.

3. The default Fixed Cutting Length of Drop Cable Holder: Buffer Coating Length - 18mm, Bare Fiber Length after Cutting - 10mm, total fiber length without a jacket is 28mm (Buffer fiber + Bare fiber), this is the most important part, if the length changes, the splicing result maybe fail. *

4. For more details about how to use these accessories, please check the User Manual.

Order Information
