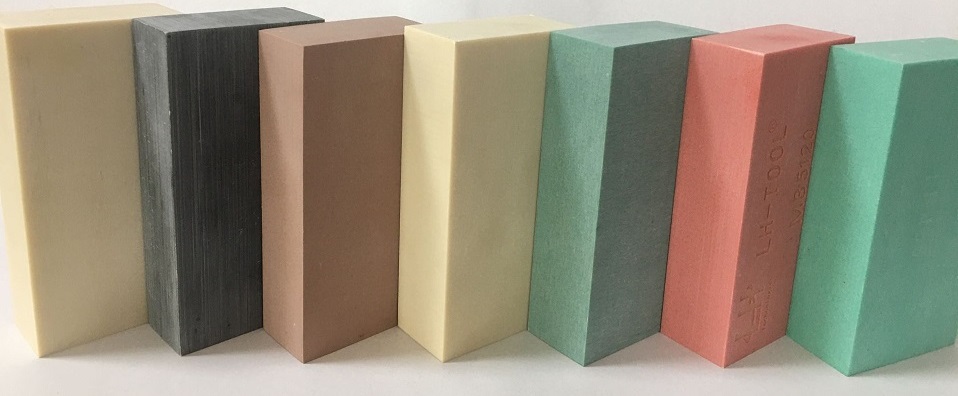

Green 50mm Epoxy Cutting Tooling Board For Mock Ups Cubing Models

Epoxy cutting tooling board for mock-ups Cubing models

Polyurethane mold manufacturing and casting rubber is economical, incredibly versatile, and captures excellent detail. Flexible polyurethane materials are widely used in various industries, including but not limited to:

Precast concrete

Sculpture and casting

The prototype design

Props and special effects

Gypsum wood products and decorations

Industrial applications and production components

Theme and landscape design

Model making

Style No	Color	Density(g/cm3)	HardnessShore D	Coefficient Thermal Expansion (in./in./°F x 10-6K-1	Deflection Temperature(°C)1.82Mpa	Dimension(mm)	Characteristics and Application
LH-tool®5112MB	Grey/Green	1.20	80-85	40-50	75-85	1000x500x(50/75/100) 1500x500x(50/75/100)	High density of surface, good toughness, suitable for sheet metal stamping die, metal forming mould and checking fixture, etc.
LH-tool®5120MB	Grey/Red	1.25	80-85	40-45	75-85	1000x500x(50/75/100) 1500x500x(50/75/100)	Stable dimension, High density surface, good toughness, suitable for sheet metal stamping inspection system mold, die, checking.
LH-tool®1404MB	Olive Green	1.40	85-88	40-45	75-85	1000x500x(50/75/100) 750x500x(50/75/100)	Stable dimension, High density surface, good toughness, suitable for sheet metal stamping inspection system mold, die, checking.
LH-tool®1460MB	L. Green	1.46	84-85	40-45	75-85	1000x500x(50/75/100) 750x500x(50/75/100)	Stable dimension, High density surface, good toughness, suitable for sheet metal stamping inspection system mold, die, checking.
LH-tool®5166MB	Beige	1.67	85-87	40-45	75-85	1000x500x(50/75/100) 750x500x(50/75/100)	High density surface, good toughness, suitable for sheet metal stamping inspection system mold, metal forming mould, test fixture

Product Tags:

Green Epoxy Tooling Board

Mockups Epoxy Tooling Board

Green 50mm Epoxy Cutting Tooling Board For Mock Ups Cubing Models

Send your message to this supplier


*From:	Your email address is incorrect!
*To:	Yongzhou Lihong New Material Co.，Ltd
*Subject:	Subject is empty!
*Message:	For the best results, we recommend including the following details: -Self introduction -Required specifications -Inquire about price/MOQ Characters Remaining: (0/3000) Please enter 20 to 3000 characters to contact this supplier!

Categories	Epoxy Tooling Board
Brand Name:	LH-tool®
Model Number:	LH5120 red/ 5112 green/450- Beige
Certification:	ISO9001:2008 Standard
Place of Origin:	China
MOQ:	10 Sheets
Price:	Negotiation
Payment Terms:	T/T
Supply Ability:	3000 Sheets Month
Delivery Time:	15 Days
Packaging Details:	Standard Carton Packing
Materials:	Polyurethane
Color:	Multi color
Size:	1500500 1000500 750x500
Density:	0.70~1.7
Hardness:	60~90
Thickness:	35mm 50mm 75mm 100mm

Item No	Color	Density	Hardness	Coefficient of thermal expansion	Thermal deformation temperature	Dimension(mm)	Performance and application
		Density	Hardness	Coefficient of thermal expansion	Thermal deformation temperature
		(g/cm3)	(Shore D)	x 10-6 K-1	(°C)
LH-Tool®SB-0351	Apricot	0.35	30-40	45-50	60-70	1500x500x(50-200)	Fine surface structure Easy to form and process Low dust, styling and design models
LH-Tool®SB-0470	Apricot	0.47	40-50	60-65	60-70	1500x500x(50-200)	Very good surface structure Easy to process molding models Master model and data control model
LH-Tool®MB-0600	Brown	0.60	50-55	50-55	70-75	1500x500x(50-200)	Easy to form and process Low heat coefficient Good dimensional stability Master model, model
LH-Tool®MB-0670	Brown	0.67	60-65	50-55	75-80	1500x500x(50-200)	Easy to form and process Low heat coefficient Good dimensional stability, master model, model
LH-Tool®MB-651	Brown	0.70	65-70	40-45	75-80	1500x500x(50-200)	Very fine surface structure Good machinability Good dimensional stability Cubing and data models
LH-Tool®WB-0700	Light Green	0.70	75-78	35-45	140-150	1500x500x(50-200)	Very fine surface structure Easy to process Heat resistance up to 150°C Good dimensional stability Prepreg laying tool Vacuum forming die
LH-Tool®MB-460	Brown	0.77	68-73	30-35	75-85	1500x500x(50/75/100)	Stable size, good processing performance, main mold, fixture, sand casting ,Tire mould
LH-Tool®WB-0801	Light Gray	0.80	68-73	45-50	85-90	1500x500x(35/50/75/100)	Fine surface structure Good dimensional stability Good compressive and bending strength Master model, model Fixtures and jigs Vacuum forming tool
LH-Tool®MB-950	Brown	0.98	78-82	20-30	190-200	1500x500x(50/75/100)	Prepreg lay-up tooling, vacuum forming, core box mold, high temperature environment application
LH-Tool®MB-5100	Beige	1.0	75-80	30-35	75-85	1500x500x(50/75/100)	Low expansion coefficient, suitable for benchmark models, automotive fixtures, composite molds, hot pressing.
LH-Tool®MB-5120	Beige	1.20	80-82	35-40	75-85	1000x500x(50/75/100) 1500x500x(50/75/100)	Low expansion coefficient, suitable for benchmark models, automotive fixtures, composite molds, hot pressing.
LH-Tool®MB-5112	Green	1.20	80-85	30-35	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping die, metal forming die and gage
LH-tool®WB-1404	Olive Green	1.40	85-90	55-55	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, gage
LH-tool®WB-1460	Green	1.46	80-85	60-65	75-80	1000x500x(50/75/100) 1000x500x(50/75/100)	Stable size, high surface density, good toughness, suitable for sheet metal stamping inspection system mold, mold
LH-Tool®MB470	Dark Gray	1.70	85-90	45-50	100-125	750x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, gage
LH-Tool®MB470	Dark Gray	1.70	85-90	45-50	100-125	750x500x(50/75/100) 1000x500x(50/75/100)
LH-Tool®MB5166	Beige	1.67	85-90	45-50	75-85	750x500x(50/75/100) 1000x500x(50/75/100)	High surface density, good toughness, suitable for sheet metal stamping inspection system die, metal forming die, test fixture
LH-Tool®MB5166	Beige	1.67	85-90	45-50	75-85	750x500x(50/75/100) 1000x500x(50/75/100)
LH-Tool®0500A/B	Brown	0.50	50-55	50-60	60-70	5kg/bag	Modeling paste, suitable for reference model, car master model, car fixture and so on
LH-Tool®5200A/B	Brown	0.7-0.8	60-70	45-50	70-75	10kg/bag	Modeling paste, suitable for reference model, car master model, car fixture and so on
