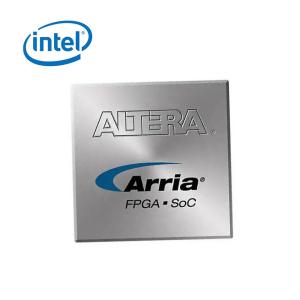

Arria 10 Gx 1150 667MHz Field Programmable Gate Array

• 10GBASE-KR/40GBASE-KR4 Forward Error Correction (FEC)
• PCS hard IPs that support:
— 10-Gbps Ethernet (10GbE)
— PCIe PIPE interface
— Interlaken
— Gbps Ethernet (GbE)
— Common Public Radio Interface (CPRI) with deterministic latency support
— Gigabit-capable passive optical network (GPON) with fast locktime support

• 13.5G JESD204b
• 8B/10B, 64B/66B, 64B/67B encoders and decoders
• Custom mode support for proprietary protocols
• Up to 800 MHz fabric clocking, depending on the application:
— 667 MHz external memory interface clocking with 2,400 Mbps DDR4 interface
— 800 MHz LVDS interface clocking with 1,600 Mbps LVDS interface

• Global, regional, and peripheral clock networks
• Clock networks that are not used can be gated to reduce dynamic power
• High-resolution fractional synthesis PLLs:
— Precision clock synthesis, clock delay compensation, and zero delay buffering (ZDB)
— Support integer mode and fractional mode
— Fractional mode support with third-order delta-sigma modulation
• Integer PLLs:
— Adjacent to general purpose I/Os
— Support external memory and LVDS interfaces
