Silicone Glue Spreading machine Sealant Extruder sealant dispensing equipment

Product Description of Automatic Vertical Insulated Glass Sealing Machine

Automatic Vertical Insulated Glass Sealing Machine can automatically recognizing glass size by sensors, don't need input glass size on the touch screen. Insulating glass sealing robot can coat 8 kinds of shaped IGU.

Product Detail of sealant dispensing equipment

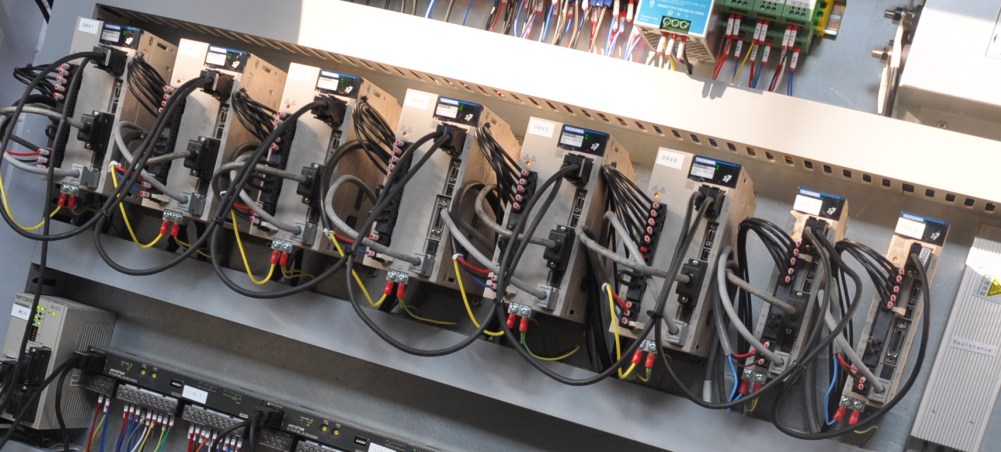

1.Double Glazing Glass sealing machine adopt 8 sets of Japan ANCHUAN servo control system with stable performance.

2.Glass corners are full without air bubbles, smooth surface, no corner trimming required

3. Two Suckers Device

Adopting two suckers for preventing to move glass during sealing.

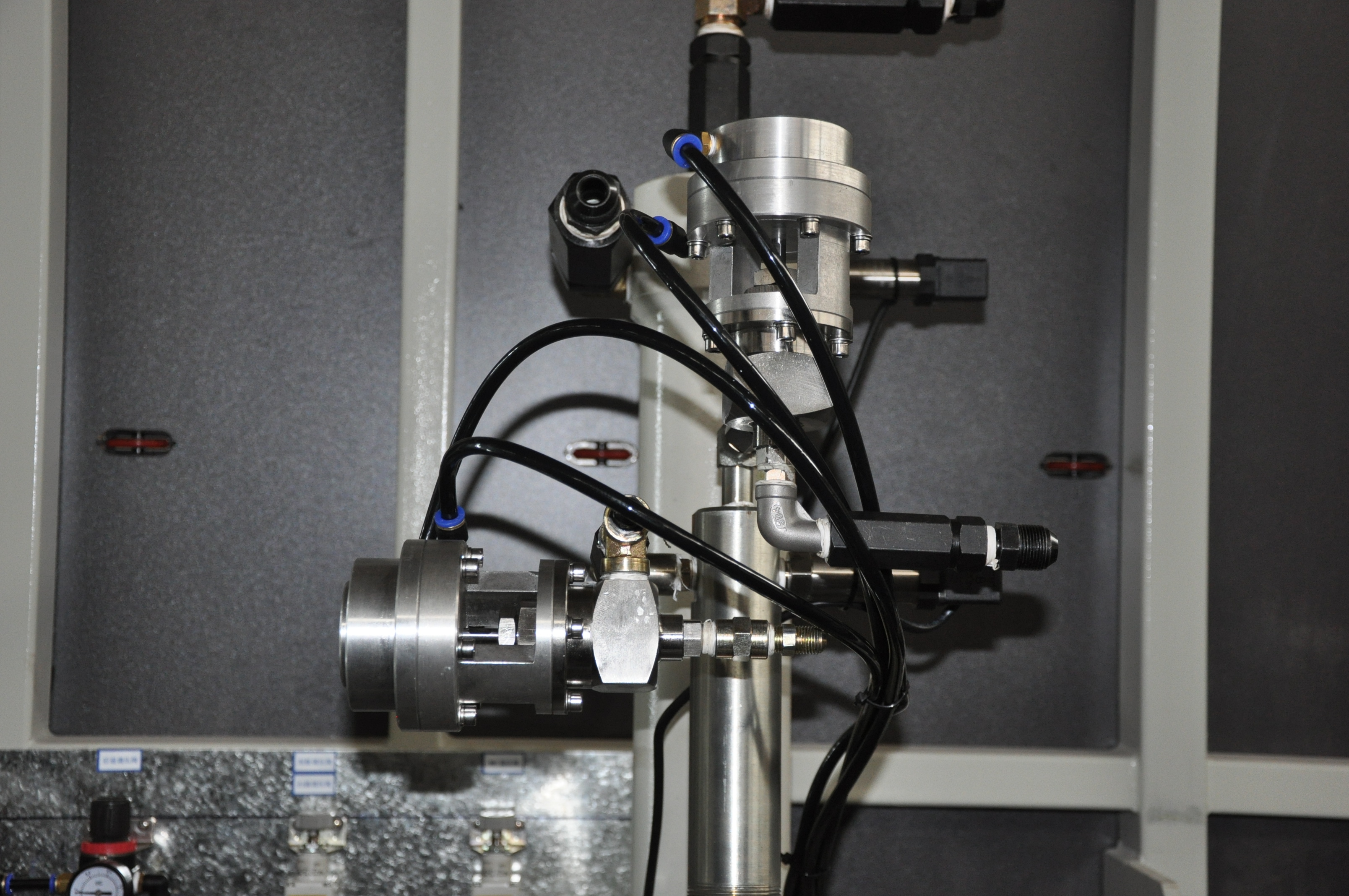

4.Glue system can be selected

One Set of Glue System Equipped with single A component and single B component.

Two Sets of Glue Systems Equipped with two sets of A components and two sets of B components, which can be used for two kinds of different sealants, such as silicone rubber, polysulfide rubber, silicone structural adhesive and so on.

5. Back Glue Device

When the pressure increasing, more Glue B will flow back automatically, saving materials.

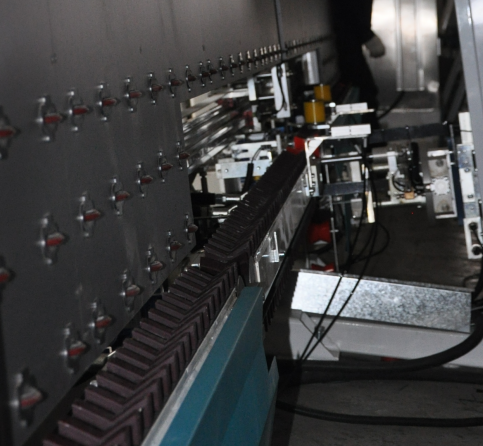

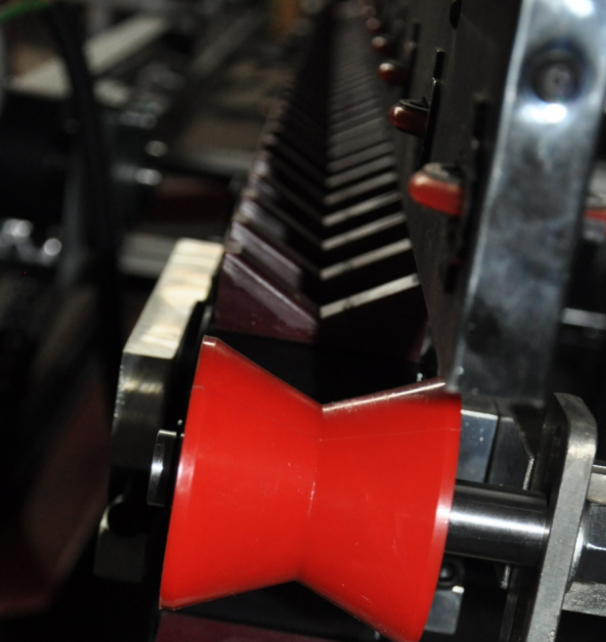

6. Time belt device ensure that glass can be smooth transmission and positioned accurately.

Technical parameters of silicone spreading machine

Related Product

Butyl Sealant Coating Machine for Double Glazing Glass Processing

Automatic Butyl sealant coating machine is a special equipment for the production of making double glazing glass. The main role is to melt butyl rubber evenly on the aluminum frame.It is the special equipment in the aluminum groove type insulating glass production and processing technology. As one of the important equipment of producing insulating glass, the effect of butyl glue is directly related to the sealing of insulating glass. The equipment is automatic one, easy to operate and convenient to use.

Main Features of butyl extruder machine:

1. Automatically identify the width of aluminum bar, the glue nuzzle can be automatic adjust,and the integrated control of quick opening valve ensures the consistency of double-sided gluing

2.PLC control system, touch screen interface

3. It can save the glue consumption compared with the ordinary butyl rubber machine, and the gluing can reach 7g / m
4.The critical part of the hydraulic system using German imports of components to ensure that the plastic evenly full
5. Unique design structure, with automatic exhaust function, to ensure continuous glue application
6.Non adhesive synchronous belt is used, and talcum powder is not needed for cleaning
7.Fast preheat, improve work efficiency

8.with preheating function
9.Quickly coating speed,can up to 47m/min

10. It is convenient and practical to use movable vertical and horizontal sealant

11. It is convenient to adjust the height of the crossbeam and solve the problem of exposed white effectively and conveniently

12. Touch screen operation, simple and practical

13. The rubber cylinder adopts pull-up structure, which is convenient for operation
