Home > Glass Production Machinery >

300*450mm Insulating Glass Sealing Robot Sealant Spreading Glass

Categories Insulating Glass Sealing Robot
Brand Name: Jinan Lijiang Glass Machinery
Model Number: LJCM2545 Smart Vertical Edge Deleting Machine
Certification: CE & ISO9000
Place of Origin: China
MOQ: 1 set
Price: Discussible
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 15 sets per month
Delivery Time: 5-8 working days
Packaging Details: Wooden Cases Package
Dimension(L*W*H): 22000x2000x3380mm
Power: 25kw
Glass Thickness: 3-60mm
Material: Stainless Steel
Voltage: 380V
Air pressure: 0.6-0.8Mpa
Max. glass size: 3500*2500mm (can be larger or smaller according to the requirements )
Min. glass size: 300*450mm
Insulating glass thickness: 14~54mm
Sealing width: 6-24mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

300*450mm Insulating Glass Sealing Robot Sealant Spreading Glass

Automatic Vertical Hollow Glazing Double Glasing Insulated Glass Sealing Robot Machine


for Sealant Spreading Glass


Automatic Vertical Insulating Glass Sealing Robot for glass processing


Automatic insulting glass sealing robot is used for the second sealing procedure of the hollow glass. Silicone glue, polyurethane glue or polysulfide glue are applied around the hollow glass to play the second sealing role and to maintain the stability of the structure.


Main feature
1.Automatic insulting glass sealing machine can coat many shaped glass(triangle glass,hexagon glass,trapezoidal glass,arc glass,train glass and so on) , stepped glass
2.Insulting glass sealing machine can coat triple glass by one time
3.Hollow glass sealing machine works very well,the glass edge and corner is full without air bubbles, smooth surface, no need to pare the corner
4.The sealing machine has quality assurance,it adopt Japan YASKAWA servo motor and CPU,Siemens low-voltage electrical appliances.


Application

1.Spares are produced with high standardization and high precision, ensure the machine can

be used with long-term working

2.Glass sealing machine adopt timing belt to keep smooth convey with accurate position

3.Automatic Hollow glass sealing spreading machine adopt 8 servo motors

4.Automatically measure glass size, glue depth and glue speed with linear adjustment

5.New scraper design, especially for making train IG with very even sides and corners, without any bubbles.
6.Full automatic and high-efficiency machine,Automatically repair glass corners with beautiful surface,Smooth convey without scratch and pollution
7.Single-function parts are equipped with manual functions, easy adjustment


Technical parameter

Max.glass size2500*4000mm
Min.glass size300*300mm
Glass thickness12-56mm
Working speed5-40m/min
Air pressure0.5-0.7MPa
Squeeze pressure32MPa
Voltage power380V 12kw
Overall dimension8000*1500*3500mm

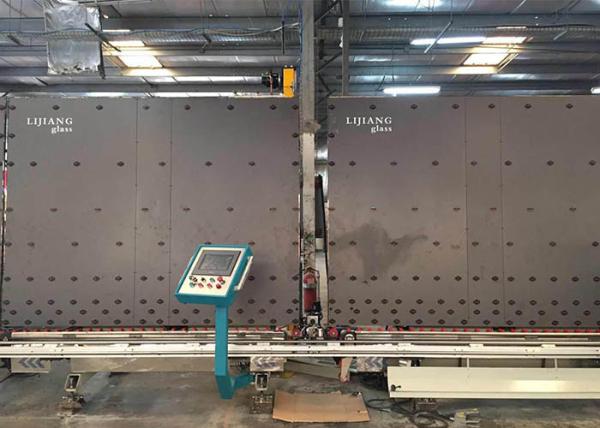

Detail pictures
