Home > Solar Water Heaters >

Metal Heat Pipe Solar Collector

Categories Solar heating collector
Place of Origin: China
Brand Name: Easwon
Certification: CE
Model Number: ILHC-7017H20-AF
MOQ: 1 set
Price: usd1150/set
Packaging Details: wooden carton
Delivery Time: within 15 days
Payment Terms: T/T, L/C
Supply Ability: 5000 set per month
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

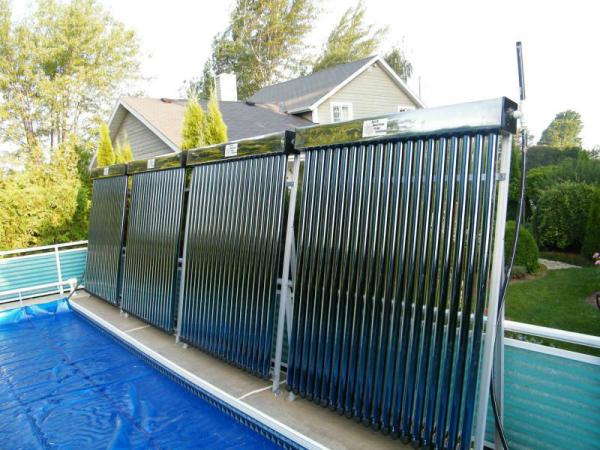

Metal Heat Pipe Solar Collector

Item: Metal Heat Pipe Solar Collector
1. Flow passage: High quality red copper Φ35X1.0mm, inlet & outlet Φ22X1.0mm
2. Manifold Exterior Shell:High-quality black/gray aluminum alloy 2mm
3. Insulation: High-density compression-moulded rockwool 50mm
4. Vacuum tube: Three-target coated vacuum tube,Ø14mm condensor copper heat pipe, Aluminium fin,silicon tube seal
5. Mounting Frame: Black aluminum alloy 1.8mm, universal bracket suitable for slope and flat roof installation
6. Accessories: Themal paste,copper connectors, Stainless bolts & nuts, Heat-resisting dustproof rubber seal and ajustable tube ho
7. Max. Working pressure: 1.5 Mpa
8. Tilt Angle ( uprightness / level shift): 20°~90°(-5°/ -5°)
9. Hail Resistance: Φ35 mm
10. Anti-freezing: (-)50
Item No.Solar Vacuum TubeAperture
Area (M2)
Daily
output
50-90
Qty / PcsSize / mm
ILHC-7017H10-AF10Φ70 X 17001.4975-110
ILHC-7017H20-AF20Φ70 X 17003.02145-210
ILHC-7019H10-AF10Φ70 X 19001.6275-120
ILHC-7019H20-AF20Φ70 X 19003.29145-240
ILHC-100200H8-AF8Φ100 X 20001.7585-160
ILHC-100200H12-AF12Φ100 X 20002.64105-240
ILHC-100200H16-AF16Φ100 X 20003.53135-300
