Wall Mounted Pressurized Solar Collector

Categories Solar heating collector
Place of Origin: China
Brand Name: Easwon
Certification: CE
Model Number: ILHC-5818H15-AF
Type: Manifold Collector
Application: Water Heater
Pipe Material: Copper
MOQ: 1 set
Price: usd445/set
Packaging Details: wooden carton
Delivery Time: within 15 days
Payment Terms: T/T, L/C
Supply Ability: 5000 set per month
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

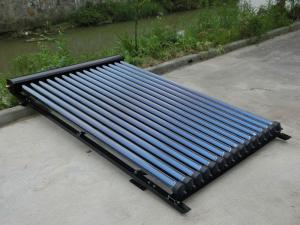

Wall Mounted Pressurized Solar Collector

Item: Heat Pipe Solar Collector
1. Flow passage: High quality red copper Φ35X1.0mm, inlet & outlet Φ22X1.0mm
2. Manifold Exterior Shell:High-quality black/gray aluminum alloy 2mm
3. Insulation: High-density compression-moulded rockwool 50mm
4. Vacuum tube: Three-target coated vacuum tube,Ø14mm condensor copper heat pipe, Aluminium fin,silicon tube seal
5. Mounting Frame: Black aluminum alloy 1.8mm, universal bracket suitable for slope and flat roof installation
6. Accessories: Themal paste,copper connectors, Stainless bolts & nuts, Heat-resisting dustproof rubber seal and ajustable tube ho
7. Max. Working pressure: 1.2 Mpa
8. Tilt Angle ( uprightness / level shift): 20°~90°(-5°/ -5°)
9. Hail Resistance: Φ25 mm
10. Anti-freezing: (-)30
Item No.Solar Vacuum TubeAperture
Area (M2)
Daily
output
50-90
Qty / PcsSize / mm
ILHC-5818H15-AF15Φ58 X 18001.41105-150
ILHC-5818H20-AF20Φ58 X 18001.89140-200
ILHC-5818H25-AF25Φ58 X 18002.36175-250
ILHC-5818H30-AF30Φ58 X 18002.8210~300
ILHC-5818H36-AF36Φ58 X 18003.36250-360
