RGP500S Model Single Cylinder Hydraulic Cone Crusher for Limestone Secondary Crushing

Categories Single Cylinder Hydraulic Cone Crusher
Brand Name: Aowei
Model Number: RGP500S
Certification: CE, ISO
Place of Origin: China
MOQ: 1 SET
Payment Terms: T/T, L/C, D/A, D/P, Western Union, MoneyGram
Supply Ability: 5-10 Set/Month
Delivery Time: 5-7 days
Packaging Details: Standard Package
Processing Capacity: 160-750 (t/h)
Application Fields: Metal and non-metallic ore, cement, sand, metallurgy and other fields
Applied Materials: River pebbles, granite, basalt, iron ore, limestone, quartz, diabase, iron ore, gold ore, copper ore, etc
Motor Power: 315kw
Feed Size: 10mm-50mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

RGP500S Model Single Cylinder Hydraulic Cone Crusher for Limestone Secondary Crushing

RGP500S Single Cylinder Cone Crusher for Basalt Secondary Crushing


1.Description

RGP500S Single Cylinder Hydraulic Cone Crusher is one of advanced cone crusher in China, which is developed and manufactured by our company. The machine is one kind of high-class product combined with mechanical technology, electrical technology, hydraulic technology and advanced crushing technology. RGP cone crusher adopts high strength casting-steel frame, alloy forging main shaft and high precision arc-shaped spiral gear driving structure, combined with multi-chambers selection and automation control system, which fulfills the performance and advantages. This RGPS cone crusher can be widely used inused in metal and non-metallic ore, cement, sand, metallurgy and other industries.


2.Advantages

1. High Reliability: Optimize and improve the product structure, material, processing and assembly process, so as to ensure the reliability of the host machine.

2. High Productivity: Scientific and reasonable crushing chamber type, combined with optimal crushing chamber, reasonable eccentricity, optimal swing frequency and laminating crushing principle, the machine has a large throughput capacity, high productivity, good products shape and low energy consumption.

3. Wide Applicability: According to different feed and finished material size, match the reasonable cavity type, adopt the steel bottom frame or the motor and the main machine to install in one, which can be short time-cost and minimum installation cost.

4. Low Operating Cost: specially designed cavity type and lining material make the lining plate more efficient, equipped with positive pressure dust control system to ensure the lubricating oil inside the main engine is free from dust pollution.


3.Working Principle

When the cone crusher works without material, eccentric bushing assembly “cling to” the spindle unit revolve with the rack wheel. When the material enter into the crushing chamber, spindle assembly (spindle, inner cone) rotate slowly inside the eccentric copper bushing under the resistance of material. The inner cone is oscillating inside the crushing chamber, which can extruding and crushing the material. When some unbroken materials like metal block falling into the cone crusher, the movable cone rise up by the lower piston, which plays the role of adjusting discharge outlet, iron passing protection and eliminate ore blocking.


4.Parameter

RGP500SDischarge Opening(c.s.s)45mm50mm55mm60mm65mm70mm75mm
18mm300-350325-375375-425400-450425-475450-500500-550
25mm500-550550-600600-650650-700700-750750-800
32mm650-700700-750750-800825-875900-950
40mm900-950970-1050

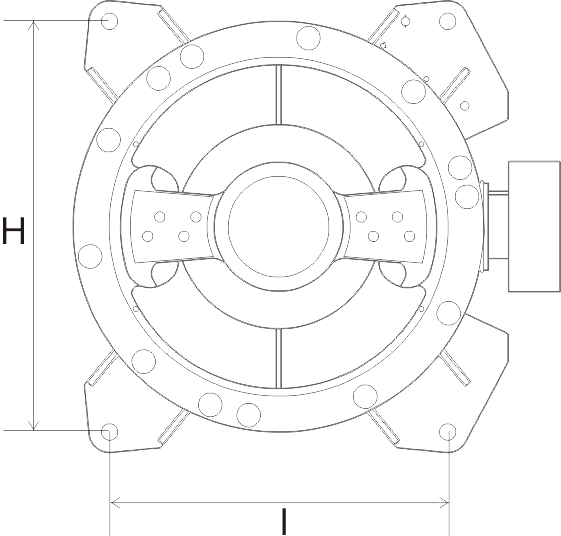

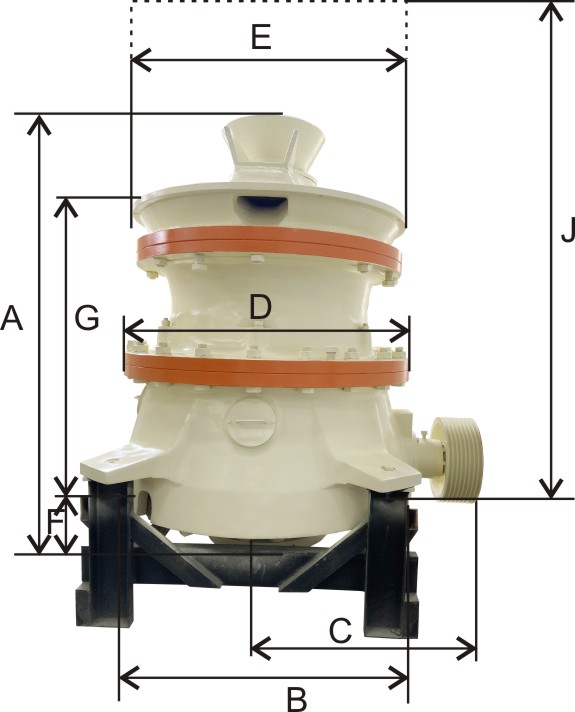

5.Dimensions and weight

ModelRGP500S
Total Weight,kg*35000
Weight during maintenance,kg11000
Size
A3227
BΦ2300
C1587
DΦ2330
EΦ2330
F1275
G2100
H2225
I1676
J**)3756
J***)4420
Motor Power,kw200-355
Stroke options18,25,28,32,36,40
Remark:1.Cone Crusher weight mentioned above without including accessories, given the weight with the heaviest crushing chamber
2.From the shock absorber to the top of the hopper
3.From the shock absorber to the top of the feed hopper with the upper rack

6.Feed Opening Size

CavityTypeRGP500S
M
C380mm
EC500mm

M=Medium Cavity Type

C= Coarse Cavity Type
EC=Extra Coarse Cavity Type


7.Structure

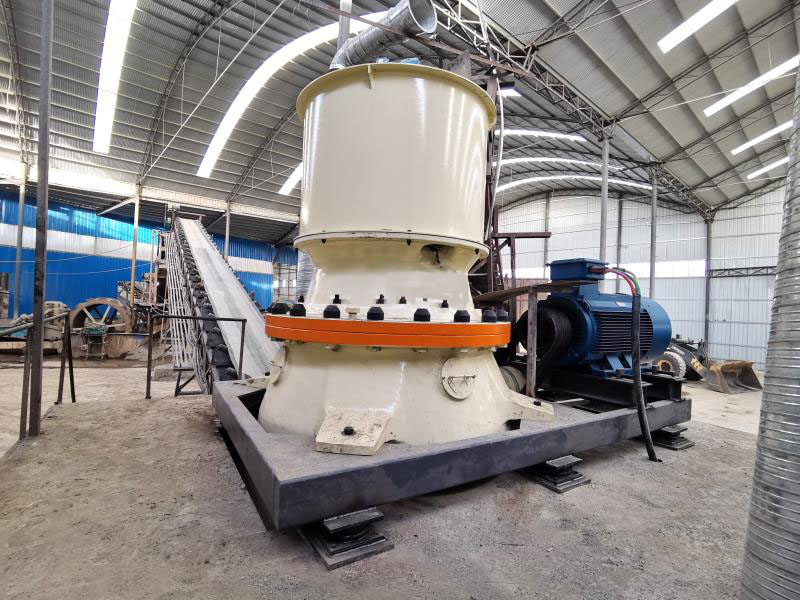

8.Construction Site
