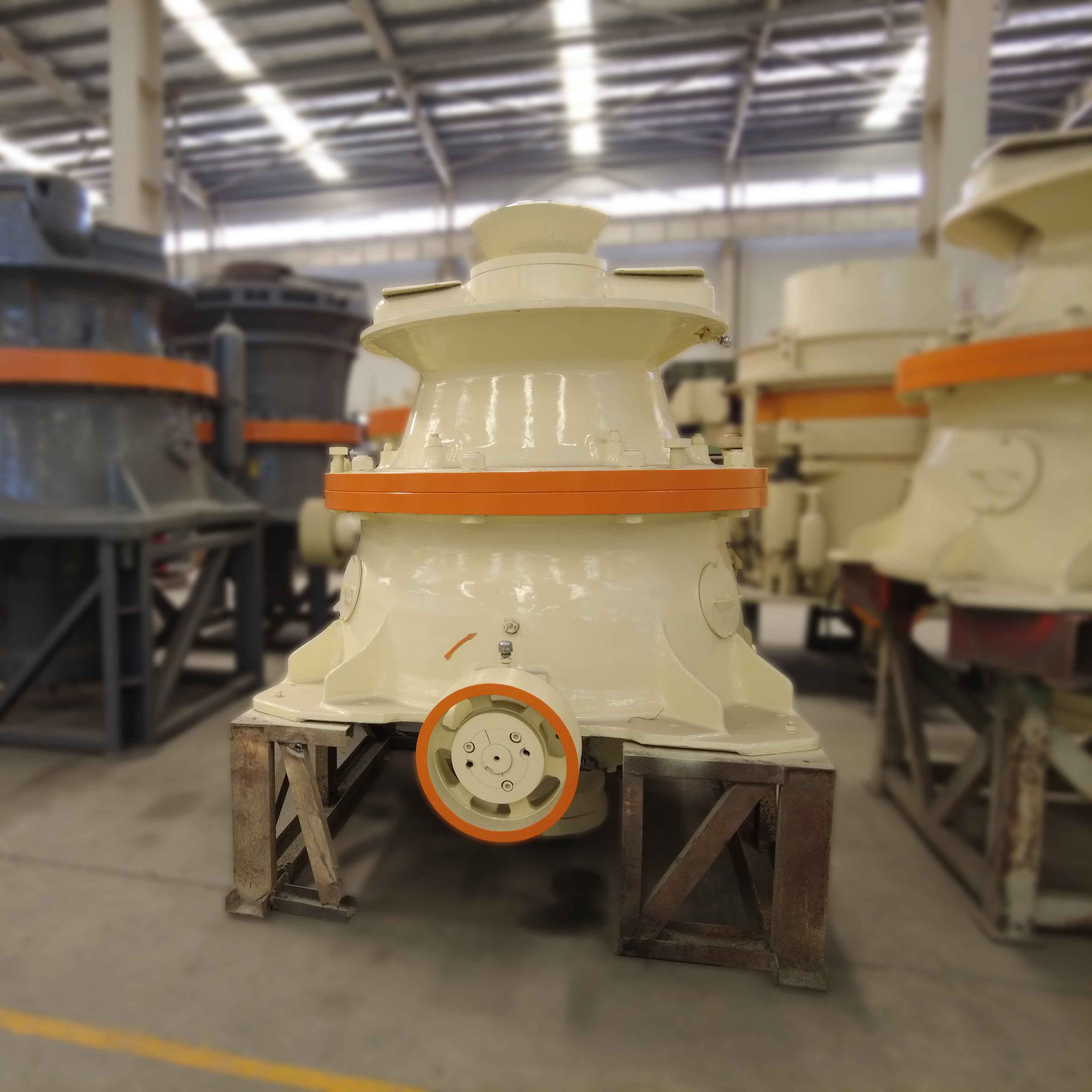

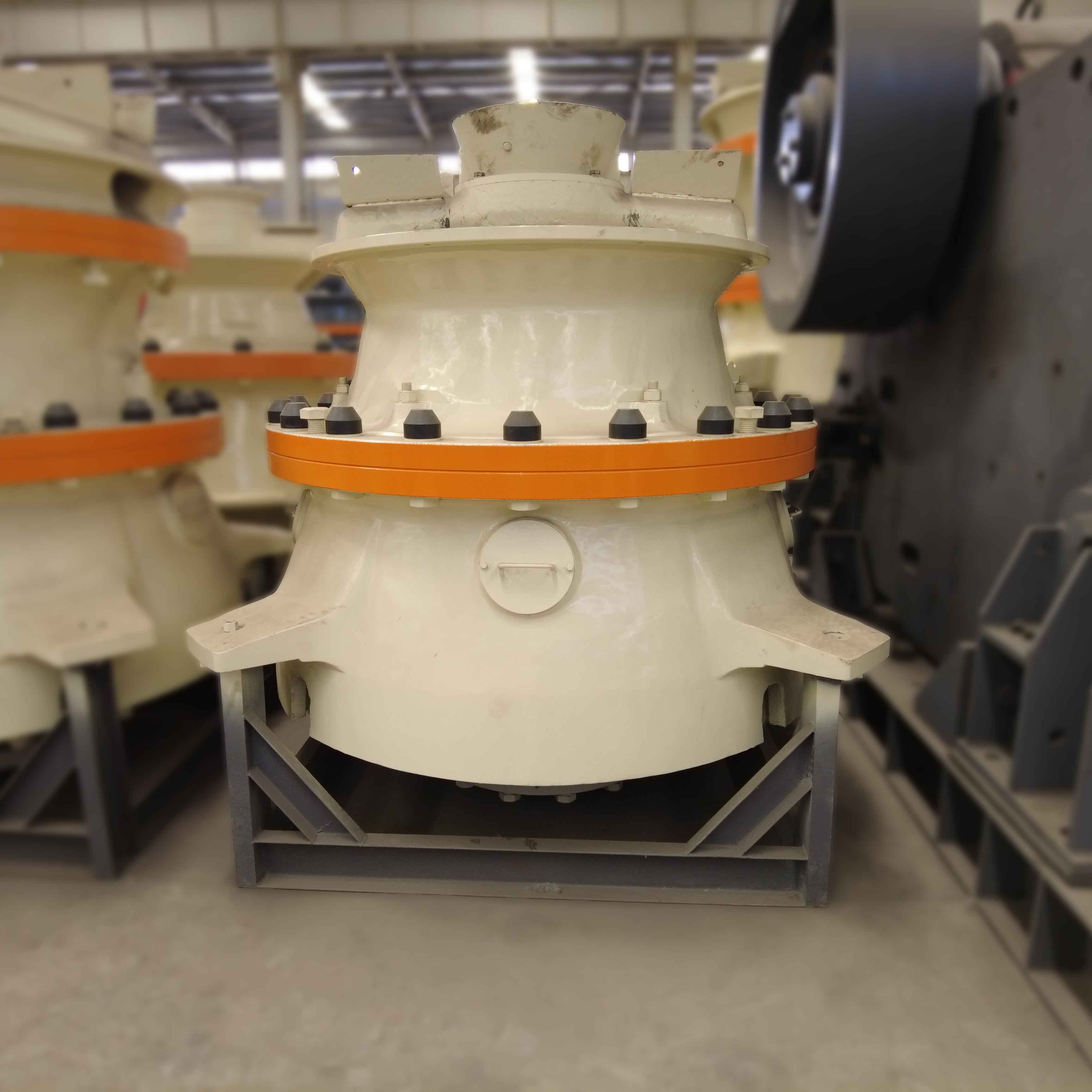

Single Cylinder Cone Crusher Machine For Quartz Stone Secondary Crushing

RGP Series Model Best Quality Single Cylinder Hydraulic Cone Crusher For Quartz Stone Secondary Crushing

Description

RGP Series Single Cylinder Hydraulic Cone Crusher is one of advanced cone crusher in China, which is developed and manufactured by our company. The machine is one kind of high-class product combined with mechanical technology, electrical technology, hydraulic technology and advanced crushing technology. RGP Series Single Cylinder Hydraulic Cone Crusher combines crushing stroke with crushing chamber perfectly, which makes capacity improved and efficiency increased. Besides, hydraulic lubrication control system helps bearing of hydraulic cone crusher get double protection.

Features

• The main shaft is fixed and the eccentric sleeve rotates around the main shaft, which can withstand greater crushing power. Reasonable eccentricity, cavity type and motion parameters coordination greatly improve production capacity and work efficiency.
• Convenient operation and maintenance, adding automatic functions such as lubrication return oil flow monitoring, horizontal shaft speed monitoring, vibration monitoring, automatic feeding control, etc., extend the service life of the equipment and make the crushing system have a more stable and intelligent operation capability.
• It adopts a visualized sensor value, a visually configurable alarm scheme, and a more flexible Internet measurement and control docking scheme.

Advantages

• Optimize and improve the product structure, material, processing and assembly process, so as to ensure the reliability of the host machine;
• specially designed cavity type and lining material make the lining plate more efficient, equipped with positive pressure dust control system to ensure the lubricating oil inside the main engine is free from dust pollution
• Scientific and reasonable crushing chamber type, combined with optimal crushing chamber, reasonable eccentricity, optimal swing frequency and laminating crushing principle, the machine has a large throughput capacity, high productivity, good products shape and low energy consumption;
• According to different feed and finished material size, match the reasonable cavity type, adopt the steel bottom frame or the motor and the main machine to install in one, which can be short time-cost and minimum installation cost.

• Less spare part consumption and low operation cost.

Working Principle

When working, the rotation of the motor drives the belt pulley, the transmission shaft and the cone part to swing under the force of the eccentric sleeve, so that the crushing wall of the cone crusher sometimes approaches and sometimes leaves the surface of the white wall fixed on the upper frame. The ore is continuously impacted and crushed in the crushing cavity, and the crushed materials are discharged from the lower part. Adjustment of the size of the discharge port: The first function of the bottom hydraulic cylinder is to adjust the up and down position of the main shaft, thereby adjusting the distance between the movable cone and the outer cone liner. The smaller the distance, the smaller the discharging granularity of the crusher; the larger the distance, the larger the discharging granularity of the crusher. At the same time, choosing different crushing cavity types and choosing different eccentricity can also change the size of the material discharge.

Parameter

Having traded for more than 16 years, since Aowei Machinery establishment date, we have completed hundreds of projects, especially in the field of Vibration Feeder, Jaw Crusher, Single Cylinder Hydraulic Cone Crusher, Multi-Cylinder Hydraulic Cone Crusher, Impact Crusher, Vertical Shaft Impact Crusher, Stationary Vibrating Screen, Sand Washer, Mobile Crushing Plant, etc.

These products can be widely used for sand and aggregate production and crushing processing of various mineral in many industries such as metallurgy, mine building materials, transportation, hydropower, steel, buildings, energy materials, metallurgical slags, construction waste processing, etc.

Our target is to absorb technology from all over the world and develop our own creative capacity, to provide crusher series and spare parts with superior quality and best price.

The company specialized in manufacturing various crushing equipment, screening equipment, mill machine, washers, feeders, conveyors, environmental and dedusting machine. We provide a series of complete solution, flow design, machine installation, commissioning, training, and after-sale service. All of our products have obtained ISO9001 and CE (EU) certification.

Now, we focus on the products and technology development of crushing and grinding machinery. Continue offering the professional solution plan of complete crushing and grinding system.

With the professional international trading experience, we can accept all kinds of payment terms, like T/T, L/C At Sight, Deferred L/C, DA, DP etc. For International Bidder, we also have the richest experience.

As the professional supplier of crushers, we join more than 5 specialized exhibitions every year, complete sales of more than 10 million USD every year and finish more than 15 tenders every year. As our slogan: Aowei Crusher, Create your new life! We are looking forward to figuring out different solutions for all industry area.

Warmly welcome to establish the business relations with you around the world!
