APP Free 10MHz 20-305mm Color Doppler Ultrasound Scanner

Categories	Color Doppler Ultrasound Scanner
Brand Name:	BIO
Model Number:	U3
Place of Origin:	China
MOQ:	1 unit
Payment Terms:	Credit card, Paypal, T/T
Supply Ability:	100 units / month
Delivery Time:	7 working - days since getting full payment
Packaging Details:	Carton (185X105X55mm) 1kg/carton
Applicable department:	Primacy Care, Emergency EMS, Wellness, Interventional, Med School, OB/GYN, Anesthesia,Breast, Pain Management, Sports Medicine, Globel Health, Clinical Research
Display mode:	B, B/M, Color Doppler, PW, Power Doppler
Frequency:	Convex: 3.5~5MHz, Linear: 7.5~10MHz
Measurement:	B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW(BPD, FL); B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth
Probe port:	USB or Wifi
Depth:	Convex:90~305mm Linear:20~100mm
Weight:	120g
Language:	Chinese, English, Russian, Italian, Spanish, Portuguese

Contact Now

Add to Cart

Company Info.

Wuxi Biomedical Technology Co., Ltd.

Verified Supplier

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

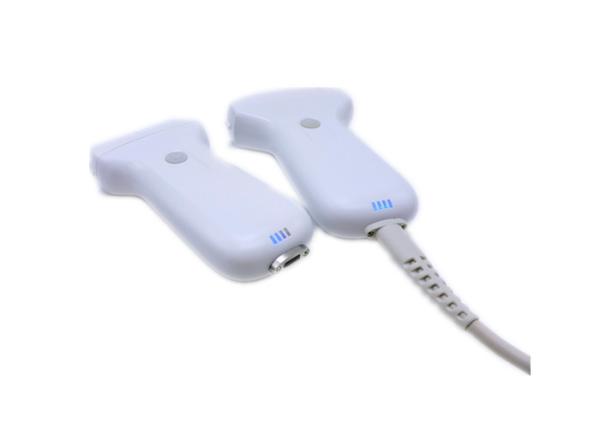

APP Free 10MHz 20-305mm Color Doppler Ultrasound Scanner

APP Free USB & WiFi Connections Both Available Color Doppler Ultrasound Scanner 8 TGC

20~305mm Scanning Depth

Features

Both USB and Wifi
Exceptional image quality with Ipad/Android /windows display
Durable design-can be extended to two years warranty
Save and view images as needed
Software upgrades via iPad/iPhone APP store
OEM/ODM

Both USB and WIFI Wireless Ultrasound Technical Specifications

Picture	U3 Convex U3 Linear
Type	Convex / Linear
Frequency	Convex:3.5/5.0MHz; Linear:7.5/10MHz
Depth	Convex:90~305mm; Linear:20~100mm
Elements	128
Radius	Convex: R60
Length	Linear: 46mm
Dimensions	Convex: 115(h)x70(w)x20(d)mm Linear: 115(h)x60(w)x20(d) mm
Package size	240(h)x235(w)x100(d) mm
Net weight	Convex: 125g Linear:102g
Gross weight	1KGS
Wifi type	802.11n/20MHz/5G
APP interface	GN(gain) 30-105
Adjustment	D(depth) ENH(enhancement) 0-4 DR(dynamic range) 40-110 F(frequency) 3.5-10MHz Mode B, B+M ,B+Color ,B+PW ,B+PDI 8 TGC Measure B:Length,Area,Circumference,GA (CRL,BPD,GS,FL,HC,AC) B+M: Heart Rate, Time, Distance B+PW:Velocity, Heart Rate(2), S/D, Depth
Battery Life	5~8 years
Voltage	3.8v
Replaceable	Yes
Capacity	1350mAh
Standby	1~4h
Bootup	Platform dependent, generally <5 seconds
Application	Convex: Abdominal;Emergency Cardiac Obstetrics / Gynecology;Lung;Kidney;Urology Linear: Breast; Thyroid;MSK;Superficial; Vascular;Pediatrics;Carotid;Small Parts
Software	Android/ Windows / IOS ,Download for free

Model	U3 Convex	U3 Linear
Type	Convex	Linear
Frequency	3.5-5MHz	7.5-10MHz
Depth	90-305mm	20-100mm
Elements	128	128
Radius	R60	N/A
Length	N/A	46mm
Display mode	B, BM, THI, Color, Power, PW	B, BM, THI, Color, Power, PW
APP interface adjustment	GN(gain) D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Focus Biopsy Annote, Page Left/Right Up/Down 8TGC	GN(gain) D(depth) ENH(enhancement) DR(dynamic range) F(frequency) PRF WF Focus Biopsy Annote, Page Left/Right Up/Down 8TGC
Measurement	B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth	B: Length, Area/Circumference, Angle,Trace,Distance GA(CRL,BPD,GS,FL,HC,AC) EFW (BPD, FL) B+M: Heart Rate, Time, Distance B+PW: Velocity, Heart Rate (2), S/D, Depth
Dimensions	115(h)70(w)20(d)mm	115(h)60(w)20(d)mm
Package size	185(h)105(w)55(d)mm	185(h)105(w)55(d)mm
Net weight	120g	102g
Gross weight	1kg	1kg
Wifi type	802.11g/20MHz/5G	802.11g/20MHz/5G
Connection type	WiFi & USB	WiFi & USB
Supporting Device	Tablet, Smart phone, PC, etc.	Tablet, Smart phone, PC, etc.
Working system	Android, iOS, Windows	Android, iOS, Windows
Application	Abdominal Emergency Cardiac Obstetrics / Gynecology Lung Kidney Urology	Breast Thyroid MSK Superficial Vascular Pediatrics Carotid Small Parts
Language	Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil)	Chinese,English,Russian,Italian, Spanish,Portuguese(Brazil)
Battery life	5-8 years	5-8 years
Voltage	3.8v	3.8v
Replaceable	Yes	Yes
Capacity	1350mAh	1350mAh
Standby	12h	12h
Bootup	Platform dependent, generally <5 seconds	Platform dependent, generally <5 seconds

Standard Configuration

1	Wireless probe	1pc
2	USB cable	1pc
3	Power Plug	1pc
4	Wireless charger	1pc
5	Wrist strap	1pc
6	Portable aluminium alloy box	1pc
7	User's Manual_E format	1pc
8	Warranty Card_Eformat	1pc
