| Categories | Color Doppler Ultrasound Scanner |
|---|---|
| Brand Name: | BIO |
| Model Number: | 5000Q |
| Place of Origin: | China |
| MOQ: | 1 unit |
| Payment Terms: | Credit card, Paypal, T/T |
| Supply Ability: | 100units / month |
| Delivery Time: | 7 working - days since getting full payment |
| Packaging Details: | Carton (50*25*52cm) / 10.5Kg |
| Imaging Modes: | B, B|B, 4B, B|M, M, Color Doppler (CFM), Power Doppler (PDI) |
| Scanning Method: | electronic linear, electronic convex, electronic micro-convex |
| Scanning Depth: | 2-24cm |
| Image and video: | AVI, JPG, BMP, PNG, TIF, DCM (DICOM) |
| Display mode: | B, B&M, 2B, 4B, THI, Color, Power, PW |
| Measurements and Calculations Software Packages: | Obstetrics, Gynecology, Abdominal, Urology, Endocrinology, Vascular, Cardiology, etc |
| Company Info. |
| Wuxi Biomedical Technology Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |
Portable 3D Ultrasound Machine Color Doppler Ultrasound Scanner with 15 Inch LED Screen
Feature
| 1. | CFM, PDI, DPDI, PWD, Duplex, Triplex, HPRF, THI |
| 2. | High definition image |
| 3. | Very thin, light and pretty |
| 4. | 15inch LED Screen |
| 5. | Built-in Battery |
| 6. | 3D imaging(option) |
| 7. | Abundant functions, Multilingual |
| 8. | Hardisk, USB storage |
Specification
| 1. | Imaging Modes | - B, B|B, 4B, B|M, M - Color Doppler (CFM) - Power Doppler (PDI) - Directional Power Doppler (DPDI) - Pulsed Wave Doppler (PWD) - B+PWD (Duplex) - B+CFM/PDI/DPDI+PWD (Triplex) - High Pulse Repetition Frequency (HPRF) - Tissue Harmonic Imaging (THI) |
| 2. | Scanning Method | electronic linear, electronic convex, electronic micro-convex |
| 3. | Scanning Depth | 2-24cm |
| 4. | Color Doppler | - PRF variable: 0.5-9 kHz - Wall filter settings: 3 steps (5%, %10%, 15% PRF) - Angle steering for linear transducers: ±10° - Real-time spatial filter: 4 values - CFM palette>10 maps - PDI palette>10 maps - B/Color priority control - Color threshold control - CFM baseline control - Doppler frequency selection - Color frame averaging - Transparent Color Mapping (TCM) |
| 5. | Pulsed Wave Doppler: | - PRF variable: 1-10 kHz - Wall filter settings: 16 steps (2.5%-20% PRF) - Angle steering for linear transducers: ±10° - Real-time trace line with automatic calculation of spectrum parameters - Stereo sound: volume control - PWD palette>10 maps - Doppler frequency selection |
| 6. | Processing | - High Line Density scan mode for better resolution - 8 sliders TGC Control - Dynamic range>120 dB - Overall gain control - M - mode sweep speed control - Acoustic power control - Variable frame averaging - Brightness, contrast - Advanced gamma control - Scan direction, rotation, up-down controls - Negative / positive control - Echo enhancement control - Noise rejection function - Speckle reduction |
| 7. | Image and video: | AVI, JPG, BMP, PNG, TIF, DCM (DICOM) |
| 8. | General Measurements and Calculations | Distance, Length, Area, Circumference, Volume, Angle, Stenosis %, A/B Ratio, Velocity, Pressure Gradient (PG), Acceleration, Resistivity Index (RI), Heart Rate, Velocity Time Integral (VTI), etc. |
| 9. | Measurements and Calculations Software Packages | Obstetrics, Gynecology, Abdominal, Urology, Endocrinology, Vascular, Cardiology, etc. |
| 10. | Expansion interfaces | - VGA, TV Interface - USB2.0 Interface - RJ-45 Network interface - Support DeskJet printer, LaserJet printer, video printer |
Standard Configuration
| 1. | Host machine | 1 unit |
| 2. | Convex probe | 1 pc |
| 3. | Lienar or Trans-vaginal probe | 1 pc |
Optional
| 1. | Linear probe | 1 pc |
| 2. | Trans-vaginal probe | 1 pc |
| 3. | Micro-convex | 1 pc |
| 4. | Rectal probe | 1 pc |
| 5. | 3D imaging software | 1 set |
| 6. | Bag | 1 pc |
| 7. | Trolley | 1 unit |
| 8. | Laser Printer | 1 unit |
| 9. | Video Printer | 1 unit |

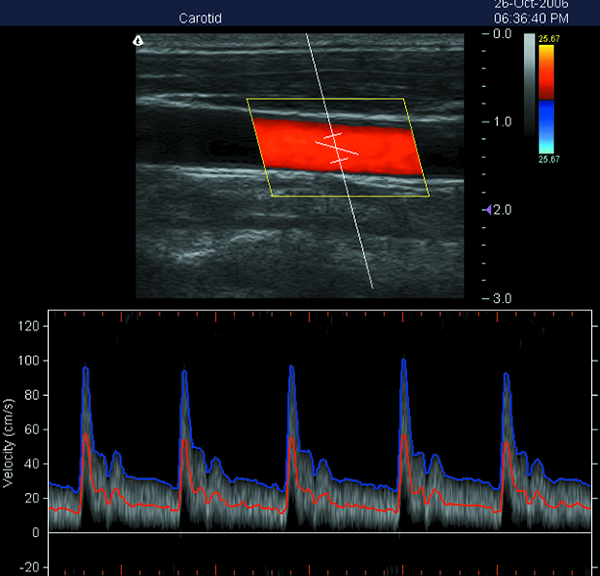

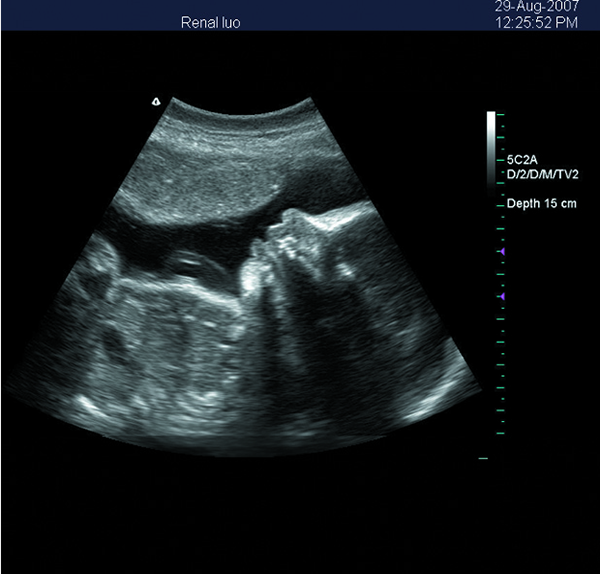

Images
|
