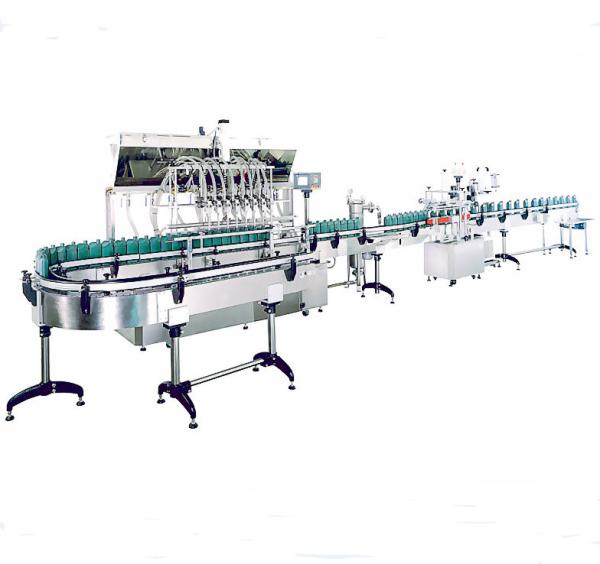

60Hz GMP Bottle Liquid Filling Machine Servo Motor Cosmetic Cream

Automatic servo motor driving piston pump liquid filling machine cream filling line

Model: AFM-880

Standard Specification:

Power: 3ph/380V, 50/60Hz 5.5KW

Filling Volume: 100-1000ml

Air Pressure: 0.6Mpa

Filling speed: 25-35 bottles per min.

Accuracy: +-2%

Application:

*Customer product: liquid and cream liquid;

Features:

*#304 Stainless steel machine casing, transparent safety door to fit GMP standard

*Piston pump driven by a servo motor

*Piston is made of #316 stainless steel

*Filling driven by servo motor, filling nozzle with block cylinder to avoid leakage,

*Filling volume is adjusted on touch screen

* Delta PLC with a touch screen control panel

*Pneumatic component brand: Air-Tac; SMC can be an option;

*Stainless steel liquid tank on top (With a liquid level control signal) and refill valve inlet (refill pump is an option)

Shenzhen Ouya Industry Co., Ltd. is established on 2002 year, we are the export business company for Alpha Pack Group at China. Our major project is difference packing machine , such as: Rotary filling and sealing packing machine, horizontal flow wrapping machine, automatic can sealing machine, automatic filling, capping and labeling production line. Since the company has been founded, Alpha-Pack cooperated with many famous European packaging machinery manufacturers to make the packaging machinery for worldwide market. As the name in Chinese “欧华”，means we made the machine with European standard but in Chinese manufacturing cost . Thanks to the trust from all the business partners, customers and staffs, Alpha-Pack has been grown as one of the biggest packaging machinery manufacturing group in South China, with more than 80,000 m2 manufacturing workshops in China and Europe, Alpha-Pack became the leading packaging manufacturer in China
