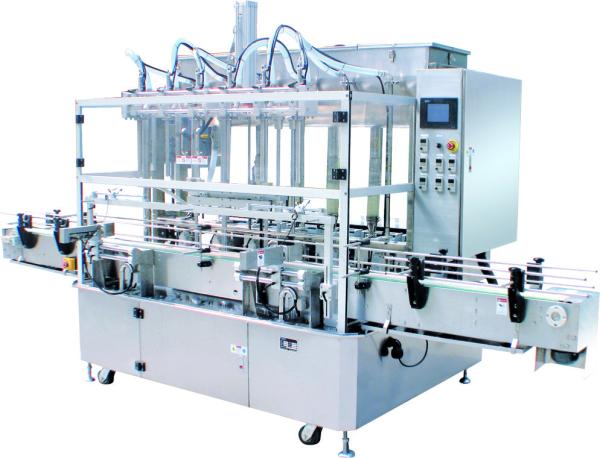

500ml Piston Mayonnaise Filling Machine , SUS316 Automatic Liquid Filling Machine Servo

Automatic filling machine with Servo driving piston pump

Model: AFM-840/860

Application:

This machine is designed to handle water-thin to very viscid fluids (Max. 50000 cps), No change parts are needed and fill volume is changed by LCD touch screen control panel. Special application for Shampoo, Lotion, Honey, Chili Sauce, Tomato Ketchup, Edible oil, Motor Oil and medical, Cosmetic, Chemical liquid product etc.

Features:

*Stainless steel frame construction to meet GMP requirement

*Sanitary Rotary Lobe pump performs filling viscous and general product, pump head made from stainless steel

*Pump type: Butterfly type to allow particle

*Each rotary pump is driven by an individual AC motor and controlled by torque control frequency inverter for high accuracy of liquid filling (Or control by servo motor)

*Pump size: big pump 20L/ 100 turns (ZB3A-20)

*”Panasonic” PLC combined with “KINCO” touch screen control panel

*Digital setting allows different filling volume adjustment easily

*No change parts are required for different bottle size except a bottle neck clamping plate

*Diving type filling nozzle, good for foaming products

*Filling nozzles leakage block cylinder

*leakage colleting tray

*Filling adopts SUS#316 rotameter (The rotameter is an industrial flowmeter that is used to measure the flow of liquids and gases.)

*Filling nozzle made of SUS#316 with anti-dripping cylinder

*Filling base can be adjusted up and down

*200 Liter stainless steel liquid tank (With Liquid level control signal, not including the feeding pump)

* No Bottle No Filling

* Conveyor width: will be confirmed depend on bottle width

*Conveyor length: About 3.5m depend on customer layout

* The parts contacting the liquid are SUS#316

*SUS#304 machine frame with waste collecting pan

*conveyor with chain and inverter

* Safety guard (stainless steel frame and glass door) with interlock system to automatically stop machine when opening the door

* “Air-tac” Pneumatic parts
