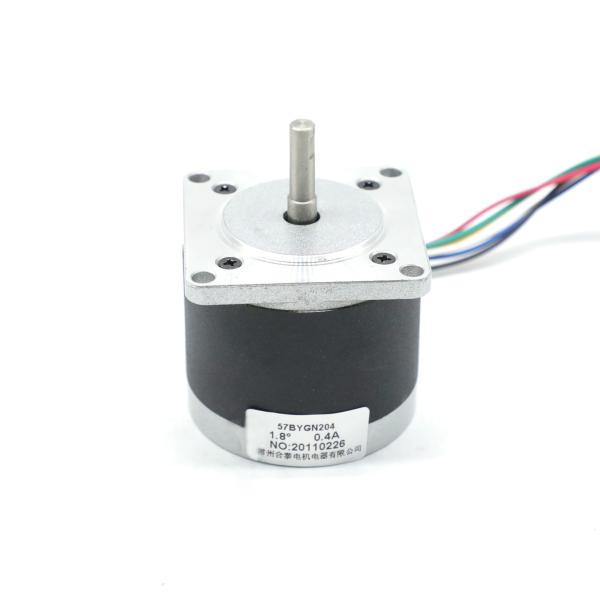

3.8 Kg Cm Nema 23 High Torque Hybrid Stepper Motor 6 Wire 11.2V 0.4A 57mm

57BYGN204 low noise NEMA 23 hybrid stepper motor 11.2V 0.4A can be customized

57BYGN204, Voltage 11.2V, Current 0.4A, Holding torque 3.8 Kg.cm, Resistance 28 Ω/phase

57BYGN001, Voltage 12V, Current 0.38A, Holding torque 3.0 Kg.cm, Resistance 32 Ω/phase

57BYGN027, Voltage 2.8V, Current 1.4A, Holding torque 3.9 Kg.cm, Resistance 2.1 Ω/phase

Electrical Specification

*Products can be customized by special request.

Wiring Diagram

Mechanical Dimension

Specification of Other Models:

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (KG.CM)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
57BYGN001	1.8	6	12	0.38	32	25	3.0	41	0.45
57BYGN027	1.8	4	2.8	1.4	2.1	3.5	3.9	41	0.45
57BYGN200-19A	1.8	6	5	1.0	5.0	11.5	5.8	51	0.65
57BYGN204	1.8	6	11.2	0.4	28	30	3.8	51	0.65
57BYGN400-11A	1.8	4	5.5	1.1	5.0	12	7.8	56	0.70
57BYGN412	1.8	4	4.4	2.0	2.2	6.3	9.0	56	0.70

*Products can be customized by special request.

*Can match with gearbox 42, 52, 56

Based on all these advantages, our company specializes in producing hybrid stepping motors, DC brushless motors, servo motors, gearbox motors and so on. The products are applied in robots, packing machinery, textile machinery, medical instruments, printing machinery, intelligent logistics equipment... Hetai also sends its products to USA, Europe, Southeast Asia and all-around China.

Advantages:

1. The rotation angle of the motor is proportional to the input pulse.

2. The motor has full torque at standstill(if the windings are energized)

3. Precise positioning and repeatability of movement since good stepper motors have an accuracy of 3 – 5% of a step and this error is noncumulative from one step to the next.

4. Excellent response to starting/stopping/reversing.

5. Very reliable since there are no contact brushes in the motor. Therefore the life of the motor is simply dependant on the life of the bearing.

6. The motors response to digital input pulses provides open-loop control, making the motor simpler and less

costly to control.

7. It is possible to achieve very low-speed synchronous rotation with a load that is directly coupled to the shaft.

8. A wide range of rotational speeds can be realized as the speed is proportional to the frequency of the input

pulses.
