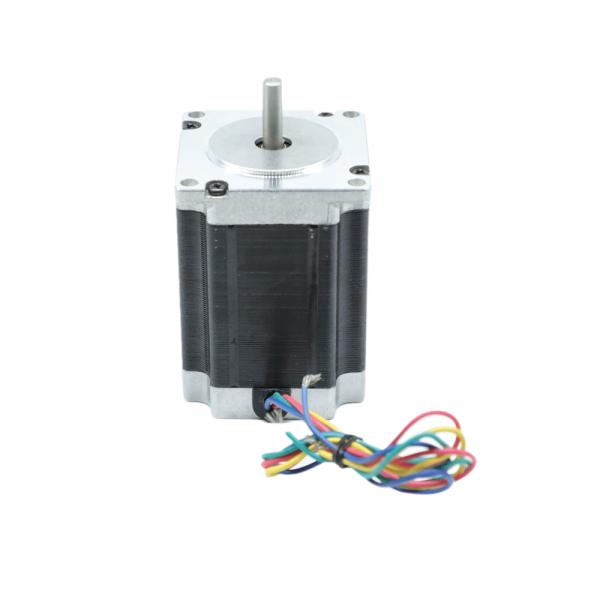

57mm Nema 23 Stepper Motor 0.9 Degree High Torque 1.76 Nm 17 Kg Cm 4 Wire

57BYGHM607-02 CE ROHS ISO New Type High Torque Nema 23 Micro Stepper Motor DC

Warranty:

1 year

Place of Origin:

Changzhou, China

Brand Name:

Hetai

Certification:

CE, RoHS, ISO

Type:

Stepper motor

Torque:

1.76 N.m

Construction:

Electro-Magnetism

Product Feature:

0.9-degree step angle
IP level:

IP 40

Electrical Specification

*Products can be customized by special request.

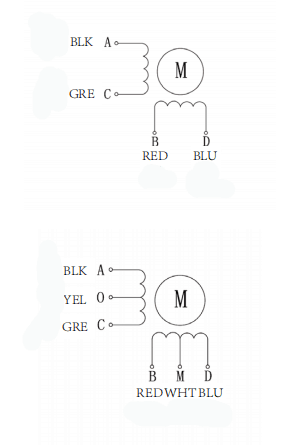

Wiring Diagram

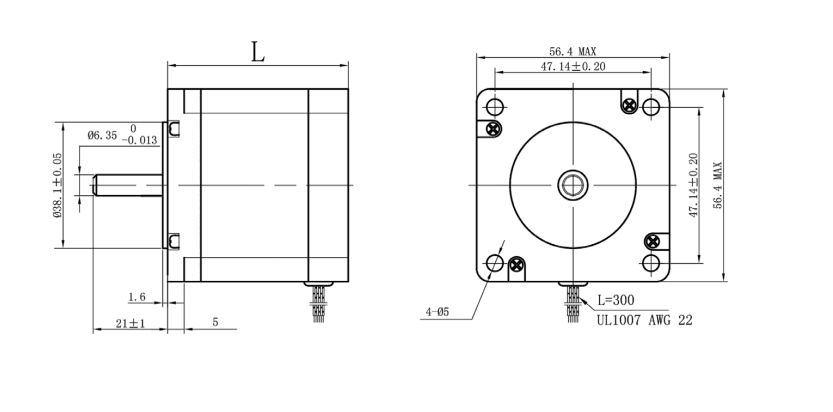

Mechanical Dimension

Specification of Other Models:

MODEL	STEP ANGLE (°/STEP)	LEAD WIRE (NO.)	VOLTAGE (V)	CURRENT (A/PHASE)	RESISTANCE (Ω/PHASE)	INDUCTANCE (MH/PHASE)	HOLDING TORQUE (KG.CM)	MOTOR HEIGHT L(MM)	MOTOR WEIGHT (KG)
57BYGHM002-01	0.9	6	2.8	2.0	1.4	2.0	3.5	41	0.45
57BYGHM200-03A	0.9	4	3.4	1.0	3.4	12	7.0	51	0.56
57BYGHM203-04	0.9	6	12	0.38	32.0	38	5.5	51	0.56
57BYGHM401-09	0.9	6	7.4	1.0	7.4	17	9.0	56	0.70
57BYGHM414	0.9	4	1.7	4.2	0.4	1.0	11	56	0.70
57BYGHM604-17	0.9	4	3.2	2.8	1.13	6.4	15	78	1.00
57BYGHM601-05	0.9	6	8.6	1.0	8.6	20	13	78	1.00

*Products can be customized by special request.

*Can match with gearbox 42, 52, 56
