Passive DC12V 450mm Infrared Object Detection Sensor For Electronic Lockers

Categories Electronic Locking System
Brand Name: KERONG
Model Number: KR-IR
Certification: CE/FCC/ROSH
Place of Origin: China
MOQ: 1 piece
Price: Agreeable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 50,000 per month
Delivery Time: 5-15 days working time
Packaging Details: The material of Package: K=K Reinforcement Carton;Carton:30PCS/CTN
Product name: Infrared sensor control for locker locks
Communication: TCP/IP LANs and WANs control
Sensing distance: 450mm-900mm
Material: PCB (Printed Circuit Board)+cold rolled plate
Power supply: DC12 V~24 V
Dimension of metal shell: L402*W18*H18mm
Power consumption: Less than 100mA
Detector quantity: 4 detectors
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Passive DC12V 450mm Infrared Object Detection Sensor For Electronic Lockers

Product parameters

ModelKR- IR
DefinitionInfrared sensor rails
FunctionDetect locker is empty or occupied; supply light when the locker is open
MaterialPCB (Printed Circuit Board)+cold rolled plate
Surface treatmentPainting
The dimension of the metal shellL402*W18*H18mm
Dimension of chipL300*W13*H12mm
Microprocessor moduleSTM8S103K3T6 QFP32(P0.8mmBS7*7mm)
Reaction timeLess than 500ms
The dimension of protecting the shellL160*W90*H35mm
Detector quantity4 detectors
Detector spacing90mm
Maximum detecting distance450mm
Connector modelSM2.54 4P; SM2.54 2P
Working voltage12V~24V
Weight290g/pair
Power consumption1.2W
Lighting power consumption2.4W
Working current100mA
Working temperature-25℃ ~ +65℃
Working humidity5% ~ 95%RH
CertificationCE/ ISO9001/RoHS
Working life500,000 times
OEMCustomizing length and detector quantity of chip, dimension, and color of the shell


Infrared Object Detection Sensor for Electronic Lockers


Product Main Features

1. It works by receiving signals through connection with CU.

2. Detects whether storage is vacant or occupied by the signal.

3. When the lock is opened, it glows as an illumination.

4. Support customization according to different lockers chooses different sizes, colors, induction distance, etc.

5. Simple installation. With locker design drawings for better reference.


Product Details

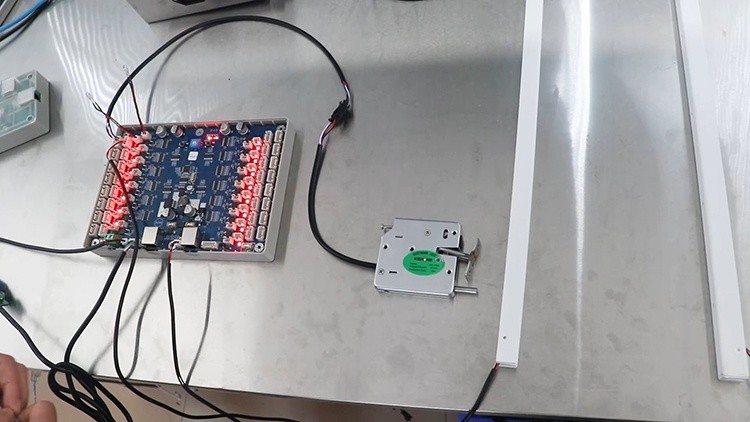

IR, lock, CU, BU, RS485 converter connection work


Product Applications

KR-IR for WeChat lockers, cell phone charging lockers, shared lockers, beach lockers, gym lockers, etc.


We provide cabinet locking solutions to create commissioning convenience for your project. Welcome to consult, 24 hours free of charge.
