Kerong DC12V Door Infrared Sensor Electronic Locking System

Categories Electronic Locking System
Brand Name: KERONG
Model Number: KR-IR
Certification: CE/FCC/ROSH
Place of Origin: China
MOQ: 1 piece
Price: Agreeable
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram,PayPal
Supply Ability: 50,000 per month
Delivery Time: 5-15 days working time
Packaging Details: The material of Package: K=K Reinforcement Carton;Carton:30PCS/CTN
Product name: Storage Electronic Locker System
Communication: TCP/IP LANs and WANs control
Surface treatment: Painting
Material: PCB (Printed Circuit Board)+cold rolled plate
Power supply: DC12 V~24 V
Dimension of metal shell: L402*W18*H18mm
Power consumption: Less than 100mA
Detector quantity: 4 detectors
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

Kerong DC12V Door Infrared Sensor Electronic Locking System

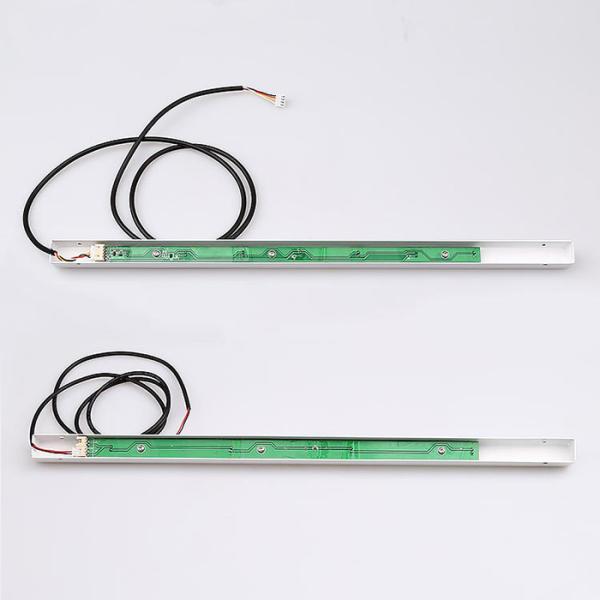

Infrared Sensor For Cabinet Lock


Product parameters

ModelKR- IR
BrandKERONG
DefinitionInfrared sensor rails
FunctionDetect locker is empty or occupied; supply light when the locker is open
MaterialPCB (Printed Circuit Board)+cold rolled plate
Surface treatmentPainting
The dimension of the metal shellL402*W18*H18mm
Dimension of chipL300*W13*H12mm
Microprocessor moduleSTM8S103K3T6 QFP32(P0.8mmBS7*7mm)
Weight290g/pair
Dimension of protecting the shellL160*W90*H35mm
Detector quantity4 detectors
Detector spacing90mm
Maximum detecting distance450mm
Connector modelSM2.54 4P; SM2.54 2P
Working voltage12V~24V
Working current100mA
Power consumption1.2W
Lighting power consumption2.4W
Reaction timeLess than 500ms
Working temperature-25℃ ~ +65℃
Working humidity5% ~ 95%RH
CertificationCE; ISO9001; RoHS
Working life500,000 times
OEMCustomizing length and detector quantity of chip, dimension, and color of the shell

Product Main Features

1. Co-work with CU.

2. Detecting locker is empty or occupied.

3. Supplying light when the lock is open.

4. Support customizing dimensions and colors for various locker designs.

5. Easy installation. With locker design drawings for better reference.

Product Details

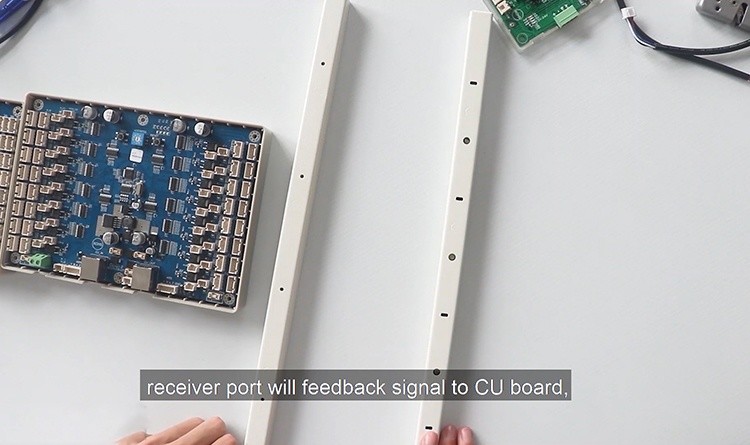

After receiving the information from the CU, it gives feedback on the status of the lock, is it on or still off?
