Non Combustible Coated Ceramic Wire Wound Power Resistor 6.3A

Categories Thermal Fuse Resistor
Brand Name: JULUN
Model Number: BT212 Time Lag SUB-miniature fuse
Certification: CE/UL/VDE/KC/CCC
Place of Origin: CHINA
MOQ: 1500/ Negotiable
Price: Negotiable
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Delivery Time: 7~10 Working days
Packaging Details: Standard carton
Type: 212
Material: Ceramics
Voltage: 125V/250v
Current: 0.1-6.3A
MOQ: 1500
Volume: Sub-miniature
use in: PCB Home appliances light and so on
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

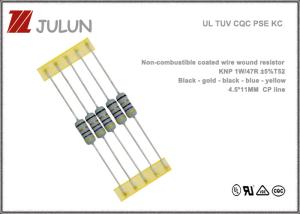

Non Combustible Coated Ceramic Wire Wound Power Resistor 6.3A

Non-Combustible Coated Wire Wound Resistor Pulse Overload Within ±(2%+0.05Ω)

OC_212-datasheet.pdf

Wirewound Resistors KNR


1,Good heat-durability. low temperature coefficient, low noise, high load power.

2,Operating ambient temperature:-55°C to +275°C.

3,Surface is nonflammable, the 1/4W-6W coating is gray white and indicate the resistance value by color ring, the 7W or over will indicate the resistance value by lettering or coating is green.

4,Resistance tolerance: ±1%, ±2%,±5%,±10%.


Power: 1/4W,1/2W,1W,2W,3W,4W,5W,6W,7W,8W,10W

Tolerance: ±1%, ±2%,±5%,±10%.

Range:0R01-47K


Mechanical Performance


The terminal shall withstand 4 bends of 90°rotation without any breakage or damage, when the Resistor is fixed in vertical position.

Fixing the resistor body, a static load of 2.5Kg is to be gradually applied into the terminal for 10seconds without causing any looseness and fall.

To bend the lead wire at the point of about 6mm from resistor body to 90°,then catch the wire at 1.2±0.4mm apart from the bend point end and turn it (clockwise) by 360 degrees Perpendicular to the resistor axis at speed of sane 5 seconds per turn, and do the same Counterclockwise again which constitute a whole turn. Repeat the turn for 2 times without Causing any break and looseness.


Description

Thermal fuses, defined as non-resettable, are single action devices that are widely used for the electrical equipments against over temperature. The thermal cutoffs are composed of the fusible alloy with low melting point and special resin, encapsulated in a plastic or ceramic housing. Under normal operated, the fusible alloy is joined by the two lead wires within the housing. When the thermal cutoff senses an abnormal heat and reach a preset temperature, the fusible alloy melts and disconnects the circuit completely with the aid of the special resin. Both Axial and Radial shapes are available, with rated current from 1A to 200A, Function temperature 76℃~221℃, certificated including UL, cUL, VDE,TUV,PSE, KTL, CCC and RoHS, REACH Compliant.

Competitive Advantage

1. Factory supply directly

2. Completed certificates such as UL,VDE,SGS,etc and high quality available

3. Quick delivery
4.
Improve after sales service system
