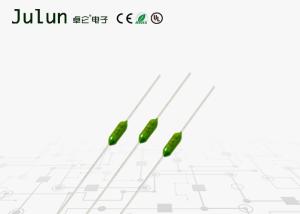

62mA - 15A 0251 Series Fast Acting Ceramic Fuse With 32V - 125V Voltage

62mA - 15A 0251 Series Fast Acting Ceramic Fuse With 32V - 125V Voltage

62mA - 15A 0251 Series Fast Acting Ceramic Fuse With 32V - 125V Voltage
62mA - 15A 0251 Series Fast Acting Ceramic Fuse With 32V - 125V Voltage
Categories Thermal Fuse Resistor
Brand Name: Julun
Model Number: 251 / 253
Certification: CE/UL/VDE/KC/ROHS
Place of Origin: CHINA
MOQ: 100 / Negotiable
Price: Negotiable
Payment Terms: L/C, D/P, T/T,
Supply Ability: 10000/Piece/Weekly
Delivery Time: 7~10 Working days
Packaging Details: Standard carton
Type: 0251
Material: Ceramics
Voltage: 32V~125V
Current: 62mA- 15A
Contact Now
Company Info.
JULUN (H.K)CO.,LTD (DONGGUAN JULUN ELECTRONICS CO.,LTD)
Verified Supplier
View Contact Details
Product List
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

62mA - 15A 0251 Series Fast Acting Ceramic Fuse With 32V - 125V Voltage

62mA - 15A 0251 Series Fast Acting Ceramic Fuse With 32V - 125V Voltage


The Very Fast-Acting Fuse is designed to meet an extensive array of performance characteristics in a space-saving subminiature package.


Features

• Very fast-acting

• Small size

• Wide current rating range (62mA- 15A)

• Halogen-free available

• Wide operating temperature range

• Low temperature rerating


Applications

• Flat–panel display TV

• LCD monitor

• LCD backlight inverter

• Office machines

• Power supply

• Audio/Video system

• Lighting system

• Medical equipment


Electrical Characteristics for Series

% of Ampere RatingAmpere RatingOpening Time
100%62mA - 15A4 Hours, Min.
200%62mA - 7A1 Second, Max.
10A3 Seconds, Max.
12 - 15A10 Seconds, Max.
275%500mA, 1A, 2A, 2.5A, 3A, 4A, 5A, 7A, 10A300 msecs., Max
400%500mA, 1A, 2A, 2.5A, 3A, 4A, 5A, 7A, 10A30 msecs., Max.
1000%500mA, 1A, 2A, 2.5A, 3A, 4A, 5A, 7A, 10A4 msecs., Max.

Electrical Specifications by Item

Ampere Ratingng (A)Amp CodedeOrdering Number ber (Std.)Ordering Number umber (Mil.)iMax Voltage Rating ng (V)Interrupting Ratingupting RatingNominal CoNominal Cold Resistance Resistance (Ohms)Nominal Melting g I 2t (A2 sec)Nom rNom Voltage Dropop (V)
.062
.062
251.062
253.062
125

300 A @ 125VDC

50 A @ 125VAC

For CCC 7A: 70A @ 125VAC

For CCC 10A: 100 A @ 125VAC

7.000
0.000113
1.4
.125
.125
251.125
253.125
125
1.700
0.00174
0.285
.200
.200
251.200
253.200
125
1.011
0.0048
0.345
.250
.250
251.250
253.250
125
0.665
0.0116
0.24
.375
.375
251.375
253.375
125
0.395
0.0296
0.215
.500
.500
251.500
253.500
125
0.280
0.0598
0.2165
.630
.630
251.630
125
0.205
0.094
0.188
.750
.750
251.750
253.750
125
0.175
0.153
0.176
1.00
001.
251001.
253001.
125
0.128
0.256
0.194
1.25
1.25
2511.25
125
0.100
0.390
0.2
1.50
01.5
25101.5
25301.5
125
0.0823
0.587
0.21
2.00
002.
251002.
253002.
125
0.0473
0.405
0.141
2.50
02.5
25102.5
125
0.0360
0.721
0.132
3.00
003.
251003.
253003.
125
0.0290
1.19
0.131
3.50
03.5
25103.5
125
0.0240
1.58
0.1205
4.00
004.
251004.
253004.
125
0.0204
2.45
0.114
5.00
005.
251005.
253005.
125
0.0155
4.14
0.11
7.00
007.
251007.
253007.
125
0.0105
10.4
0.102
10.0
010.
251010.
253010.
125
0.00705
25.5
0.1
12.0
012
251012.
32
300A@32VDC &50A@32VAC
0.0055
45.2
0.0878
15.0
015.
251015.
253015.
32
0.00446
68.8
0.071

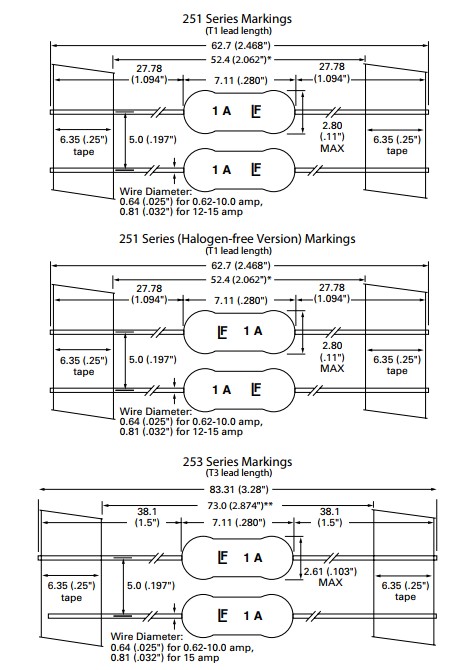

Dimensions


FAQ


Q: Are you trading company or manufacturer ?
A: We are a fuse and fuse holder factory.
Q: How long is your delivery time?
A: Generally it is 3 days if the goods are in stock. Or it is 5-10 days if the goods are not in stock, according to the quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: 100% in advance, T/T.


Please tell me:
What product specifications do you need? when you ask for a quotation.I will give you the most competitive price per as your requirements. And we have many types for you to choose.


P.S.:If you can't find any products to meet your requirements. welcome to send us the details drawings so that we can provide us our professional & best service to you.
