MSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe Fittings

Categories Forged Pipe Fittings
Brand Name: zexu
Model Number: 1/8"-4"
Certification: CE API ISO9001
Place of Origin: Hebei china
MOQ: 1pcs
Price: 20-27000USD
Payment Terms: T/T
Supply Ability: 30000ton/Year
Delivery Time: 5work days
Packaging Details: Wooden box
Material: Stainless Steel
Thread Type: NPT BSP BSPT
Technics: Forged, FORGED
Shape: Equal
Head Code: round
Color: silver
Connection: Welding
Application: Industry
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

MSS SP-83 CL3000 Forged Pipe Fittings , BSP Stainless Steel Pipe Fittings

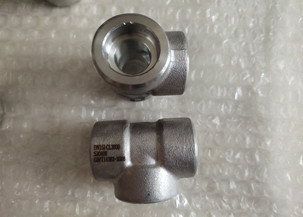

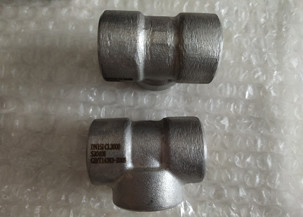

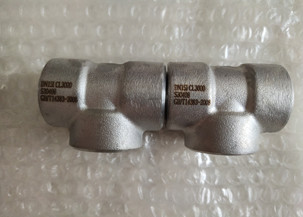

MSS SP-83 Socket Thread Equal Diameter Pipe Fittings Tee CL3000 Nuclear Power

The socket tee is mainly a high-pressure tee pipe connection fitting that is formed from round steel or steel ingots by die-forging blanks and then processed by a lathe.


DETAILED INFORMATION AS PER THE FOLLOWING FORM

TypeSocket Welded Fittings
Size1/2"~8" DN15~DN200
Pressure1500#,3000#,6000#
StandardsANSI, ASTM,DIN, JIS, BS, ISO, GB, SH, AND HG etc
Material

Carbon steel: ASTM/ASME A105
Alloy steel: ASTM/ASME A335 F5, F9, F11, F12,F22, F91

Stainless steel: ASTM/ASME A403 F304-304L,F316-316L,F321
High performance: ASTM/ASME A860 F42-46-52-60-65-70

Surface treatmentTransparent oil, rust-proof black oil or hot galvanized
Packingwooden case, pallet or as customers' requirement
ApplicationsPetroleum, chemical, power, gas, metallurgy, shipbuilding, construction, etc
Min order10 pieces
Delivery time7 after receipt of advanced payment
CertificationAPI, ISO9001:2000
Delivery TermFOB(30% down payment in advance, the balance before shipment)
CIF or C&F(30% in advance , the balance against with the copy of B/L)

3000 lbs FORGED TEEASME B16.11 Forged threaded tee
Nominal diameterCenter to end AEnd outer diameter HBody wall thicknessG minFull thread length L minEffective thread length Ltmin
DNNPT90°45°3000lbs
61/82117223.186.46.7
81/42519253.38.110.2
103/82822333.519.110.4
151/23325384.0910.913.6
203/43828464.3212.713.9
2514433564.9814.717.3
321.1/45135625.281718
401.1/26043755.5617.818.4
5026444847.141919.2
652.1/283521027.6523.628.9
80395641218.8425.930.5
10041147915211.1827.733
