Astm 304 316l Steel Forged Flange 5 Inch Full Size Sanitary Threaded Drainage Pipe Fittings

Categories Forged Pipe Fittings
Brand Name: ZEXU
Model Number: DN10 to DN2000
Certification: CE API
Place of Origin: Cangzhou, China
MOQ: Quantity(Pieces) 1 - 200 >200
Price: USD+US$10to US$1,00+PCS
Payment Terms: L/C, T/T
Supply Ability: 100000 Piece/Pieces per Week Forged Pipe Fittings
Delivery Time: 3-5 days
Packaging Details: Standard export packaging (outside the plywood box, inside the plastic cloth box)
Model Number:: ASTM 304 316L
Standard: ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME, ANSI, bs, DIN, GB, ISO, JIS,etc
Material: stainless steel, carbon steel
Size: DN10-DN800 or customizable
Type: Round Flange
Application: general
Technics: Forged Casting
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

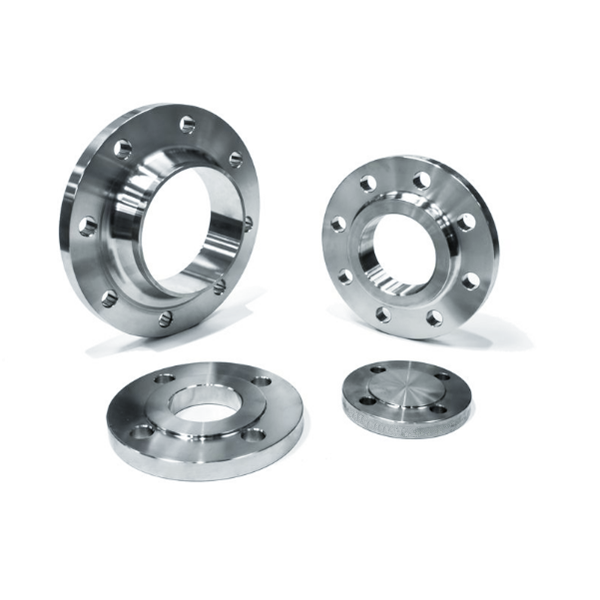

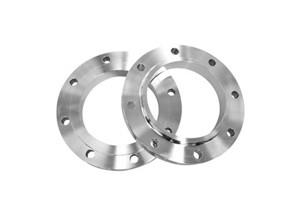

Astm 304 316l Steel Forged Flange 5 Inch Full Size Sanitary Threaded Drainage Pipe Fittings

Factory ASTM 304 316L 5 Inch Full Size Sanitary Stainless Steel Forged Threaded Drainage Pipe Fittings Flange


Product Parameter
Product name
Pipe Fittings Flange
Model Number
ASTM 304 316L
Standard
ANSI, bs, DIN, GB, ISO, JIS, Jpi, ASME
Pressure
ANSI 150LBS-2500LBS
DIN PN6-PN100
BS PN0.25-PN25 PN2.0-PN42.0
ISO7005-1,PN2.5-PN40
Materials
ASTM:SA105N/A105
Low Temperature Carbon Steel: ASTM SA350 LF2
High Strength Steel: ASTM SA694 F42/46/52/56/60/65
ASTM A182 F304/304L/316/316L
ASTM A182 F1/F5/F9/F11/F22/F91/Etc.
ASTM A182 F51/F53/F55/F60
Nickel 200, Monel 400, Inconel 600/625, Incoloy 825/800
90/10,70/30
Size
DN10-DN800 or customizable
Type
Round Flange
Application
general
surface treatment
mirror,polish
Media
water
Pressure
Class150/300/600/9001500/2500
Technics
Forged Casting
Payment terms
30%TT Advance + 70% Balance
Advantage
CE,ISO 9001, SGS, ABS, BV,etc
** The sizes or thicknesses of flange can be customized, if you need additional information,please don’t hesitate to contact us at any time.
** All standard products are supplied without inter paper & PVC film. If needed, please inform.
**If your quantity is smaller than our MOQ, kindly pls contact us for inquiry accordingly, sometime we have small stock, thank you.

Materials shall be identified in the following ways:
(a) Cast flanges shall bemarkedwith theASTMspeci-fication, 1 grade identification symbol (letters and num-bers), and the melt number or melt identification.
(b) Plate flanges and forged flanges shall be marked with the ASTM specification 1 number and grade identi-fication symbol.
(c) Amanufacturermay supplement thesemandatory material markings with his trade designation for the material grade, but confusion of symbols shall be avoided.
(d) For flanges manufactured from material that meets the requirements for more than one specification or gradeof a specification listed inTable 1, seepara. 4.2.8.
