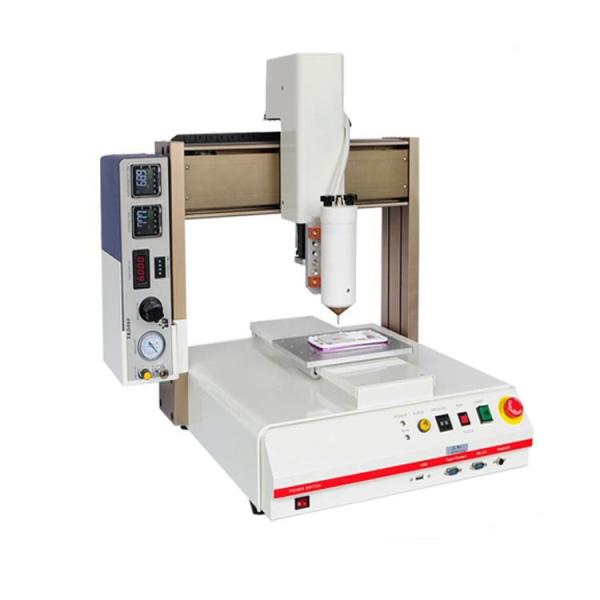

AB Single Platform Glue Dispensing Equipment 350W 300mm/S

Categories Glue Dispensing Machine
Brand Name: HSTECH
Model Number: HS-D331AB
Certification: CE
Place of Origin: China
MOQ: 1 pc
Price: Negotiable
Payment Terms: T/T, Western Union, MoneyGram
Supply Ability: 100pcs per week
Delivery Time: 5~7 work days
Packaging Details: Wooden package, with foam
Product name: AB Glue Dispensing Machine
Other name: 4 axis glue dispensing machine
XYZ working range: 300*300*100mm
XYZ Speed: Max 300mm/s
Glue mixing ratio: 1:1-10:1
Dispensing Precision: Glue Amount±1%, Glue Proportion±1%
Drive System: Stepping Motor + Timing Belt
Repeat accuracy: ±0.02mm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

AB Single Platform Glue Dispensing Equipment 350W 300mm/S

AB Glue Mixing Single Platform Fixture Needed Glue Dispensing Machine


Machine feature
1. PC computer LCD screen operation, easy to program, easy to learn and understand.
2. It has the functions of drawing points, lines, faces, arcs, circles, and continually tween of irregular curves to realize any 3D non-planar track path.
3. The volume of the glue, the speed of the glue, the time of dispensing, and the time of stopping the glue can all be programmed.
4. With the special dispensing controller, the glue output is stable, the glue is clean and the glue is not leaked.
5. Quickly dot, draw lines and draw circles in the inner, outer wall, vertical surface, gap and spherical surface of the product.
6. According to the needs of customers, it can be equipped with fixtures, glue guns, controllers, heating temperature control devices, etc.

Specification


ITEMSPEC
Glue Mixing Ratio1:1-10:1/Customizable
Dispensing Speed10-150g/5s(based on 1:1 glue proportion)
Dispensing PrecisionGlue Amount±1%, Glue Proportion±1%
X/Y/Z Working Range300*300*100mm(Z axis can be rotated)
XYZ SpeedMax 300mm/s
Drive SystemStepping Motor + Timing Belt
Repeatability±0.02mm
PatternLines, Circles, Arcs, Continuous Paths, 3D Linear Interpolation
Potting PrecisionAmount±1%, Ratio:±1%
Operation MethodAuto
ProgrammingTeach Pendant
ControlBoard card
Leak-proof FunctionValve with Vacuum Device
Weight65kg
Dimension(L*W*H)716*585*645mm
Power Supply220V 50-60Hz 350W

About Us:


Shenzhen HanSome Technology Co.,Ltd(HSTECH)was estabilished in 2012 by prefessional and experienced engineer who wroked many years in EMS company,we specilized in PCB handling equipments at first, then we develop the PCB depaneling machine and SMT cleaning machine. HSTECH not only have professional technical team for R&D,but also have a outgoing and experienced marketing team for research and develop, grasps products developing directions, updates the products and technics to meet the continue changing demands. In the past years,we have been always keep innovating and exploing to make cost-efficient products to help our customers saving cost and labor, improving the production efficiency at the same time.



HSTECH set the goal for "High quality and Smart”, that based on the concept of "Quality-Oriented and Customer-orented", and combined the industry feature, smart technology persuit for the smart factory.As for the after-sale service, we insist on "responsibility", we will take reaction at the first when we got quality feedbacks,and service our customers all the time.
