125μm 0.3dB Optical Fiber Fast Connector , SM SC UPC Fast Connector

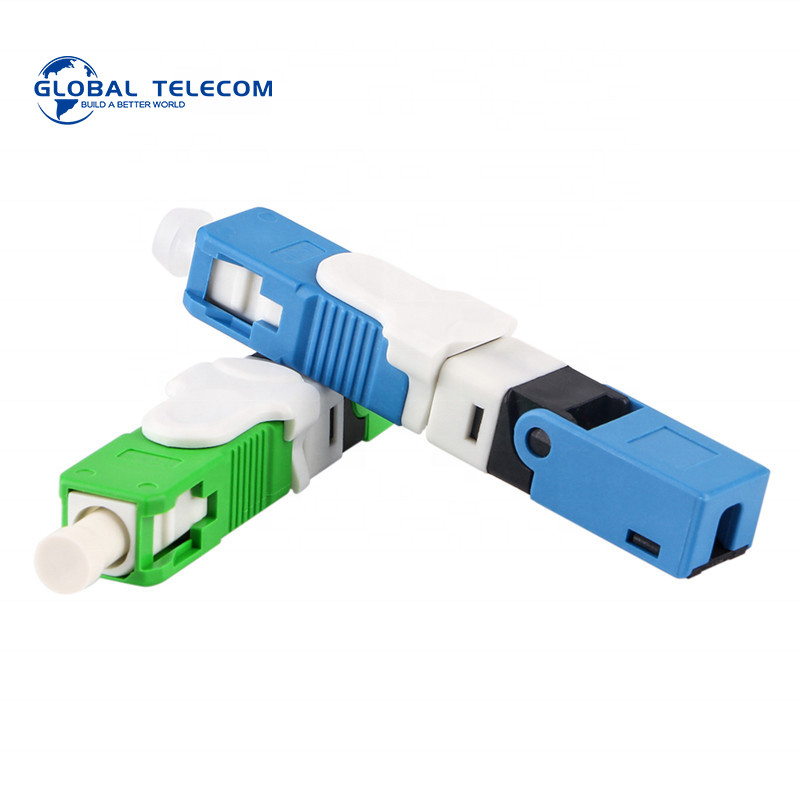

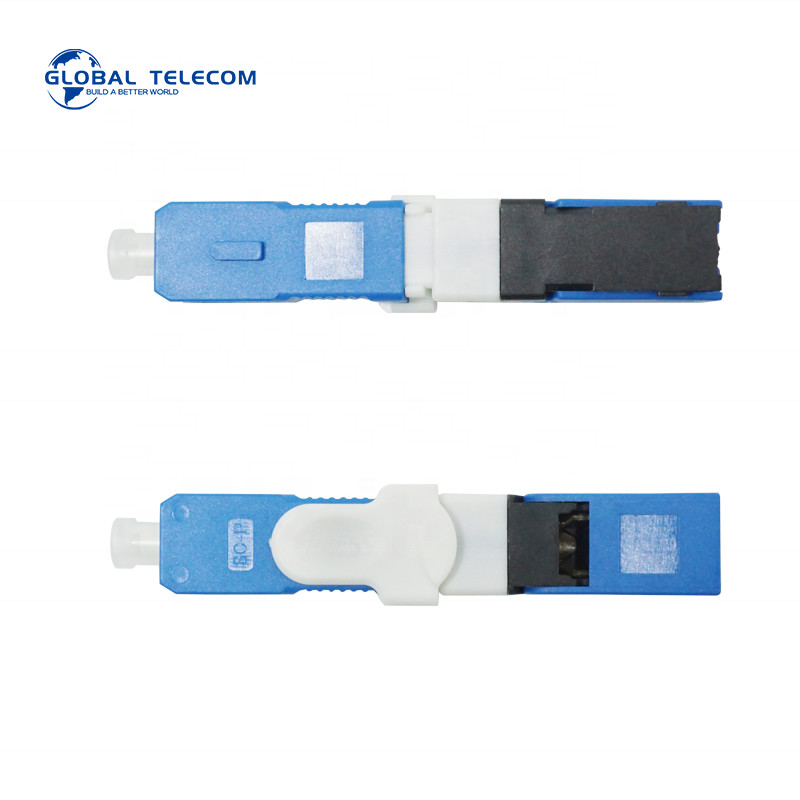

SC UPC Field Assembly Fiber Optic Fast Connector

SC fast connector allow you to terminate a fiber in short time. The fast connect is a pre-polished connector which uses mechanical clamping and aligning of a cleaved fiber end which is inserted into the connector body. The fast connect is available in both single mode and multimode (OM1 and OM3 10Gig)and a variety of connector types and can be terminated onto 250um and 900um coated fibre as well as 2x3 mm and 2x1.6 mm jacketed cord.

* Field-installable
* Fast and easy to terminate
* Excellent insertion and RL performance
* Reusable
* No termination enclosure required.
* Handles and performs like a factory terminated connector
* Twin end-face of pre embedded fiber is polished in the factory
* Fiber optics is aligned in V-groove through the ceramic frrule

Fiber Diameter	125μm (G652 & G657A1, G657A2)
Coating Diameter	250μm
Operation Time	about 15s(exclude fiber presetting)
Insertion Loss	≤ 0.3dB(UPC) ; ≤ 0.3dB(APC)
Return Loss	≥50dB for UPC, ≥55dB for APC
Success Rate	>98%
Reusable Times	>10 times
Tighten Strength of Coating	>10 N
Tensile Strength	>5 N
Temperature	-40 ~ +85 C
On-line Tensile Strength Test (20 N)	IL ≤ 0.5dB
Mechanical Durability(500 times)	IL ≤ 0.5dB
Drop Test (4m concrete floor, once each direction, three times total)	IL ≤ 0.5dB
