Speed 80 Times Line Wire From Coil 4.0kw Wire Mesh Welding Machines

Welding Speed 80 Times Line Wire From Coil Wire Mesh Welding Machine

Wire Mesh Welding Machine Introduction:

This is our new developed chicken cage welding machine DP-GWC-1200. The welding speed can be up to maximum 80 times/min. It has advantage of easier machine maintenance, less machine problem, easier to learn and operate, save power and consumption, less welding spark etc.

Wire Mesh Welding Machine Features:

1. Mechanical welding,each welding electrode is controlled by spring. Electrodes 20*20*20mm, can be used 6 sides.

2. Double cross wire feeders, can feed different length of cross wires. It is specially designed, the feeding speed is higher, can be 80pcs/min.

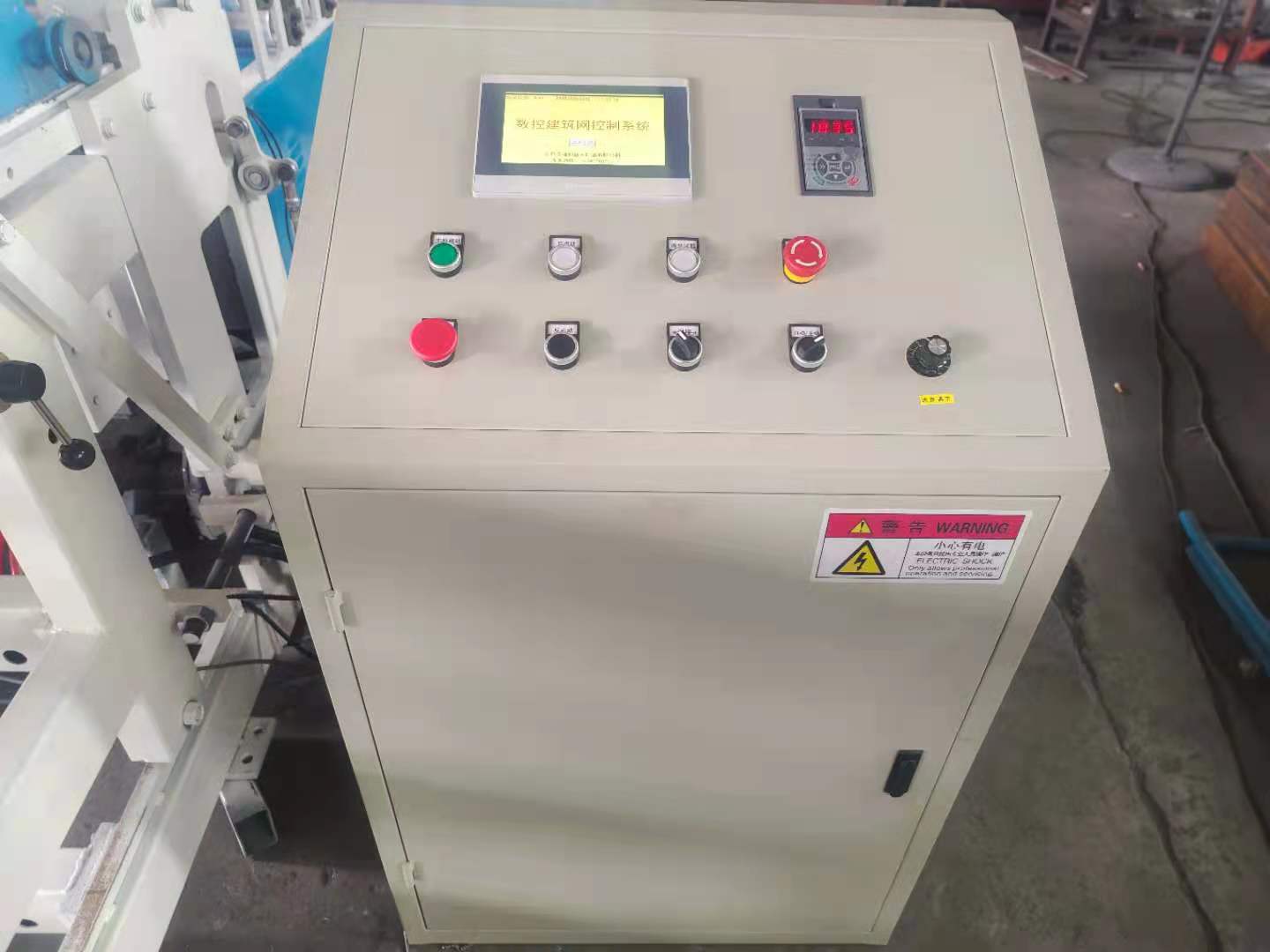

3. Panasonic servo motor for pulling mesh, cross wire space can be adjusted by PLC. The pulling is by pneumatic hook, more accurate, less noise.

4. The mesh cutting is automatic. After cutting, the mesh can fall down automatically to the mesh stacking car.

5. The line wire is from coil wire automatically.Save raw material and save labor cost. The line wire is feeding through the line wire straightening device. To make the line wire straighten directly feed into the welding electrode. The cross wire is pre-straighten and pre-cut by wire straightening and cutting machine. Then worker put the cross wire into the hopper. The cross wire is feeding automatically.

Auxiliary equipment to make chicken cage:

1. Cage bending machine is used to bend the top cage mesh and bottom cage mesh.

2. Edge cutting machine is used to cut the extra wires of the mesh side.

3. Door digging machine is used to cut the insider wires of the cage mesh to make a door.

4. C nail gun is used to connect the bottom cage mesh, top cage mesh and partition mesh.

5. Electric cutter is used to cut the mesh manually.

6. Spot welding machine is used to weld the partition mesh, single spot or multi spots.

7. Wire straightening and cutting machine is used to straight and cut the wires.

Wire Mesh Welding Machine Technical Parameters:

Wire Mesh Welding Machine Applications:

Chicken cage, Dog cage, Rabbit cage,poultry etc.

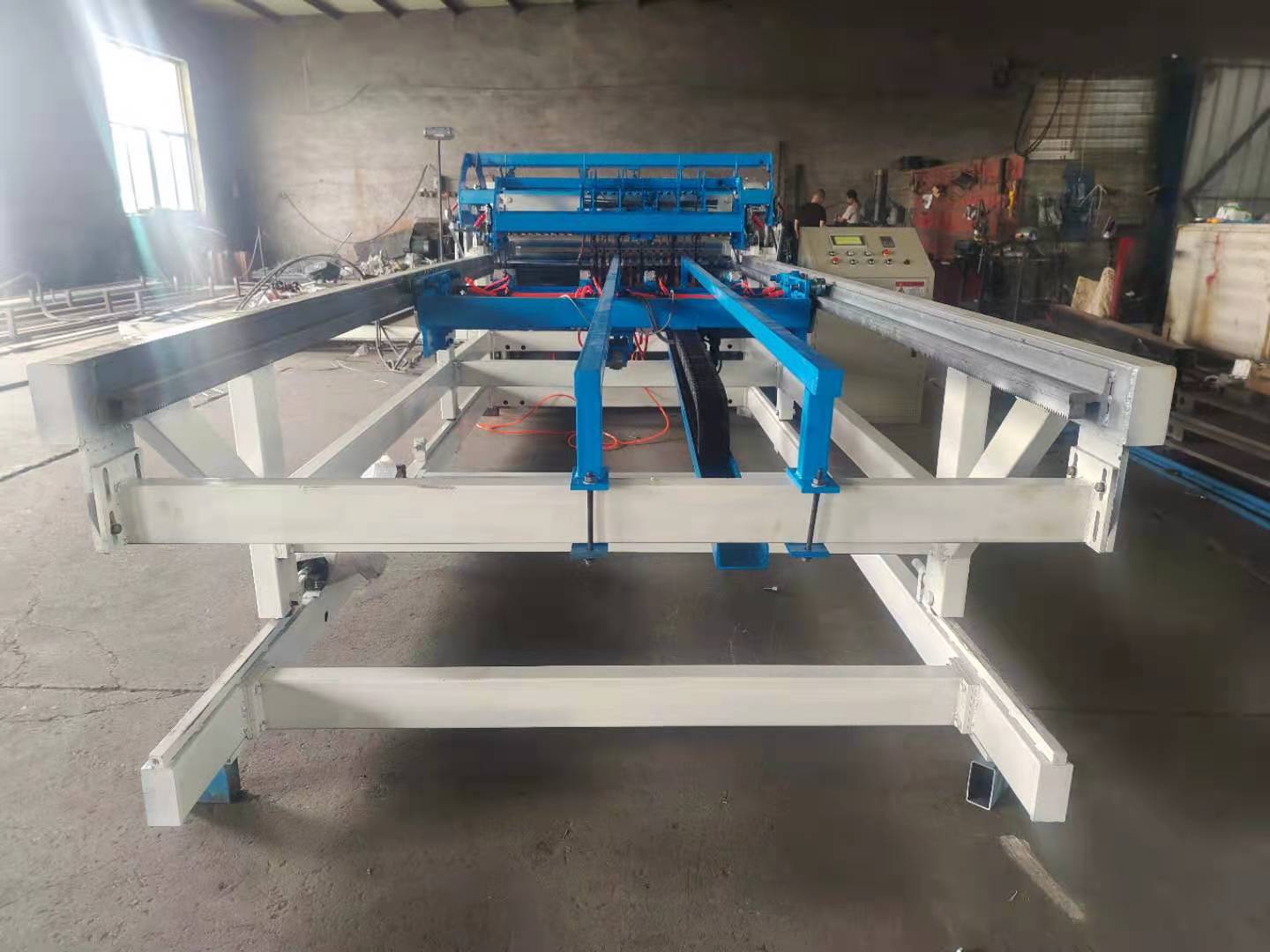

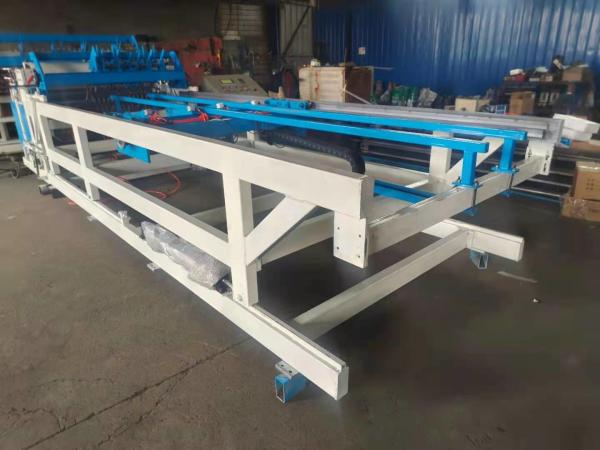

Wire Mesh Welding Machine Photos:

Anping Dixun Wire Mesh Products Co., Ltd. is located in Anping county, which is the famous Wire Mesh hometown of China.  We are professional manufacturer who make various types wire mesh machines in China. We have advanced technology, modern equipment, complete quality control system and strong technical force to supply full range of wire mesh machines and production line for worldwide customers. With good reputation, we have been exporting our products to the world.

We are a professional factory that manufactures all kinds of wire mesh machines.With having first-class wire mesh machines,scientific technology and quality inspection system to ensure the quality of wire mesh products.The company mainly supplies: Wire Mesh Welding machine, Reinforcfing mesh welding machine, Fully automatic fence mesh panel production line, Double wire fence mesh panel welding machine, Fence mesh panel welding machine, Automatic construction mesh welding machine,3-6mm rolling mesh welding machine, Razor Barbed Wire Machine, Chain Link Fence Machine,  Fixed knot fence machine, Welded Wire Mesh Machine, Wire Drawing Machine, Steel Grating Welding Machine.We can manufacture complete product design,part working and machine assemble,strong technical strengthen and good after-sales service can meet customer's need.

As a professional manufacturer.We seek existence by quality and development by reputation.We have more than 20 researchers with high skills.The product by our machine has various kinds and high quality.We can make different specifications according to client's demand. So far. We have established long-term business relationship with Russia,Vietnam, Philippines, Saudi Arba, South Africa, Singapor,Malaysia,Indonesia, Poland, Nigeria, Algeria, Zambia, Mozambique, Brazil,etc.Clients are very satisfied with our machine quality and after-sales service.
