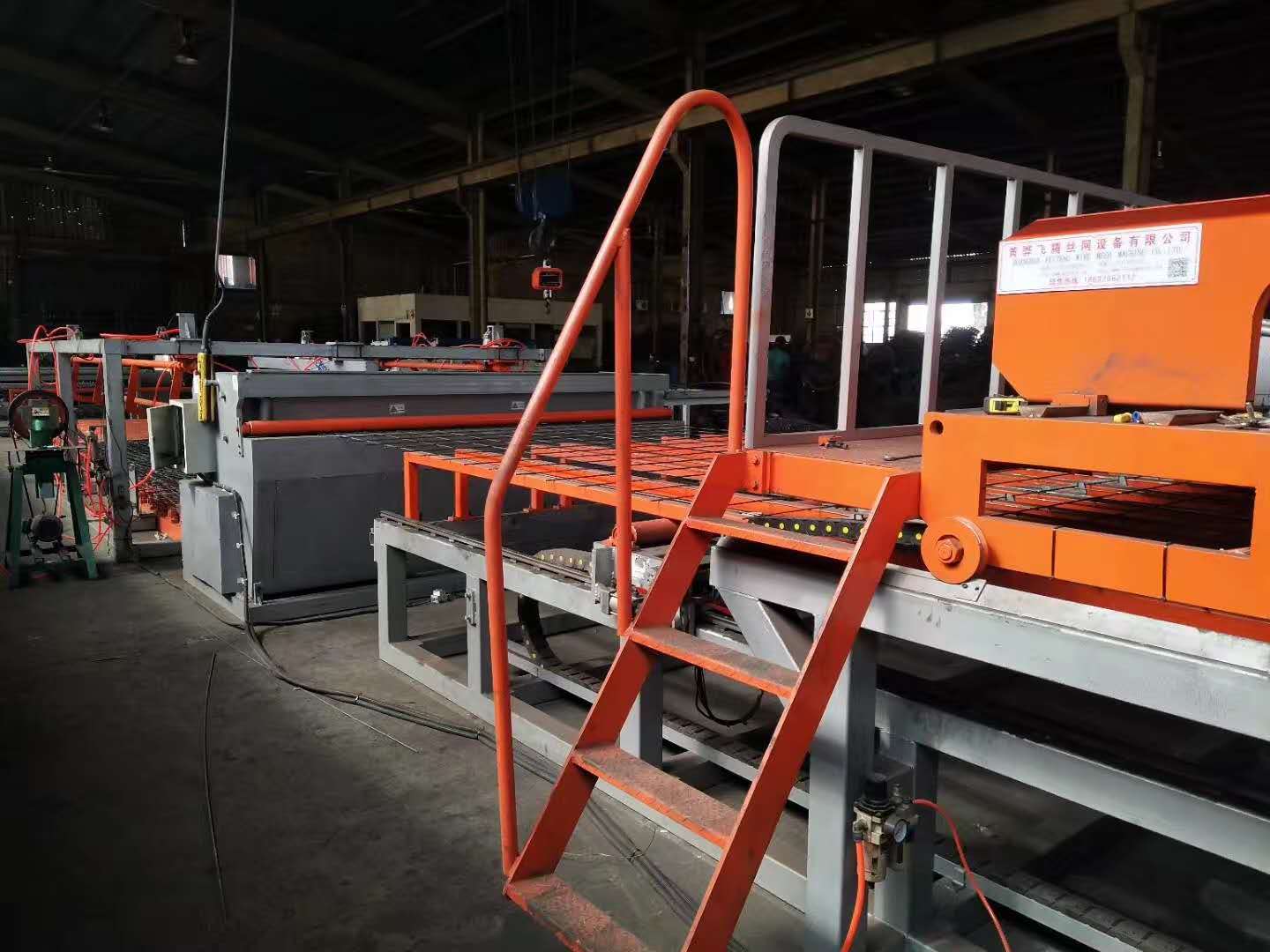

Mitsubishi GWC 2500A 150mm Axis Wire Mesh Welding Machines

Ground Reinforcement Mesh Size 150*150mm PLC Mitsubishi Wire Mesh Welding Machine

Wire Mesh Welding Machine Introduction:

Full automatic wire mesh welding machine adopts mechanical eccentric wheel pressure, servo motor and precision reducer back and forth to pull mesh movement, so as to realize the perfect combination of mechanical motion and servo CNC system. Mesh size is easy and convenient to adjustis, maintenance is simple and operation cost is low. Longitudinal wire feeding adopts large disc feeder, system automatic detection, automatic feeding line wire, The cross wire is pre-cut automatic feeding by stepping motor controlled. So as to ensure that part of the servo dragnet pull even, The cross wire hopper can storage more cross wires, not easy to mess.The wire mesh welding machine is highly automated, saves labor and greatly improves production efficiency.

Wire Mesh Welding Machine Features:

1. This machine can make both of panel mesh and roll mesh

2. Line wires are fed from wire coils automatically and through straightening rollers

3. Cross wire should be pre-cut and fed by cross wire feeder automatically

4. Equipped with cutting machine to make panel mesh and rolling machine to make roll mesh

5. Welding electrodes- chromium zirconium copper Upper-20mm diameter Lower-20*20*20mm, can be used 6 sides, The welding electrode distance can be adjusted.

6. Main motor (11kw) planetary reducer connect the main axis directly, instead of by chain. It is not easily broken. High stability. Big transmission torque, suitable for high welding speed.

7. Cast water cooling welding transformers Suitable for high temperature. When 2.5-4mm one welding transformer controls 8 welding electrodes. When 4-6mm, one welding transformer controls 4 welding electrodes.

8. Panasonic brand servo motor (2kw) for mesh pulling, accurate, big power. SMC air cylinders controls the hook up and down.

JT brand pulling rack, less noise, high accuracy.

9. The mesh cutting machine set the cut mesh length in the control cabinet. Will cut the mesh automatically when the mesh size up to the set mesh length. After cutting the mesh panel. The falling mesh device will drop the mesh panel automatically.

10. The roll mesh length max up to 60m per roll. And the roll mesh machine is variable-frequency. The roll mesh speed is adjusyable.

11. The Wire Mesh Welding Machine adopts line wire straighten system. special design structure ensure the straighteness of the line wires from 2 directions. The straightening wheels are made of alloy steel with long lifetime. It can straighten different materials. Such as: galvanized wire, cold-rolled ribbed wire, low carbon black wire.

12. The Wire Mesh Welding Machine adopts cross wire feeding with hopper with large storage.reduce the labor to input the wire material frequently.Wire blanking smoothly with the inspection device will alarm and machine stop working automatic if the cross wire is dropping improperly or cross wire disordered.

Wire Mesh Welding Machine Technical Parameters:

Wire Mesh Welding Machine Main Electrical configuration:

Wire Mesh Welding Machine Applications:

Used for building plant, ground reinforcement, stadium, road mesh, bridge pavement, mine works.
