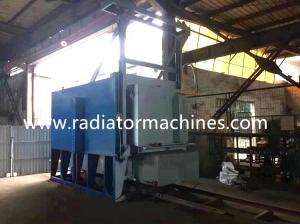

4 Zones Electrical Bogie Hearth Furnace With PLC Control

Electrical Bogie Hearth Furnace With PLC Control

1. Application


The RT3-600-12 electric bogie hearth furnace is mainly used for annealing and solution heat treatment of steel structure parts, alloy parts and stainless steel parts, etc.


2. Main Technical Parameters


1Rated power600KW (1-100%) adjustable
2Power supply380V, 3P, 50Hz
3Rated temperature

1250℃

(Normal working temperature: 850-1200℃)

4Non-load furnace temperature rise speed≤2.5 hours
5Control zone4 zones
6Effective working Size5000×2500×1500mm(L×W×H)
7Furnace overall size

5800×3600×2950mm(L×W×H)

The height doesn’t include the height of furnace door frame

8Bogie overall size6100×2600×950mm(L×W×H)
9Floor area including the bogie inside and outside movement length12500*3000mm (L*W)
10Heating element connectionＹ
11Temperature uniformity±10℃
12Temperature measurement accuracy±1.5℃
13Non-load furnace power consumption≤18%
14Temperature control method

SCR, PID regulator; Shimaden temperature controller with 485 communication interface, 10.1 inch touch screen (it can record historical data, storage process, U disk export, screenshots and other functions, with overtemperature alarm)

Touch screen+PLC control: the touch screen is connected to the customer’s computer. Communication mode: Modbus tcp interface. The furnace control cabinet transmits real-time data to the customer’s computer, and the customer's computer can control the operation and heating of the furnace remotely.

15furnace surface temperature rise＜45℃
16Heating element0Cr27AL7Mo2 (strip) HRE
17Bogie face plateCr25Ni20, 30mm thickness, heat resistant steel
18Loading methodProduct loaded on the bogie, and then bogie moves into the furnace
19Furnace door opening method2ton Electric hoist up-down, sealed by the door self-weight
20Bogie moving methodBy the cycloidal pin gear speed reducer
21Bogie driving power5.5KW
22Furnace liningHigh temperature Refractory fiber
23Loading capacity10 tons


3.Origin of Outsourced Components


No.ItemOrigin
1Temperature controllerShimaden, Japan
2SCRWeisite, Jiangsu
3Resistance stripSHOUGANG, Beijing
4Heat preservation materialLuyang, Shandong
5Refractory materialYixing, Jiangsu
6ReducerHuibang, Changzhou, China
7Electrical componentsDELIXI
8Hearth plateJianda, Xinghua, China
9Touch screenMCGS
10PLCSiemens Smart


4. Structural Introduction


The RT3-600-12 bogie hearth furnace is mainly comprised of furnace shell, lining, furnace door and door compression system, bogie, heating element and fixed device, and temperature control system.


5. Company Info

Wuxi Wondery Trading Co., Ltd is a comprehensive bogie hearth furnace supplier. Our company

supplies the following machines: bogie hearth furnace, aluminum radiator core builder machine, aluminum

radiator plastic tank clinching machine, aluminum radiator brazing furnace, aluminum radiator leak testing machine,

radiator header plate mold, radiator side plate mold, plastic tank die, etc.
