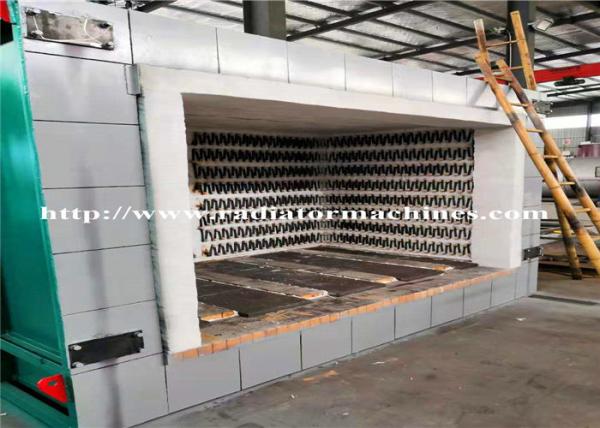

Industrial Resistance Bogie Hearth Furnace, Car Bottom Furnace Tilting Bogie
Application
The electrical bogie hearth furnace is mainly used for heat treatment of high - manganese steel,
chromium steel and other metal parts. The bogie hearth furnace is designed with the tilting bogie so as to
meet the fast quenching requirement of high manganese steel.
Main Technical Parameters
| No. | Item | Technical Parameters |
| 1 | Rated power | 140Kw+5% (1-100%) adjustable |
| 2 | Power supply | 380V, 3P, 50Hz |
| 3 | Rated temperature | 1150℃ (normal working temperature:1050-1070℃) |
| 4 | Empty furnace temperature rise speed | ≤2hours to reach 900℃ |
| 5 | Control zone | 1 zone |
| 6 | Effective working size | 1500×1500×1000mm(L×W×H) |
| 7 | Heating element connection | Ｙ |
| 8 | Temperature uniformity | ≤±10℃ |
| 9 | Temperature measurement accuracy | ±2℃ |
| 10 | Empty furnace power consumption | ≤18% |
| 11 | Temperature control method | SCR; PID regulator; Guolong temperature controller with overtemperature alarm; |
| 12 | furnace surface temperature rise | ＜45℃ + room temperature |
| 13 | Heating element | 0Cr27AL7Mo2 (strip) |
| 14 | Bogie hearth plate | ZG40Cr24Ni7SiN, total thickness 30mm |
| 15 | Loading method | Product loaded on the bogie, and then bogie moves into the furnace |
| 16 | Lining | High temperature refractory fiber |
| 17 | Furnace door opening method | Electrically lifted up-down, spring compression mechanism |
| 15 | Bogie moving method | By the reducer |
| 16 | Bogie driving power | 1.5KW cycloidal pin wheel reducer |
| 17 | Tilting method | Hydraulic tilting |
| 18 | Tilting angle | ≤45 degree |
| 19 | Bogie hearth furnace configuration | One set of Bogie hearth, one set of furnace door and one set of tilting mechanism |
Structural Introduction
The bogie hearth furnace is mainly comprised of furnace body, lining, furnace door and door compression
system, bogie, heating element, hydraulic tilting system, and temperature control system.
Supply Scope
| No. | Item | Q’ty | Notes |
| 1 | Furnace body | 1 set | |
| 2 | Bogie | 1 set | Including bogie hearth plate |
| 3 | Hydraulic system | 1set | Including the oil cylinder and the oil pipe |
| 3 | Electrical driving system | 1 set | 1 set for bogie and 1 set for door |
| 4 | Heating element | 1 set | Resistance strip |
| 5 | Temperature control system | 1 set | |
| 6 | Control cabinet | 1pc | 1800*600*400mm |
| 7 | Guolong temperature controller | 1pc | |
| 8 | SCR | 3pcs | |
| 9 | Compensation lead wire | 20m | |
| 10 | Thermal couple | 1 pc | 0-1200 |
| 11 | Electrical components | 1 set | SCR, air switch, ammeter, voltmeter, heat relay, and switches |
1) The trolley type bogie hearth furnace has a shell of welded
steel plates and sectional steel. The structure is of thick
material.
2) The hearth wall lining is an all-fiber structure, saving about
60% of power consumption compared with the traditional brick
hearth.
3) Heating components: high temperature resistance alloy wires and
strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.
Effective size: 1500×1500×1000mm
Our company is a professional supplier of heat treatment furnaces such as electric resistance bogie hearth furnace,
gas fired bogie hearth furnace, gas fired mesh belt furnace, electric resistance mesh belt furnace, carburizing furnace,
nitriding furnace, steel wire annealing furnace, salt bath furnace, box type resistance furnace, aluminum melting furnace,
crucible melting furnace, gas fired melting furnace, gas fired aluminum melting furnace, gas fired holding furnace, electric
resistance aluminum holding furnace, aluminum melting furnace for
die casting machine, aluminum quenching furnace, etc.
|
