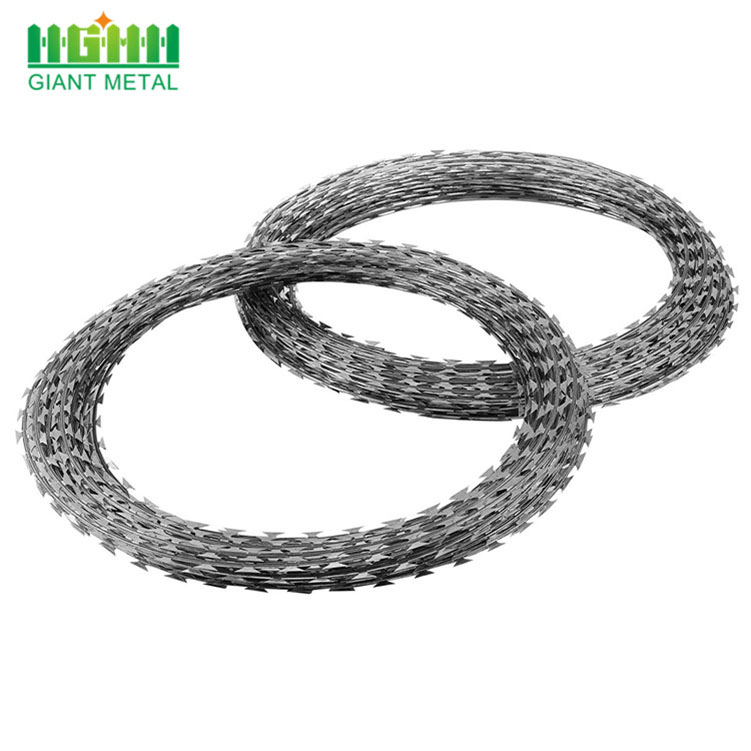

BTO-22 Galvanized High Quality Stainless Steel Concertina Razor Barbed Wire
Product Description
Razor barbed wire is a kind of modern security fencing materials fabricated with
razor-sharp steel blade and high-tensile wire.
It can be installed to achieve the result of frightening and
stopping to the aggressive perimeter intruders,
with piecing and cutting razor blades mounted at the top of the
wall, also the special designs making climbing and touching
extremely difficult.
The wire and strip are galvanized or PVC coated to prevent
corrosion.
Material:
Galvanized wire and plate
Heavy Zinc coated wire and plate
Stainless steel wire and plate

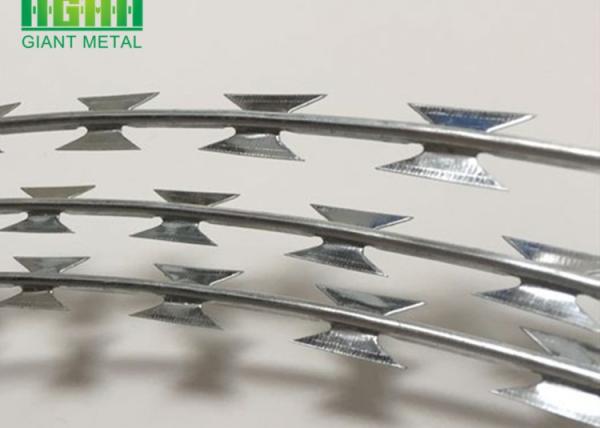

Process: galvanized steel plate or stainless steel plate punched into
certain forms then attached to the steel wire in sharp angle to
form the blades.
Barbed Types: BTO-10 BTO-18 BTO-22 CBT-60 CBT-65
| Model | Thickness | Wire Diameter | Length | Width | Spacing |
| BTO-10 | 0.5±0.05mm | 2.5±0.1mm | 12±1mm | 13mm | 26mm |
| BTO-12 | 0.5±0.05mm | 2.5±0.1mm | 12±1mm | 15mm | 26mm |
| BTO-18 | 0.5±0.05mm | 2.5±0.1mm | 18±1mm | 15mm | 33mm |
| BTO-22 | 0.5±0.05mm | 2.5±0.1mm | 22±1mm | 15mm | 34mm |
| BTO-28 | 0.5±0.05mm | 2.5±0.1mm | 28±1mm | 15mm | 34mm |
| BTO-30 | 0.5±0.05mm | 2.5±0.1mm | 30±1mm | 18mm | 34mm |
| CBT-60 | 0.6±0.05mm | 2.5±0.1mm | 60±1mm | 32mm | 96mm |
| CBT-65 | 0.6±0.05mm | 2.5±0.1mm | 65±1mm | 21mm | 100mm |
Feature
Anticorrosion, prevent aging, sun resistance, weather resistance, etc. Corrosion forms of electroplating, hot dip.
Packing terms
Panel all packing with the pallet (steel pallet or wooden pallet) in bulk
|
