| Categories | Metal Corral Fence |
|---|---|
| Brand Name: | HGMT |
| Model Number: | GF137 |
| Certification: | ISO9001:2008 |
| Place of Origin: | China |
| MOQ: | 50 sets |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000meter per week |
| Delivery Time: | 20-25days |
| Packaging Details: | 1.packing with wooden pallet 2.bulk on the container |
| Name: | farm fence |
| Material: | steel |
| shape: | hinged knot,fixed knot |
| surface: | 1. pre-galvanized tube welded 2. hot dip galvanized after welded |
| packing: | pallet or bulk |
| related product: | farm gate |
| Company Info. |
| Hebei Giant Metal Technology co.,ltd |
| Verified Supplier |
| View Contact Details |
| Product List |
1.8m Hot Dipped Galvanized Suppliers Prices Wire Mesh Roll Deer Field Field Farm Fencing
Farm fence Detail
Farm fence is manufactured in a wide selection of heights and styles featuring a graduated spacing that starts with small openings at the bottom which helps prevent entry from small animals. The hinge-lock knot allows the fencing to give under pressure and spring back into shape.
Specifications of the panels
| No. | Type | Specification | Weight(kg) | Top and Bottom Wire Dia.(mm) | Body Wire(mm) |
| 1 | 7/150/813/50 | 102+114+127+140+152+178 | 19.3 | 2.5 | 2.0 |
| 2 | 8/150/813/50 | 89(75)+89+102++114+127+140+152 | 20.8 | 2.5 | 2.0 |
| 3 | 8/150/902/50 | 89+102+114+127+140+152+178 | 21.6 | 2.5 | 2.0 |
| 4 | 8/150/1016/50 | 102+114+127+140+152+178+203 | 22.6 | 2.5 | 2.0 |
| 5 | 8/150/1143/50 | 114+127+140+152+178+203+229 | 23.6 | 2.5 | 2.0 |
| 6 | 9/150/991/50 | 89(75)+89+102++114+127+140+152+178 | 23.9 | 2.5 | 2.0 |
| 7 | 9/150/1245/50 | 102+114+127+140+152+178+203+229 | 26.0 | 2.5 | 2.0 |
| 8 | 10/150/1194/50 | 89(75)+89+102++114+127+140+152+178+203 | 27.3 | 2.5 | 2.0 |
| 9 | 10/150/1334/50 | 89+102+114+127+140+152+178+203+229 | 28.4 | 2.5 | 2.0 |
| 10 | 11/150/1422/50 | 89(75)+89+102+114+127+140+152+178+203+229 | 30.8 | 2.5 | 2.0 |
| Note:The first data in type is the No.of line wire; The second data is horizontal hole size(mm); The third data is the height of the fence(mm); The fourth data is the total length of the fence(mm). | |||||

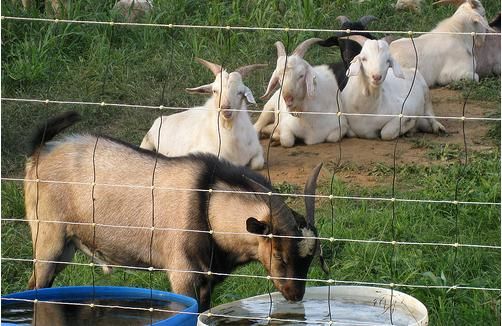

Application
1. For animals feeds
2. Farm places
3. Cattle
4. Horse
5. Sheep
Feature
Field fence offers high strength against the violent clashing of horses and other animals to ensure the safety. The zinc coating layer adds corrosion and rust resistance for the fences.
Good flexibility; good pressure resistance, weather resistance properties, long service time. Even the cut pieces will not deform under pressure.
Packing terms
1. Panel all packing with the pallet (steel pallet or wooden pallet)
2. Clips packing in the carton box
|
