| Categories | Rubber Air Spring |
|---|---|
| Supply Ability: | 1000pcs/week |
| Payment Terms: | T/T, Western Union,Paypal or Others |
| Place of Origin: | Guangzhou, China |
| Brand Name: | AIRSUSTECH |
| Certification: | ISO/TS16949:2009 |
| MOQ: | 3 pieces |
| Packaging Details: | Strong Carton Box or as Customers Requirement |
| Delivery Time: | 3-8 Working Days |
| Model Number: | MB-120-3 |
| Model NO.: | MB-120-3 |
| N.W.: | 2.0 Kg |
| Warranty: | One Year |
| Pressure Ability: | 0.2-0.88 MPa |
| Design High: | 152 mm |
| Color: | Black |
| Bumper Block: | Without |
| Minimum Height: | 82 mm |
| Stroke: | 106 mm |
| Max Diameter: | 180 mm |
| Vibration Frequency: | 2.2 |
| Trademark: | Neutral |
| Transport Package: | Cartons |
| Specification: | 24*24*24 cm |
| Origin: | China |
| HS Code: | 8708809000 |
| Port: | Huangpu, China |
| Function: | Reduce Vibration |
| Material: | Rubber |
| Usage: | Industrial |
| Load Type: | Compression |
| Production Process: | Vulcanization |
| Shape: | Convoluted |
| 0.7M pa Max DIA.: | 184 MM |
| Company Info. |
| Guangzhou Guomat Air Spring Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

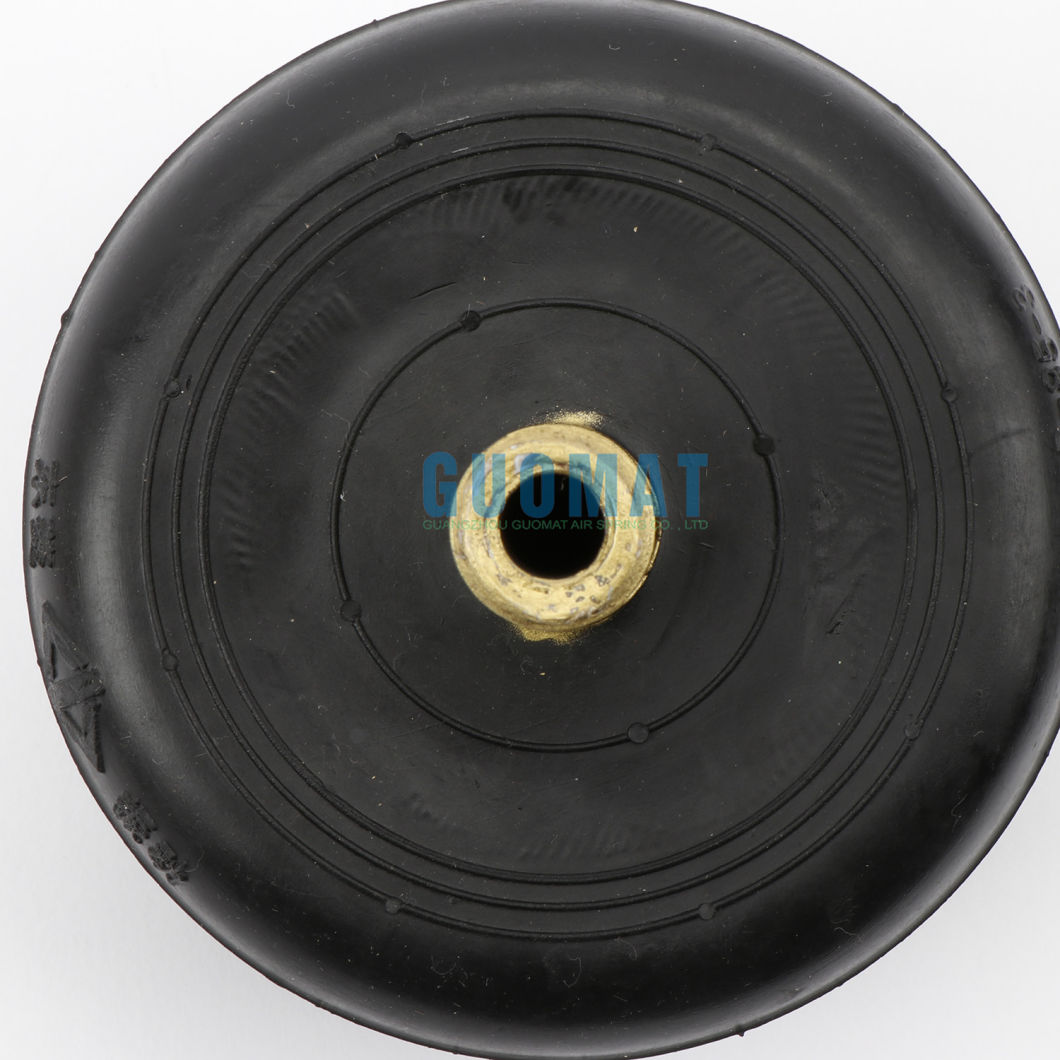

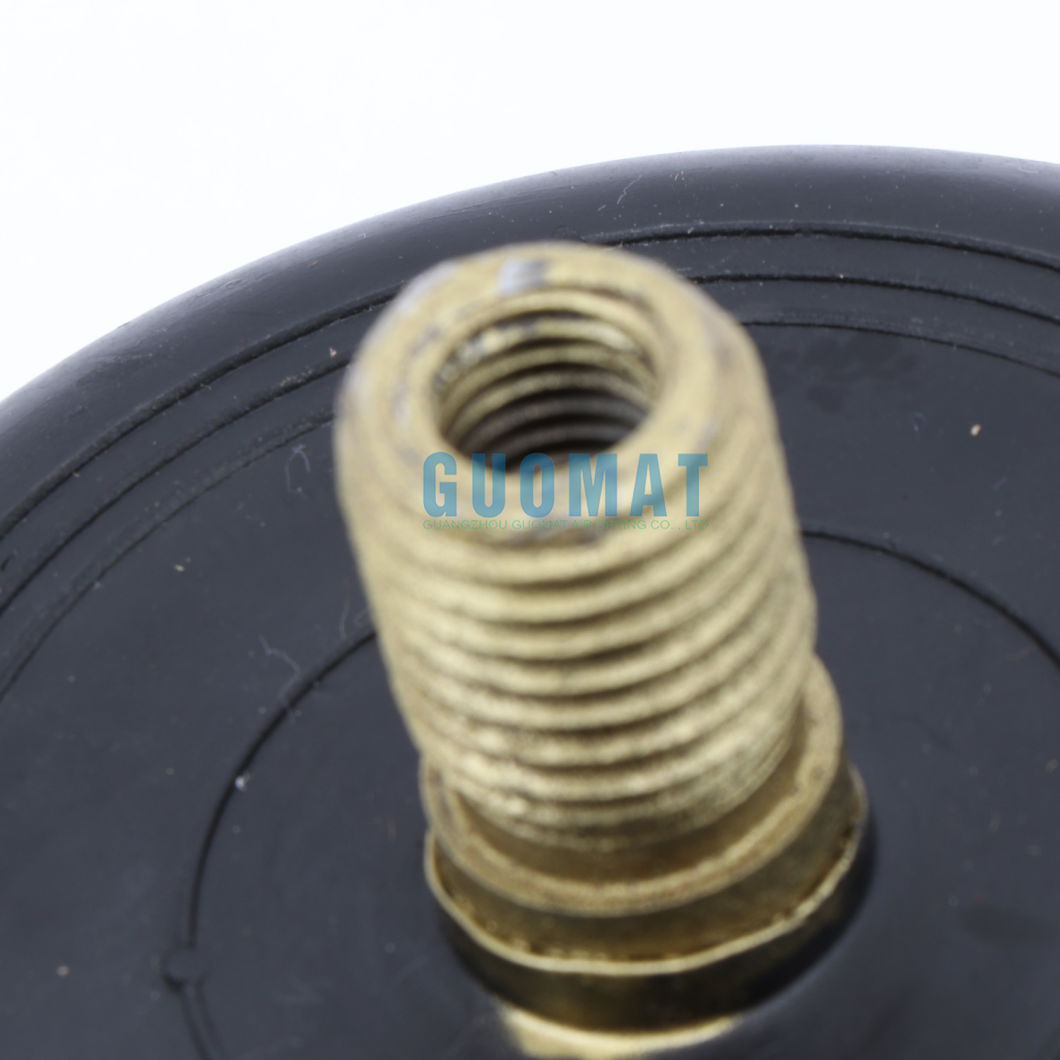

Quick details of MB-M-120-3 Replaces M-120-3 YOKOHAMA:
Net Weight:2.0 KG
Gross Weight:2.5 KG
Package Size:24*24*24mm
Compressed height:80mm
Maximum Height:180mm
Full stroke:100 mm
Working medium:water, air
Working pressure:< 0.7Mpa
Burst pressure:> 1.6Mpa
Endurance cycle:> 10"
Temperature:-35℃ ~+60℃
M-120 items Detailed Parameter Table:
| GUOMAT NO. | Reference No. | Hight H(mm) | Commonly Maximum Stroke(mm) | The Largest Diameter When Compressed(mm) | ||
| Design High(mm) | Maximum High(mm) | Minimum Height(mm) | ||||
| MB-120-4 | M-120-4 | 206 | 306 | 111 | ±70 | 180 |
| MB-120-3 | M-120-3 | 152 | 227 | 82 | ±53 | 180 |
| MB-120-2 | M-120-2 | 98 | 148 | 53 | ±35 | 180 |
| GUOMAT NO. | Reference No. | Standard Height,Internal Pressure 0.49 M pa When The General Value | Using Maximum Internal Pressure (M pa) | Internal Pressure (M pa) | ||||
| Effective Area (Cm2) | Volume(L) | Load (K n) | Dynamic Spring Parameters (N/Min) | Vibration Frequency (Hz) | ||||
| MB-120-4 | M-120-4 | 113 | 3.4 | 5.2 | 69 | 1.8 | 0.88 | 2.9-3.9 |
| MB-120-3 | M-120-3 | 113 | 2.1 | 5.2 | 98 | 2.2 | 0.88 | 2.9-3.9 |
| MB-120-2 | M-120-2 | 113 | 1.25 | 5.2 | 157 | 2.7 | 0.88 | 2.9-3.9 |
| MB-100-4 | M-100-4 | 79 | 1.95 | 3.9 | 59 | 1.9 | 0.88 | 2.9-3.9 |
| MB-90-3 | M-90-3 | 79 | 1.4 | 3.9 | 78 | 2.2 | 0.88 | 2.9-3.9 |
| MB-90-2 | M-90-2 | 79 | 0.85 | 3.9 | 118 | 2.7 | 0.88 | 2.9-3.9 |
| MB-90-1 | M-90-1 | 63.5 | 0.5 | 3.1 | 103 | 2.9 | 0.88 | 3.9-4.9 |
M-120-2R air spring fits below items
Papermaking equipment
Scissor lift
Mechanical Hopper vibration and damping handling stop
Direct force
Platform lift
Short stroke mechanical linkage
Hot foil stamping press
Impact absorbtion
Roller tensioning
Quick lock device
Reel tensioning
Machine isolation
GUOMAT Has Punch Press Air Spring Cushion /Air Shock Absorber Part
NO. Below:
| GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. | GUOMAT Part NO. | Japan YOKOHAMA Reference No. | Japan YOKOHAMA Reference No. |
| MB-600-1 | MB-600-R1 | 600-1r | MB-240-4 | MB-240-R4 | 240-4r |
| MB-600-2 | MB-600-R2 | 600-2r | MB-240-3 | MB-240-R3 | 240-3r |
| MB-600-3 | MB-600-R3 | 600-3r | MB-240-2 | MB-240-R2 | 240-2r |
| MB-600-4 | MB-600-R4 | 600-4r | MB-240-1 | MB-240-R1 | 240-1r |
| MB-600-5 | MB-600-R5 | 600-5r | MB-220-4 | MB-220-R4 | 220-4r |
| MB-550-2 | MB-550-R2 | 550-2r | MB-220-3 | MB-220-R3 | 220-3r |
| MB-550-3 | MB-550-R3 | 550-3r | MB-220-2 | MB-220-R2 | 220-2r |
| MB-500-2 | MB-500-R2 | 500-2r | MB-200-2 | MB-200-R2 | 200-2r |
| MB-500-3 | MB-500-R3 | 500-3r | MB-200-3 | MB-200-R3 | 200-3r |
| MB-500-4 | MB-500-R4 | 500-4r | MB-200-4 | MB-200-R4 | 200-4r |
| MB-500-5 | MB-500-R5 | 500-5r | MB-160-1 | MB-160-R1 | 160-1r |
| MB-450-1 | MB-450-R1 | 450-1r | MB-160-2 | MB-160-R2 | 160-2r |
| MB-450-2 | MB-450-R2 | 450-2r | MB-160-3 | MB-160-R3 | 160-3r |
| MB-450-3 | MB-450-R3 | 450-3r | MB-160-4 | MB-160-R4 | 160-4r |
| MB-450-4 | MB-450-R4 | 450-4r | MB-120-4 | MB-120-R4 | 120-4r |
| MB-450-5 | MB-450-R5 | 450-5r | MB-120-3 | MB-120-R3 | 120-3r |
| MB-400-2 | MB-400-R2 | 400-2r | MB-120-2 | MB-120-R2 | 120-2r |
| MB-400-3 | MB-400-R3 | 400-3r | MB-100-4 | MB-100-R4 | 100-4r |
| MB-400-4 | MB-400-R4 | 400-4r | MB-90-3 | MB-90-R3 | 90-3r |
| MB-400-5 | MB-400-R5 | 400-5r | MB-90-2 | MB-90-R2 | 90-2r |
| MB-350-1 | MB-350-R1 | 350-1r | MB-90-1 | MB-90-R1 | 90-1r |
| MB-350-2 | MB-350-R2 | 350-2r | MB-300-1 | MB-300-R1 | 300-1r |
| MB-350-3 | MB-350-R3 | 350-3r | MB-300-2 | MB-300-R2 | 300-2r |
| MB-350-4 | MB-350-R4 | 350-4r | MB-300-3 | MB-300-R3 | 300-3r |
| MB-300-4 | MB-300-R4 | 300-4r |
FAQ
Hong long is the GUOMAT warranty on air suspension parts?
GUOMAT offers one year warranty for all the air springs and air
suspension parts all over the world. Within the warranty period, we
will either replace or repair the part. But improper use or
installation is not a manufacturer's responsibility .GUOMAT is so
confident you will be 100% satisfied with products that it offers
you a 30-Day Money Back Guarantee and a 90-Day Return Policy on
unused and uninstalled products.
How long does it take to receive my order?
GUOMAT ships may take 2-8 work days, depending on what items are
ordered and Whether the parts have in stock or not. We always
deliver the air spring by DHL, UPS,FEDEX and TNT .They are all can
very quickly to deliver the package to you.
Is it possible to return a part if I do not want it?
Yes, of course .You can return a part as long as it is less than 30
days from the date of purchase or within 90 days for unused and
uninstalled products.
|
