350255H-2 Flange Type Connection Convoluted Rubber Air Bellow

Categories Rubber Air Spring
Supply Ability: 1000pcs/week
Payment Terms: T/T, Western Union,Paypal or Others
Place of Origin: Guangzhou, China
Brand Name: AIRSUSTECH
Certification: ISO/TS16949:2009
MOQ: 3 pieces
Packaging Details: Strong Carton Box or as Customers Requirement
Delivery Time: 3-8 Working Days
Model Number: 350255H-2
N.W.: 3.5 Kg
Warranty: One Year
Pressure Ability: 0.2-0.8 M PA
Stroke: 205 mm
Trademark: Neutral
Transport Package: Cartons
Specification: 24*24*24 cm
Origin: China
HS Code: 8708809000
Port: Huangpu, China
Function: Reduce Vibration
Material: Rubber
Usage: Industrial
Load Type: Compression
Production Process: Vulcanization
Shape: Convoluted
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

350255H-2 Flange Type Connection Convoluted Rubber Air Bellow

Rubber Air Spring 350255h-2 Flange Connection Double Convoluted Bellows Isolator


Rubber Air Spring Specifications


Nut / Blind Nut

Top Cover Plate Screw number: 8 pcs

Bottom Cover Plate Screw number : 8 pcs

The Distance of Nut:

The Screw Of Nut: M10

Gas Hole / Air inlet / Air Fitting

Gas Hole / Air inlet : G1/2

Cover Plate

Top Cover Plate Diameter:

Bottom Cover Plate Diameter:

Rubber Bellows

Rubber Bellows Design Stroke:205 mm

Bumper block / Buffer block

Without Bumper Block

Girdle Hoop / Girdle Ring

With One Piece Of Girdle Hoop


Other double convoluted H kinds Rubber air spring models:


Air Spring NO.LoadDesign H.Min. H.Safe ElongationFull Stroke
235210H-280245165
156130H-27014676
680262H-21931321290302212
630262H-21580121090300210
580214H-21429315888246158
520217H-21104915990249159
480217H-2970016188249161
430255H-2642720590295205
400255H-2535620590295205
400217H-2630015990249159
380221H-2535216590255165
360214H-2457015888246158
350255H-2409820590295205
330254H-2316620288290202
330214H-2398715888246158
310214H-2299215788245157
300170H-2304511085195110
290265H-2180021390303213
280214H-2248015888246158
252163H-2164415880238158
250180H-219041228420684
235152H-21667987617498
230214H-2145715888246158
200142H-21195847816284
168132H-2832797215179
160166H-259310882190108
130142H-2314907216290

The Composition Of Industrial Convoluted Rubber Air Spring Element Has The Following Aspects


Nut / Blind Nut - As well a permanent part of the Cover Plate assembly. Provides an alternative to bolt installation system. It is inside defect within the iron plate


Gas Hole / Air inlet / Air Fitting - Most usually 1/4 N.P.T. which provides the air entrance to the rubber bellows.


Cover Plate - Curled up to more durable bellows design and the largest quality control in the factory. Allows 100% of the leak test before shipment.


Rubber Bellows - Air Bellows includes four layers of materials: an inner layer, two layer cord - reinforced fabrics, and a cover. Construction of a natural rubber provides - 65F functional properties.


Bumper block / Buffer block - Solid rubber or engineering plastic device designed to prevent major damage to the vehicle or suspension in the event of a sudden loss of air pressure in the spring.


Girdle Hoop / Girdle Ring - Molded wire-wound ring to provide lateral stability of the complex type spring bellows.

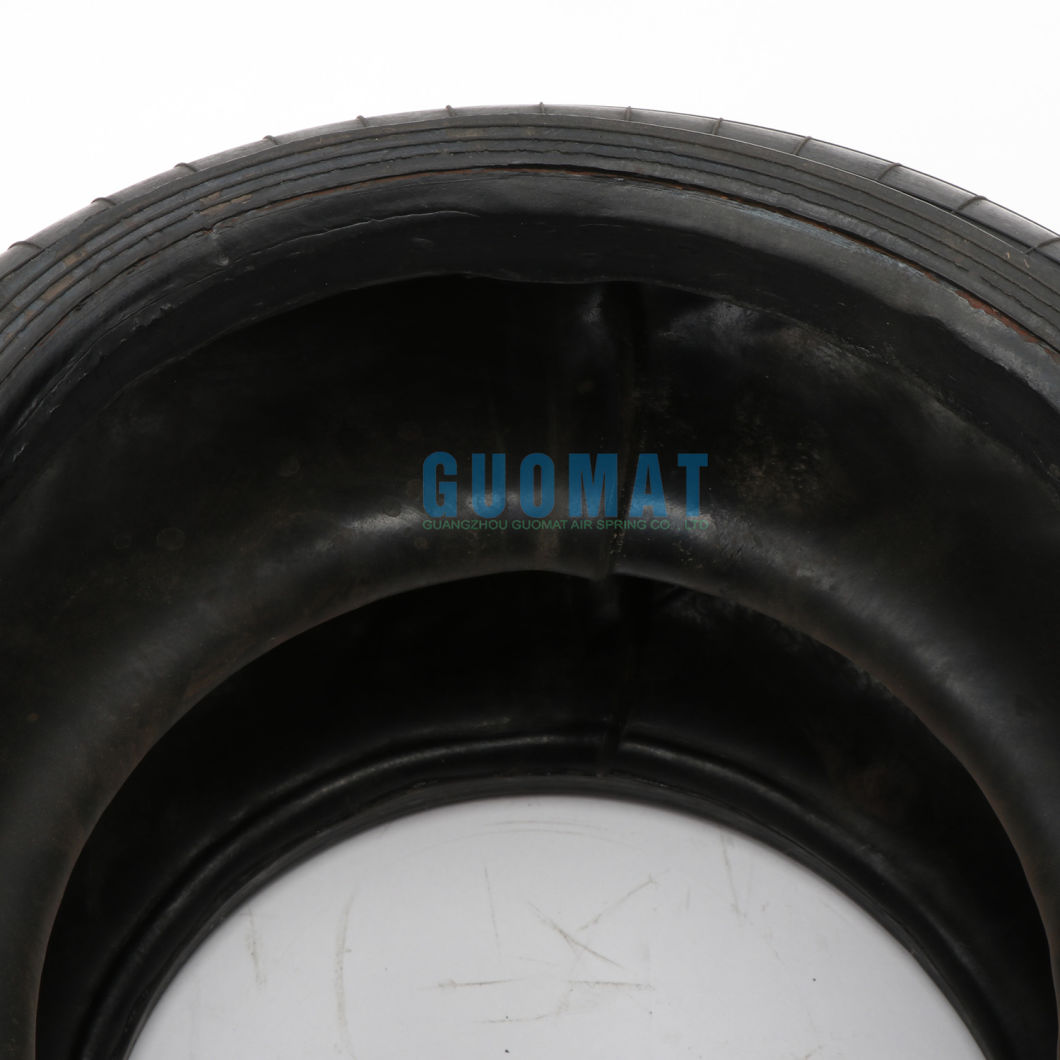

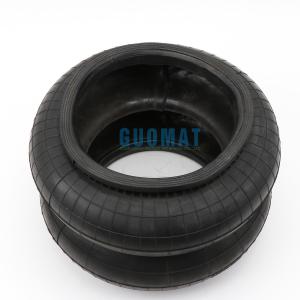

350255h-2 Flange Connection Double Convoluted Rubber Bellows / Air Spring Isolator W/O Rings

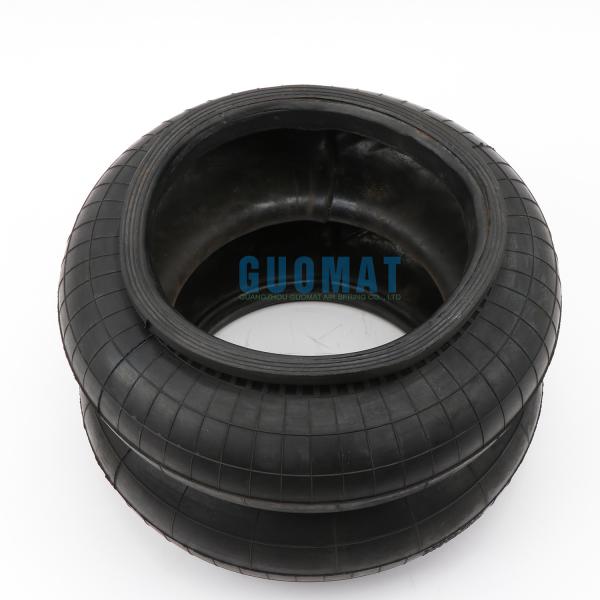

350255h-2 Flange Connection Double Convoluted Rubber Bellows / Air Spring Isolator W/O Rings

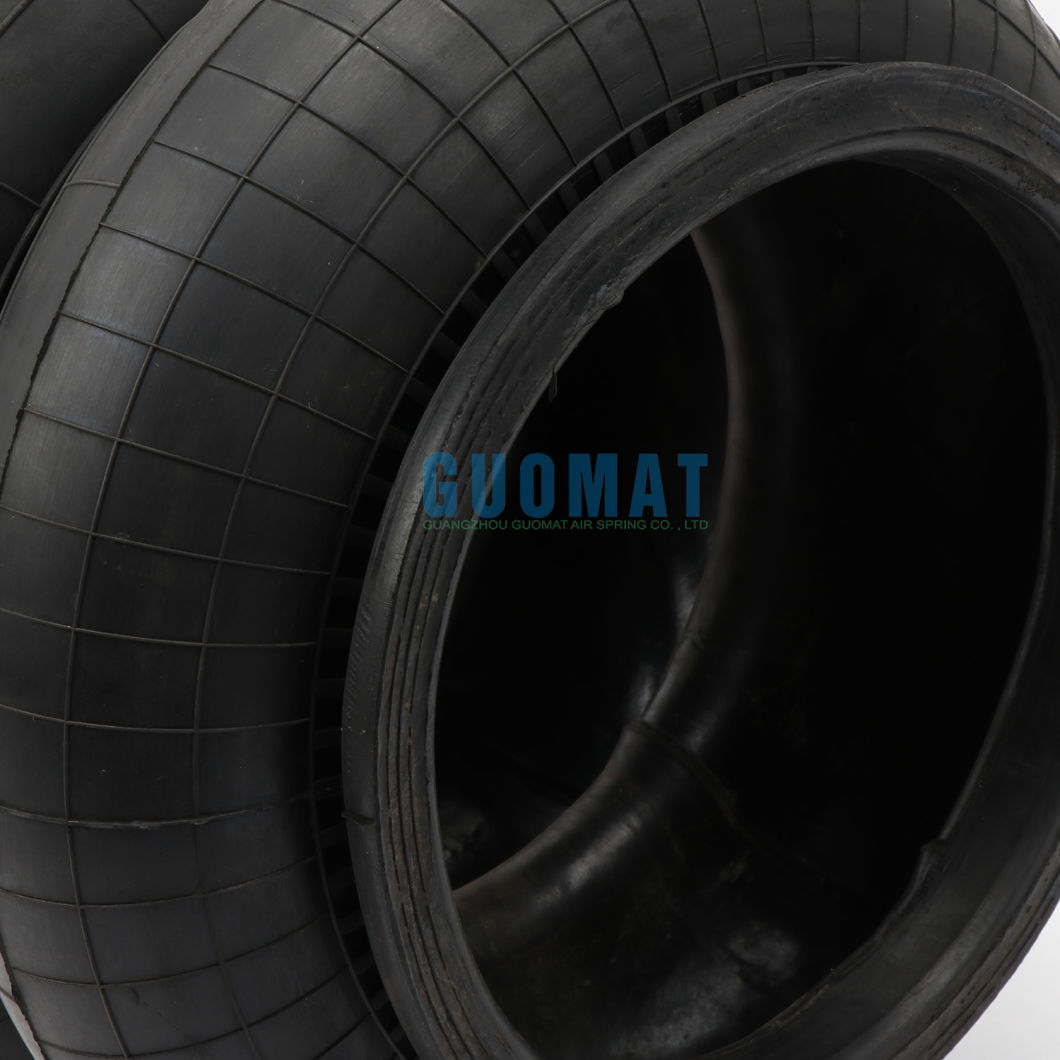

350255h-2 Flange Connection Double Convoluted Rubber Bellows / Air Spring Isolator W/O Rings
