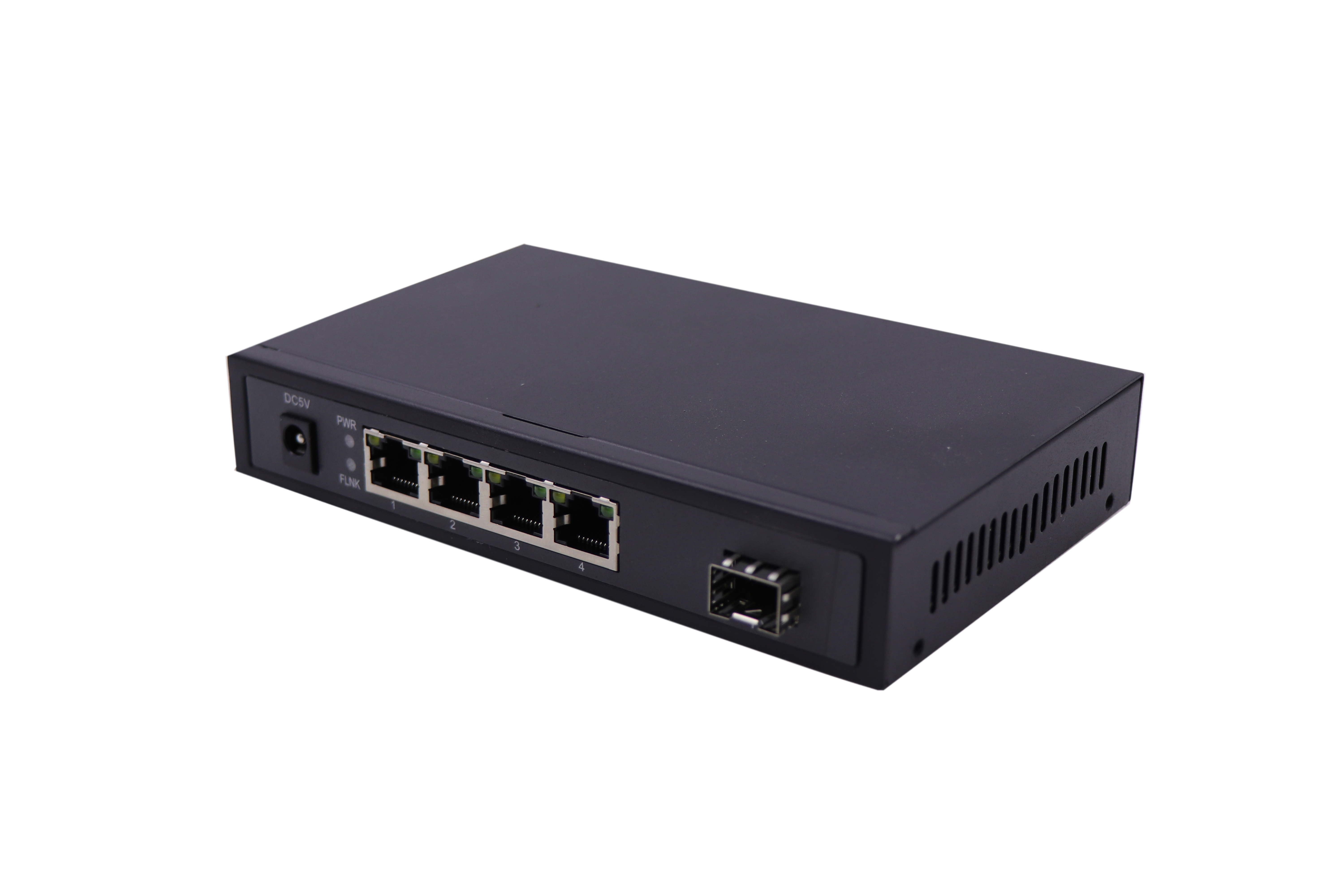

Unmanaged 10/100Mbps Fiber Optic Ethernet Switch With Four RJ45 And One SFP Fiber
Introduction
TA714-FE/XX 1 fiber to 4 UTP fiber optic ethernet switch uses SFP
fiber modules which supports multimode or single mode dual fiber,
bi-directional single fiber. The transmission distance is 2km max
on MMF and 100km max on SMF.
Key Features
1 x SFP fiber port
4 x10/100M auto-sensing Half/Full duplex RJ45 ports
Excellent cooling system with unique HIC solution
Follow control and broadcast storm control
IEEE802.3/u/x compliant
Conspicuous LED indicators for power/link diagnose/data
50,000 hours MTBF
Specification
Standard | IEEE802.3, IEEE802.3u, IEEE802.3x |
Protocol | CSMA/CD |
Fiber | 1 x SFP fiber port |
Distance | Single fiber SM: 20-100km, Dual fiber MM: 550m, Dual fiber SM:20-100km |
Optical interface | LC, SC (depend on the SFP module) |
Ethernet Interface | 4 x MDI/MDIX RJ45 ports |
Power Supply | DC5V 1A (external power) |
Operating Temperature | 0℃～+50℃ |
Storage Temperature | -30℃～+60℃ |
Humidity | 5%~90% non-condensing |
Dimension | 160mm ×95mm ×28mm |
Weight | 0.65 kg (G.W) |
Application
Where 1 FX needs to be extended to several copper ports
1 fiber source to multi-users
Offices and work groups
Schools
Power supply stations
Order Details
TA714-FE/XX | 10/100Mbps, 1 fiber to 4 UTP, SFP slot |
TA714-FE/S20-SC | 10/100Mbps, 1 fiber to 4 UTP, single fiber, SMF, SC, 20Km |
TA714S/U-FE/S20-SC | 10/100Mbps,1 fiber to 4 UTP, single fiber, SMF, SC, 20Km |
TA712-FE/S20-SC | 10/100Mbps, 1 fiber to 2 UTP, dual fiber, SMF, SC, 20Km |
TA717-FE/S20-SC | 10/100Mbps, 1 fiber to 7 UTP, dual fiber, SMF, SC, 20Km |
TA723-FE/S20-SC | 10/100Mbps, 2 fiber to 3 UTP, dual fiber, SMF, SC, 20Km |
TA726-FE/S20-SC | 10/100Mbps, 2 fiber to 6 UTP, dual fiber, SMF, SC, 20Km |
TA732-FE/S20-SC | 10/100Mbps, 3 fiber to 2 UTP, dual fiber, SMF, SC, 20Km |
|
