8-Port 10G SFP+ Fiber Switch Unmanaged 1G/2.5G Auto-Adaptive DC12V Support OEM

8-Port 10G SFP Ethernet Fiber Switch

Features of 10G Network Switch

1. 8*10G SFP+ ports
2. Support IEEE 802.3, IEEE802.3u, IEEE 802.3ab, IEEE802.3 bz, IEEE 802.3 ae, IEEE 802.3.x
3. SFP+ port support 1.25G/2.5G/10G
4. Support Port Auto MDI/MDIX
5. Panel Indicators monitor working conditions and assist in fault analysis
6. Flow Control Mode, IEEE802.3x standard for full duplex, and back pressure standard for half duplex
7. Supports one click code dialing and three speed switching
8. Support Purge Protection: ESD: air 8KV, Contact 6KV, Class B

Specification of 10G Unmanaged Switch

Introduction to Fiber Optic Switch

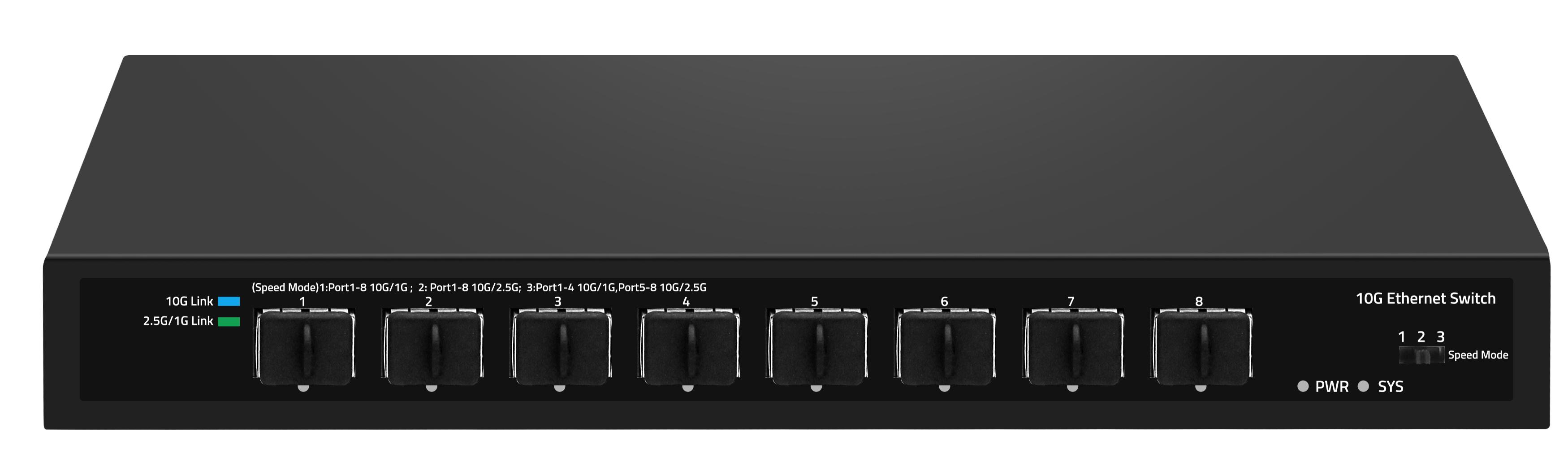

• This 8-port full 10G SFP Ethernet Switch adopts a high-quality and high-speed network chip solution with a full 10G network interface and smooth line speed forwarding.
• It is configured with 8* 10G SFP+ ports, which supports 1.25G/2.5G/10G rates. It adopts a storage and forwarding mechanism, and internally integrates a high capacity cache to ensure that all ports can achieve 10G non-blocking line speed forwarding, and adopt to more emergency situations.
• With a sturdy and durable and high strength steel shell design, the efficient heat dissipation ensures stable operation of the product.
• The switch can be widely used in security network video monitoring, hotels, campuses, large and medium-sized enterprise network engineering, and other fields.

About Olycom

• We manufacture and market fiber optic connectivity devices.
• We provide solutions and services of industrial networking, fiber optic, CCTV surveillance and fiber optic conversion and transmission.

• Din-rail gigabit industrial L2 L3 managed switch
• Fiber optic Ethernet media converter
• AHD TVI CVI Analog video fiber converter
• Optical fiber module transceiver
• CWDM/DWDM/OXC/DCI system

FAQ

Do you have any certification?

Yes, our company is ISO9001 certified.

We have CE/FCC/RoHS/E-mark/CCC certificates for our models.

What does the label look like?

There will be 2 copies for each piece of manufactured product. One is attached on the device, the other is on the packing box.

It is available in different languages and contents, so you can add your logo or model name in it.

Do you support OEM&ODM?

Yes, this is our competitive advantage.

There is a detailed introduction in the below link.

https://www.industrialnetworkswitch.com/factory.html

What incoterms do you support?

We are an EXW factory, EXW term is our focus.

Sometimes we do FOB/CIF for bulk orders, this depends on cases. Please talk with us for more information.
