Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

Categories Diesel Engines
Brand Name: XinFeng
Model Number: 2105A-3A; 2105A-6
Place of Origin: Jiangsu, China
MOQ: 1 SET
Price: $450.00-$1,200.00/Set
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Delivery Time: 1-36 Sets/60 Days; >36 To Be Negotiated
Packaging Details: Plywood Case
Certification: CE
Name: Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6
Cylinder: Multi-cylinder
Start: Manual Starting
Weight: 430KGS
Core Components: Engine
Power: 18.6 KW
Showroom Location: Pakistan
Stroke: 4 Stroke
Cold Style: Water-cooled
Dimension(L*W*H): 1140 x 620 x 1070
Warranty: One Year After the Date of Shipment
Rated Power/Speed: 1500rpm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

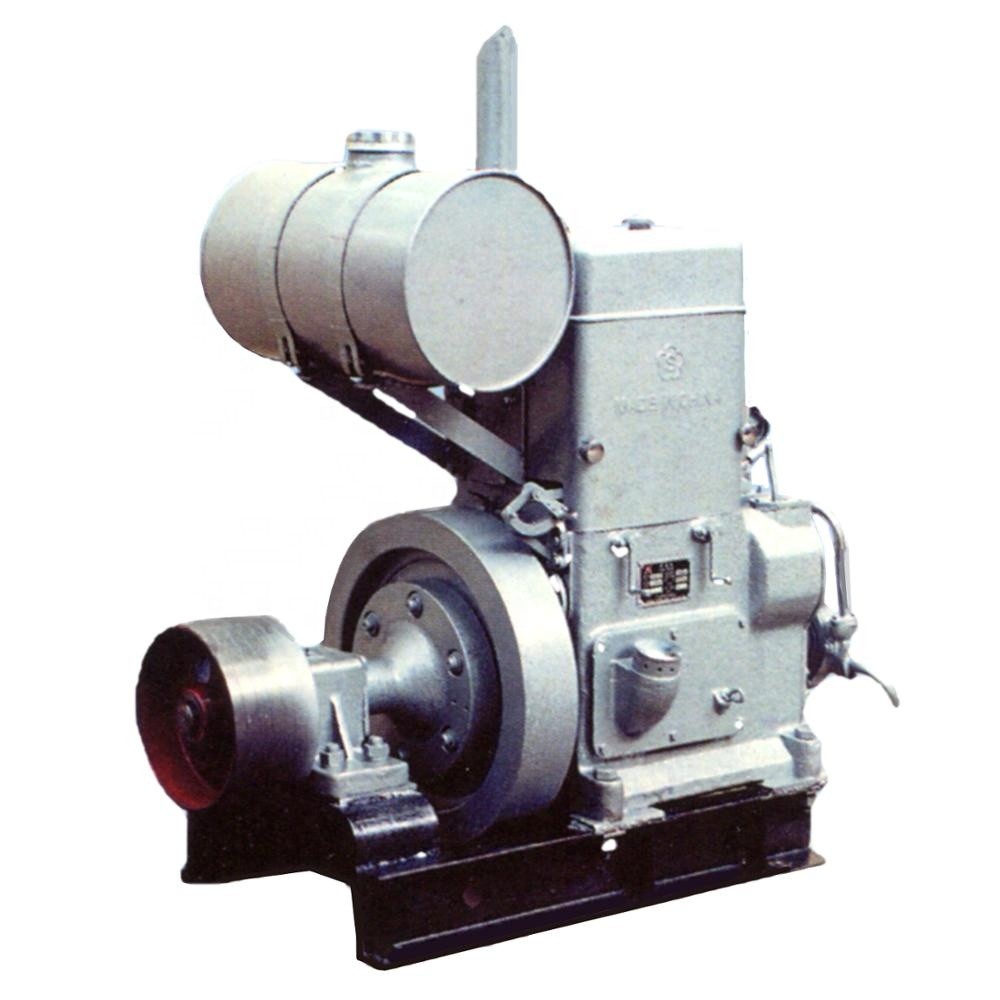

Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6

Diesel Engine, 2105A Series-Model 2105A-3A; 2105A-6


Usages

Diesel engine 2105A is an improved model of 2105 diesel engine. Its 12 hour rating is increased to 24ps or 26ps from original 20ps. Agricultural diesel engine units model 2105A-3A is a variant of 2105A diesel engine. It is applied as drive power for irrigation and drainage, processing machines of products from farm and sideline, etc.

Features

* Advanced technique after experiences of production through a long history
* Compact, rigid and reliable, easy to operate and maintain
* Steady performance, high power reserve
* With separate bearing assembly and drive pulley
* With sliding-type mounting frame.
SeriesUnit2105A
TypeVertical, wate-cooled, 4 stroke, swirl combustion chamber
No. of cylinder2
Boremm105
Strokemm130
Speedpcs/min.1500
PowerHP24
Net weightkg340

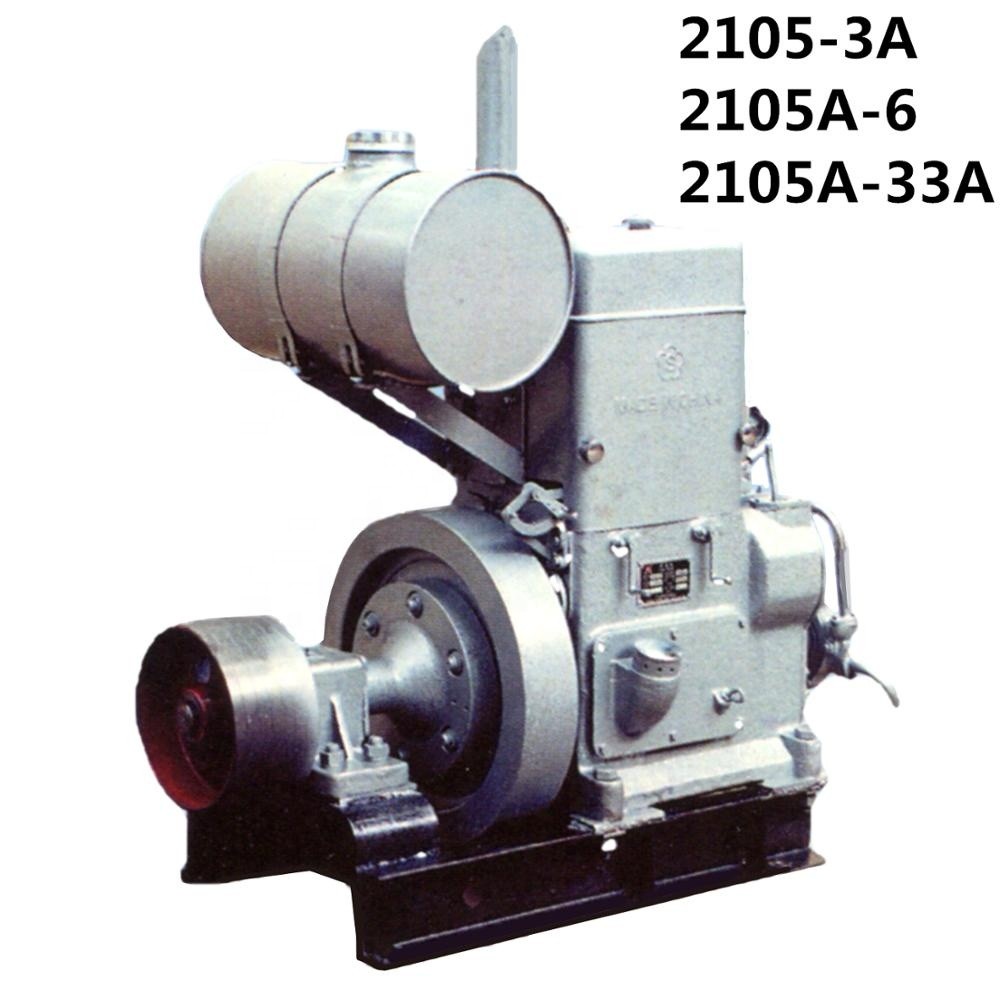

2105A-3A

Steel frame pedestal, with a separate support bearing house, flat pulley

size:Ø235 ×130mm

2105A-33A

Steel frame pedestal, with a separate support bearing house, flat pulley

size:Ø235 ×130mm

2105A-6

Steel frame pedestal, directly connecting with flywheel,falt pulley

size:Ø190×235mm
