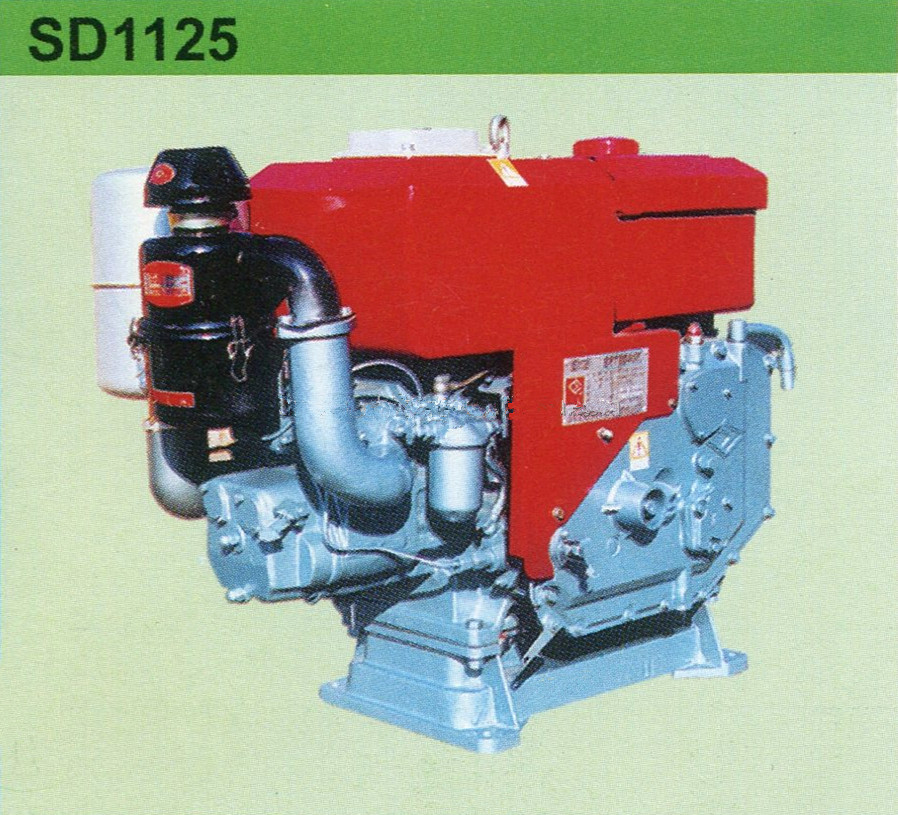

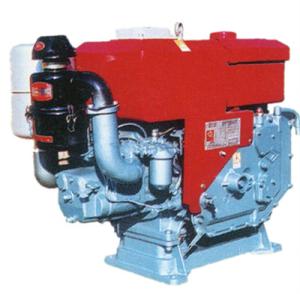

SD1125 Diesel Engine, Horizontal & Single Cylinder Type

Categories Diesel Engines
Brand Name: DURA
Model Number: SD1125
Place of Origin: Jiangsu, China
MOQ: 1 SET
Price: to be negotiated
Payment Terms: L/C, D/P, T/T
Supply Ability: 100 Sets Per Month
Delivery Time: Shipped in 30 Days After Payment
Packaging Details: Plywood Case
Name: SD1125 Diesel Engine, Horizontal & Single Cylinder Type
Fuel: Diesel
Cylinder: Single Cylinder
Dimension(L*W*H): 857*555*779
Stroke: 4 Stroke
Type: Horizontal type
Start: Cranking or Electric Starting
Cold Style: Water-cooled
Weight: 240KGS
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

SD1125 Diesel Engine, Horizontal & Single Cylinder Type

SD1125 Diesel Engine, Horizontal & Single Cylinder Type


Technical Specifications


ModelSD1125
TypeHorizontal type, single cylinder, four-stroke, water-cooling
Cylinder diameter×stroke(mm)125×120
Displacement1.473
Model of combustion chamberDirect-injection
Compressure chamber16.5
Power1 hour power20.22/2200
12 hour power18.38/2200
Specific fuel consumption≤250.2
Specific oil consumption≤0.050
Max. torque89.4
Injecting pressure19.5
Lubricating typeForce and splash
Cooling methodWater-cooling
Starting methodCranking or electric starting
Net weight(kg)240

Overall dimensions

(L×W×H)(mm)

857×555×779
