20mm 28mm 35mm Linear Stepper Motor Nema 11 Non-Captive Tr5 2 Lead Screw 0.67A 0.6kgCm

Categories Linear Stepper Motor
Brand Name: JSS-MOTOR
Model Number: 28HSL32-0674
Certification: CE, ISO9001
Place of Origin: CHINA
MOQ: 1PCS
Price: negotable
Payment Terms: T/T, Western Union,credit card, paypal
Supply Ability: 30000pcs/month
Delivery Time: 1-15days
Packaging Details: cartons
Name: Linear stepper motor
Size: Nema 11
Lead screw type: Tr5
Lead screw length: Customized
Lead distance: 2mm
phase: 2-phase
step angle: 1.8°
Rated Current: 0.67A
Motor Length: 32mm
Holding Torque: 0.6kg.cm
  • Haven't found right suppliers
  • Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
  • And this service is free of charge.
  • we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!
Submit Buying Request
  • Product Details
  • Company Profile

20mm 28mm 35mm Linear Stepper Motor Nema 11 Non-Captive Tr5 2 Lead Screw 0.67A 0.6kgCm

Linear Stepper Motor Nema 11 28mm Tr5*2 Current 0.67A 0.6kg.Cm


Size: 28*28mm

Step Angle: 1.8°

Phase voltage: 3.88VDC

Phase current: 0.67A

Phase resistance: 5.8Ω±%10

Phase inductance: 3.2mH±20%

Holding torque: 0.6kg.cm

Lead wires: 4

motor length: 32mm

Lead screw: Tr5*2

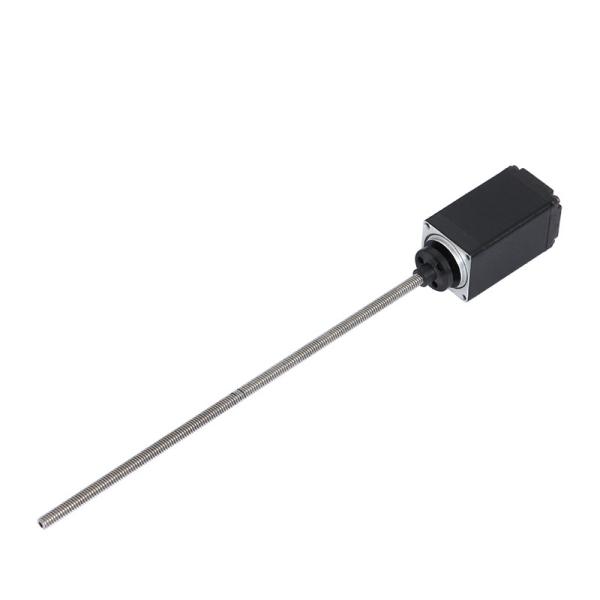

Nema 11 linear stepper motor

Lead screw dimensions:

Diameterlead distance(mm)startstep length(mm)

Suitable motor type

Tr5220.0128HSL-E

Stepper motor data sheet:

Model NoStep Angle(°)Rated Voltage(V)Rated Current (A)Phase Resistance(Ω)Phase Inductance (mH)Holding Torque (g.cm)Rotor Inertia (g.cm²)Motor Length (mm)Leads No.Motor Weight(g)
28HS28-03541.84.20.35125.84506284105
28HS28-06041.82.520.64.22.24506284105
28HS32-06741.83.880.675.83.26009324110
28HS45-06741.84.560.676.84.995012454140
28HS51-06741.83.20.679.27.2120018514200

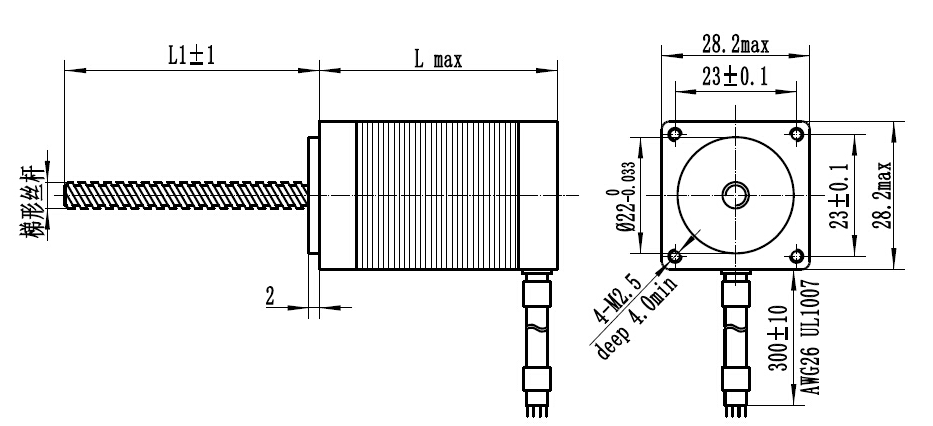

Motor dimensions:

Applications:

Stepper motor are widely applied in engraving machine, textile machine, 3D printer, medical instruments, stage light equipment, robot, CNC, music fountain, and other industrial automatic equipment.

Details Images
FAQ
1. Q: Can I get some samples?
A: We are honored to offer you samples for quality check.
2. Q: Do you have the products in stock?
A: Our products are manufactured according to your order except the normal products.
3.Q: What's the delivery time?
A: It usually takes about 7 working days,but the exact delivery time might be different for different order or at different time.
4. Q: How does your factory do regarding quality control?
A: Quality is priority. We always attach great importance to quality control from the beginning to the end of the production.
Every product will be fully assembled and carefully tested before packed.
5. Q: What's your warranty terms?
A: We offer different warranty terms for different products. Please contact with us for details.
