| Categories | Industrial LED Flood Light |
|---|---|
| Brand Name: | KHJ |
| Model Number: | KBB80, KBB100, KBB120, KBB150 |
| Certification: | CE,RoHS |
| Place of Origin: | Guangdong, China |
| MOQ: | 1pcs |
| Price: | Negotiable |
| Payment Terms: | L/C, T/T |
| Supply Ability: | 400pcs per day |
| Delivery Time: | 3-8 work days |
| Packaging Details: | 420*420*185mm |
| Product Name: | Brown Bear Series |
| Operating Voltage: | 100-277 VAC， 141-391VDC |
| Power: | 80W,,120W,150W |
| Luminaire Efficacy: | 142lm/W |
| Surge Protection: | 5KV |
| LED Driver: | Over voltage protection/short circuit protection |
| Weight: | 10.5Kg |
| Size: | 336*336*163mm |

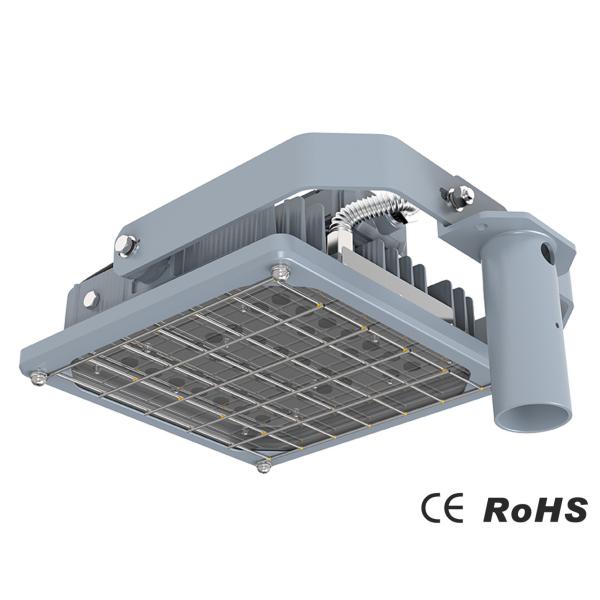

Industrial LED Flood Light, 80W to 150W,IP66, energy saving
Industrial LED Flood Light, 80W to 150W,IP66, energy saving
Highlight: Industrial LED Flood Light, 80W to 150W,IP66
Features And Benefits:
1. L70 rated for >100,000 hours.
2. 5 years full performance warranty.
3. Precision optics for high mounting heights.
4. Low glare.
5. Environmentally friendly, no mercury.
Product Important Information:
| Standards | EN 55015, EN 61547, EN 61000-3-2, EN 61000-3-3, EN 60598-1, EN 60598-2-5, EN 62031, EN 62493, IEC 62321-4, IEC 62321-5, IEC 62321-6, IEC 62321-7-1, IEC 62321-7-2, IEC 62321-8 |
| Certificate | CE, RoHS |
| Ambient temp | -40℃ ≤ Ta ≤ +65℃ |
| Ingress Protection | IP66 |
| Cable entry | M25*1.5(M20*1.5,3/4 NPT for optional) |

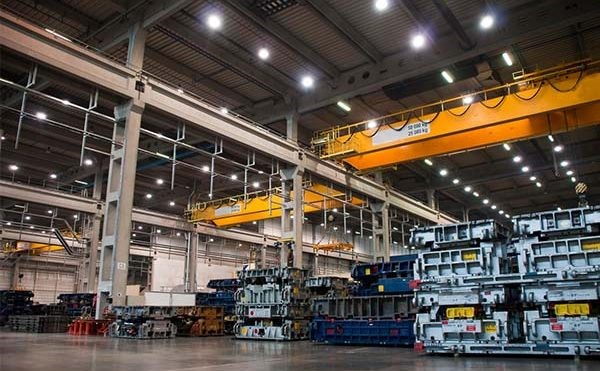

Applications:
Can be widely used for indoor and outdoor application and where Areas requiring frequent on-and-off of lights
1. Warehouse
2. Factory plant
3. Cement plants
4. Other outdoor and indoor safety area
Ordering information:
| P/N | Operating Voltage(V) | Luminous Flux(lm) | Power(W) | CRI | Color Temp. | CCT(K) |
| KBB80*WM-E | 100-277 AC (141-392 DC) | 10500 | 80 | 70 | Warm white | 3000±300 |
| KBB80*NH-E | 11340 | 80 | 70 | Natural white | 4000±300 | |
| KBB80*NH-E | 11340 | 80 | 70 | Natural white | 5000±300 | |
| KBB80*CH-E | 11340 | 80 | 70 | Cool white | 5700±300 | |
| KBB100*WM-E | 13125 | 100 | 70 | Warm white | 3000±300 | |
| KBB100*NH-E | 14175 | 100 | 70 | Natural white | 4000±300 | |
| KBB100*NH-E | 14175 | 100 | 70 | Natural white | 5000±300 | |
| KBB100*CH-E | 14175 | 100 | 70 | Cool white | 5700±300 | |
| KBB120*WM-E | 15750 | 120 | 70 | Warm white | 3000±300 | |
| KBB120*NH-E | 17010 | 120 | 70 | Natural white | 4000±300 | |
| KBB120*NH-E | 17010 | 120 | 70 | Natural white | 5000±300 | |
| KBB120*CH-E | 17010 | 120 | 70 | Cool white | 5700±300 | |
| KBB150*WM-E | 19687 | 150 | 70 | Warm white | 3000±300 | |
| KBB150*NH-E | 21262 | 150 | 70 | Natural white | 4000±300 | |
| KBB150*NH-E | 21262 | 150 | 70 | Natural white | 5000±300 | |
| KBB150*CH-E | 21262 | 150 | 70 | Cool white | 5700±300 |
Remarks:
1. * Stands for beam angle,including H5V5 / H6V6/FW
2. For Beam angle H5V5,the luminous flux will be 15% less
3. For Beam angle FW,the luminous flux will be 30% less
|
