| Categories | Cylindrical Grinding Machine |
|---|---|
| Model Number: | M1350A/B |
| Certification: | CE, ISO certification |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 15-30 days |
| Packaging Details: | The wooden case，Tin trunk ,Other seaworthy packing |
| Product Name: | M1350A/B Cylindrical Grinding Machine |
| Distance between centers: | 2000/3000/4000mm |
| Diameter ground: | 25-500mm |
| Max. weight of work piece: | 2000kg |
| Workhead spindle speed: | 50HZ:10~100 Stepless r/min |
| Wheel head Swiveling angle: | 870 r/min |
| Max. travel: | 438mm |
| Gross weight: | 13(2000)、17.4(3000)、20(4000) |
| Company Info. |
| Shanghai HD M&E Tech Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

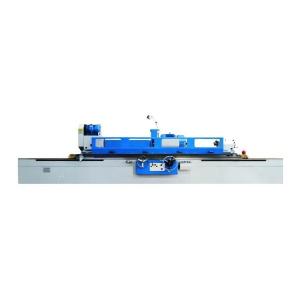

M13 Series M1350A/B Universal Heavy Duty Cylindrical Grinding Machine
This series of cylindrical grinder adopts electric and hydraulic interlocking mechanism, all moving parts, and the operation is safe and reliable. It is suitable for grinding IT6-IT5 precision cylindrical or conical rotary workpieces. Suitable for single-piece and batch production workshops.
The horizontal feed of the wheel head is driven by hydraulic
pressure to realize the micro-automatic periodic feed and rapid
advance and retreat. Coarse and fine feeding can also be done
manually.
The M1350, M1450, and M1363 series worktables and wheel head rails
adopt static rails, which can move smoothly at low speeds.
The M1350, M1450, and M1363 series wheels adopt high-rigidity main
shafts with high rotation accuracy and good rigidity. The working
head adopts frequency converter to realize stepless speed
regulation.
| Standard accessories | Optional accessories | ||
| Cooling water tank | Leveling pad iron | Wheel balancing stand | Closed center rest |
| External circle dresser | Working light | Magnetic sepatator | End face wheel dresser |
| Grinding wheel chuck and handling tools | Open center frame | Magnetic separator belt filter | Radius wheel dresser |
| Open center frame standard | center | grinding center device | |
| Balance shaft | internal round abrasives(only M14 series) | ||
Main Technical Parameters
| General capacity | ITEM | UNIT | M1350A/B | |
| Distance between centers | mm | 2000, 3000, 4000 | ||
| Center height | mm | 270 | ||
| Dia. Ground(O.D) | mm | 25-500 | ||
| Max. length ground(O.D) | mm | 2000, 3000, 4000 | ||
| Max. weight of work piece | kg | 2000 | ||
| Work head | Center taper | MT | 6 | |
| Spindle speed | r/min | 50HZ:10~100 Stepless | ||
| Wheel head | Swiveling angle | r/min | 870 | |
| Wheelhead rapid travel | mm | 100 | ||
| Max. travel | mm | 438 | ||
| Hand feed per. | rev | Rough 4/finish 0.5 | ||
| Hand feed per. | gra | Rough :0.02 finish :0.0025 | ||
| Wheel size (ODxWxID) | mm | 750x75x305 | ||
| Peripheral velocity | m/s | 35 | ||
| Table | Hand feed per. | rev | 5 | |
| Max. swiveling angle of table | Cockwise | ° | 2°(2000,3000),1° (4000) | |
| Anticlockwise | ° | 5° (2000),3° (3000) 2°(4000) | ||
| Longitudinal speed range of table | m/min | 0.1-3 | ||
| Tailstock | Center taper | MT | 6 | |
| Quill travel | mm | 70 | ||
| Motor | Wheelhead motor power | kW | 15 | |
| Workhead motor power | kW | 7.5 | ||
| Machine | Gross weight | t | 13(2000),17.4(3000),20(4000) | |
| Packing dimension | cm | 546 x 209x210(2000) 746 x 209x210(3000) 946 x 209 x 210(4000) | ||
