| Categories | Cylindrical Grinding Machine |
|---|---|
| Model Number: | MW1320 |
| Certification: | CE, ISO certification |
| Place of Origin: | China |
| MOQ: | 1 Set |
| Price: | Negotiation |
| Payment Terms: | T/T, L/C, Western Union |
| Supply Ability: | 50 sets per month |
| Delivery Time: | 30-45 days |
| Packaging Details: | The wooden case，Tin trunk ,Other seaworthy packing |
| Product Name: | MW1320 Cylindrical Grinding Machine |
| Distance between centers: | 500/750mm |
| Diameter ground: | 8-200mm |
| Max. weight of work piece: | 100kg |
| Workhead spindle speed: | 50HZ:25-380 Stepless r/min |
| Wheel head Swiveling angle: | 1335 r/min |
| Max. travel: | 205mm |
| Gross weight: | 3(500)，3.1(750) t |
| Company Info. |
| Shanghai HD M&E Tech Co., Ltd. |
| Verified Supplier |
| View Contact Details |
| Product List |

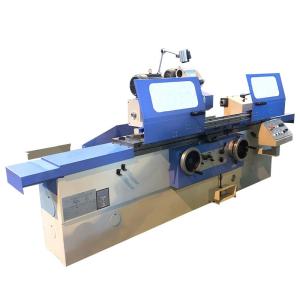

High Precision Universal M13 Series MW1320 Cylindrical Grinding Machine
This series of cylindrical grinders use electrical and hydraulic interlocking mechanisms with various moving parts, which are safe and reliable to operate. It is suitable for grinding IT6-IT5 precision cylindrical or conical rotary workpieces. It is suitable for single-piece and batch production workshops.
| Standard accessories | Optional accessories | ||
| Cooling water tank | Leveling pad iron | Wheel balancing stand | Closed center rest |
| External circle dresser | Working light | Magnetic sepatator | End face wheel dresser |
| Grinding wheel chuck and handling tools | Open center frame | Magnetic separator belt filter | Radius wheel dresser |
| Open center frame standard | center | grinding center device | |
| Balance shaft | internal round abrasives(only M14 series) | ||
Main Technical Parameters
| General capacity | ITEM | UNIT | MW1320 | |
| Distance between centers | mm | 500,750 | ||
| Center height | mm | 135 | ||
| Dia. Ground(O.D) | mm | 8-200 | ||
| Max. length ground(O.D) | mm | 500,750 | ||
| Max. weight of work piece | kg | 100 | ||
| Work head | Center taper | MT | 4 | |
| Spindle speed | r/min | 50HZ:25~380 Stepless | ||
| Wheel head | Swiveling angle | r/min | 1335 | |
| Wheelhead rapid travel | mm | 50 | ||
| Max. travel | mm | 205 | ||
| Hand feed per. | rev | Rough 2/finish 0.5 | ||
| Hand feed per. | gra | Rough :0.01 finish :0.0025 | ||
| Wheel size (ODxWxID) | mm | 500x50x203 | ||
| Peripheral velocity | m/s | 35 | ||
| Table | Hand feed per. | rev | 6 | |
| Max. swiveling angle of table | Cockwise | ° | 3° | |
| Anticlockwise | ° | 9°(500),8°(750) | ||
| Longitudinal speed range of table | m/min | 0.1-4 | ||
| Tailstock | Center taper | MT | 4 | |
| Quill travel | mm | 30 | ||
| Motor | Wheelhead motor power | kW | 6 | |
| Workhead motor power | kW | 1.1 | ||
| Machine | Gross weight | t | 3(500),3.1(750) | |
| Packing dimension | cm | 235x203x205(500) 275x203x205(750) | ||
|
